PAN ENVELOPE KEY ON & KEY OFF
The Pan Key On and Key Off Envelopes are 10
segment maximum) curves. The Key On enve-
lope regulates the Pan for the entire duration that
the notes are held pressed, while the Key Off
envelope controls Pan variations after releasing
the notes.
Zoom (F7)
Using the ZOOM option, you can enlarge the field
of vision of the envelope up to 4 times at a se-
lected Point.
Pressing the soft button repeatedly selects the
Zoom options in cyclic order (1, 2, 3, 4, 0). Zoom
0 corresponds to “actual size”.
USING THE SEGMENT OPTION (F6)
Using the SEGMENT option, you can divide the
Pan Key On & Key Off Envelope curves into sev-
eral different segments, in order to obtain a more
refined envelope across the keyboard.
Add segment insert a new segment immediately af-
ter the currently selected segment.
A maximum of up to 10 segments is
permitted.
Del segm cancels the current segment.
Loop segm loops the current segment (envelope
repetition). When it reaches the ter-
minal point, it loops back to the be-
ginning. The cycle repeats continu-
ally until key release. The initial Loop
point is represented by an arrow.
To eliminate the loop, select the seg-
ment and select “del segm.”.
3 display parameters, selected with the cursor
buttons, define the Key On & Key Off. Envelopes.
Segment Allows you to select the segments
with the Dial. The one selected cor-
responds to the flashing terminal
point.
Time Determines the duration of the Seg-
ment. The maximum segment time
is approximately 21 seconds.
Assignable values: 0 ... 127.
Level Sets the Pan offset (the difference
with respect to the central position)
at a given point. 0 represents the
centre of the stereo panorama.
Assignable values: –50 ... +50
N.B
.: the initial level of the first seg-
ment at the starting point is always
zero (it cannot be modified).
For details of how to program the Pan Key On &
Key Off Envelopes, refer to the Amplitude Enve-
lope example on page 16.18.

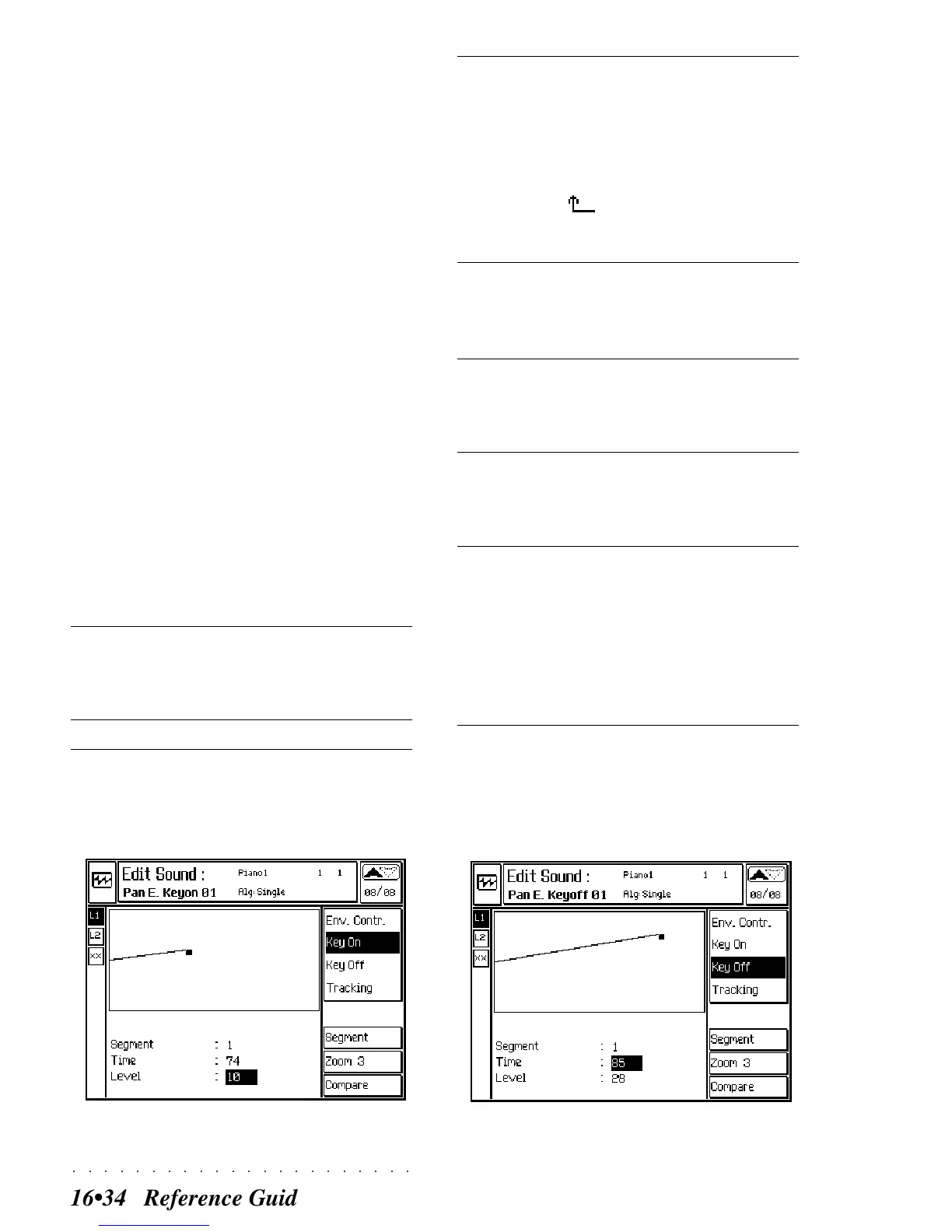

Edit Sound - programmed Pan Key On Envelope, Zoom 3 Edit Sound - programmed Pan Key Off Envelope, Zoom 3
