- Pull out the driven pulley shaft bearing from the
engine crankcase using the special tool.
Specific tooling
020376Y Adaptor handle
020358Y 37x40 mm adaptor
020364Y 25 mm guide

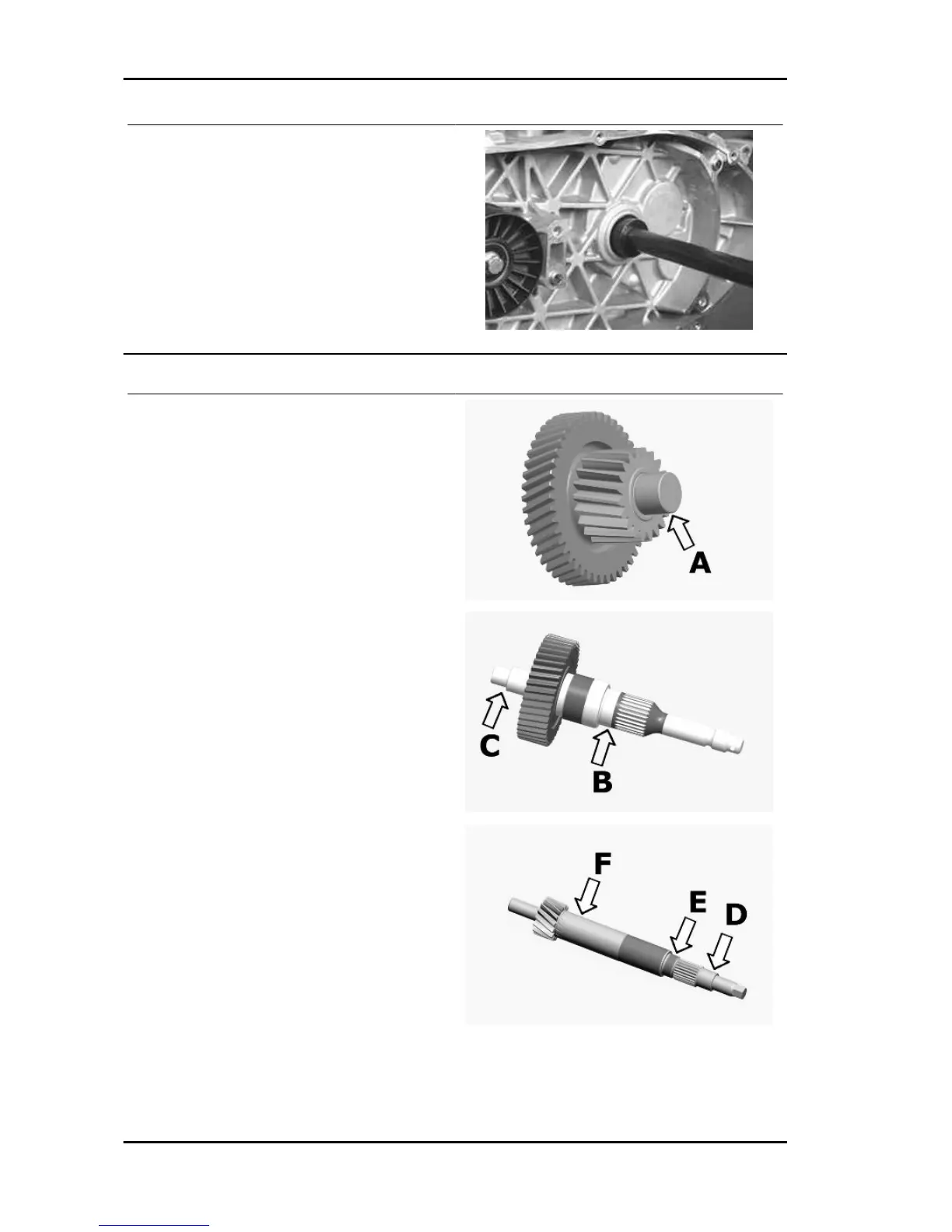

Inspecting the hub shaft
- Check that the 3 shafts exhibit no wear or defor-
mation on the grooved surfaces, at the bearings
and at the oil guards.
- In case of faults, replace the damaged parts.
Characteristic
Connection diameter for countershaft:
A = diameter 20 - 0.01 -0.02 mm
Connection diameter for wheel shaft:
Engine Fuoco 500 i.e.
ENG - 22
