Gilera Fuoco 500 - Voltage Regulator Connector; Saddle Opening Receiver Connector; Turn Indicator Control Device Connector

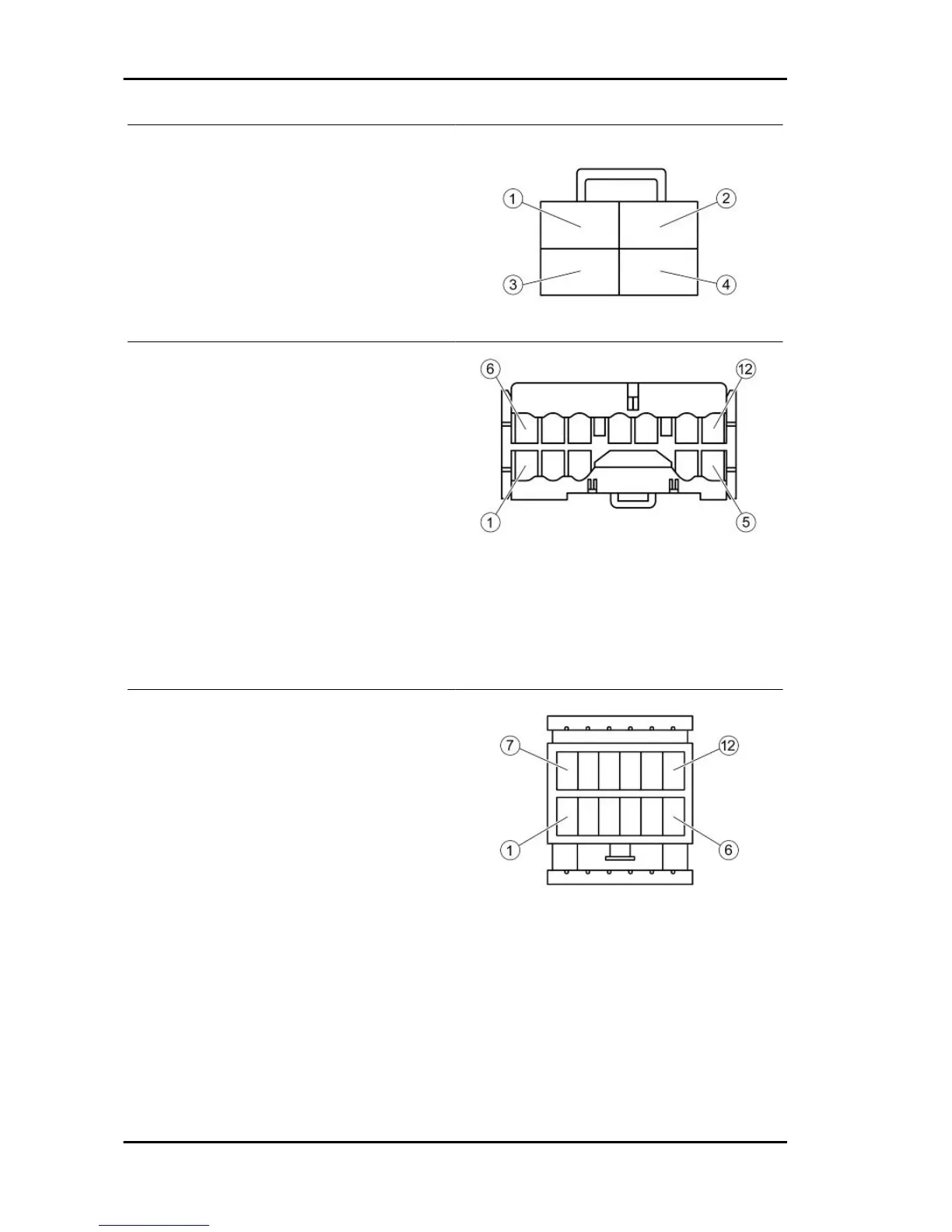

VOLTAGE REGULATOR CONNECTOR
1. +Battery (Red-Black)
2. Ground (Black)
3. +Battery (Red-Black)
4. Ground (Black)
SADDLE OPENING RECEIVER CONNECTOR
1. Aerial (Purple)
2. Saddle opening actuator (Yellow-Grey)
3. Reset (Blue-Black)
4. Battery powered (Blue)
5. Not connected
6. Live supply (Yellow-Black)
7. Ground
8. Not connected
9. Not connected
10. Not connected
11. Channels 1/3 selector (Green-Blue)
12. Alarm code (Orange-Black)
TURN INDICATOR CONTROL DEVICE CON-
NECTOR
1. Hazard switch (Brown)
2. LHS Switch (White-Pink)
3. RHS Switch (Blue-Black)
4. LHS Turn indicators (Pink)
5. RHS Turn indicators (White-Blue)
6. Battery powered (Blue)
7. Not connected
8. Live supply (Yellow-Black)
9. Ground (Black)
10. Not connected
11. Not connected
12. Not connected
