Gilera Fuoco 500 - Instrument Panel

This section è is devoted to the operations that can be carried out on the vehicle's bodywork.

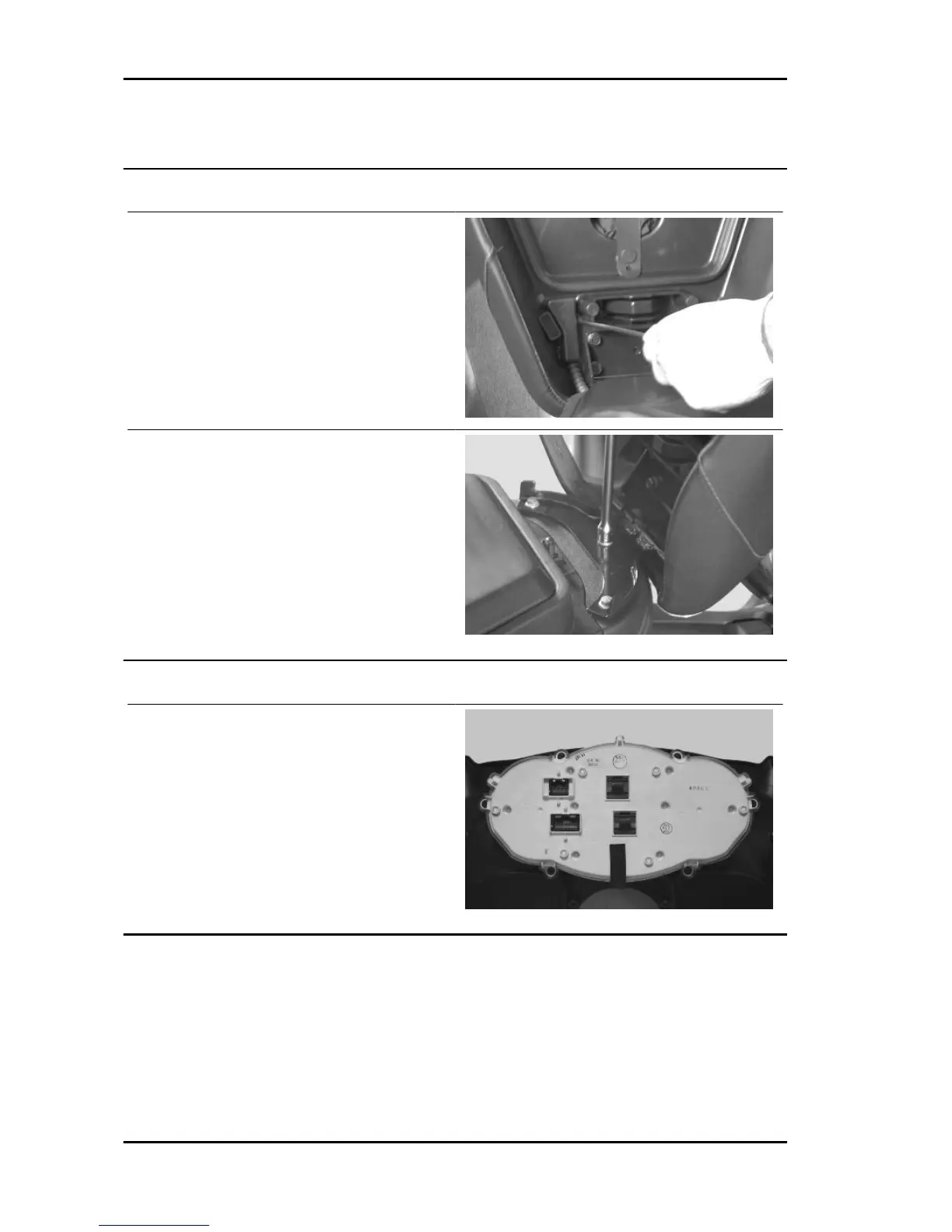

Seat
- Raise the saddle.
- Undo the screw shown in the figure, remove the
cover and disconnect the rider presence sensor
connector.
- Remove the three fixing screws shown in the fig-
ure.
Instrument panel
- Remove the front handlebar cover.
- Remove the front shield.
- Remove the shield back plate upper side.
- Unscrew the six fixing screws and remove the
instrument panel.
Chassis Fuoco 500 i.e.
CHAS - 2
