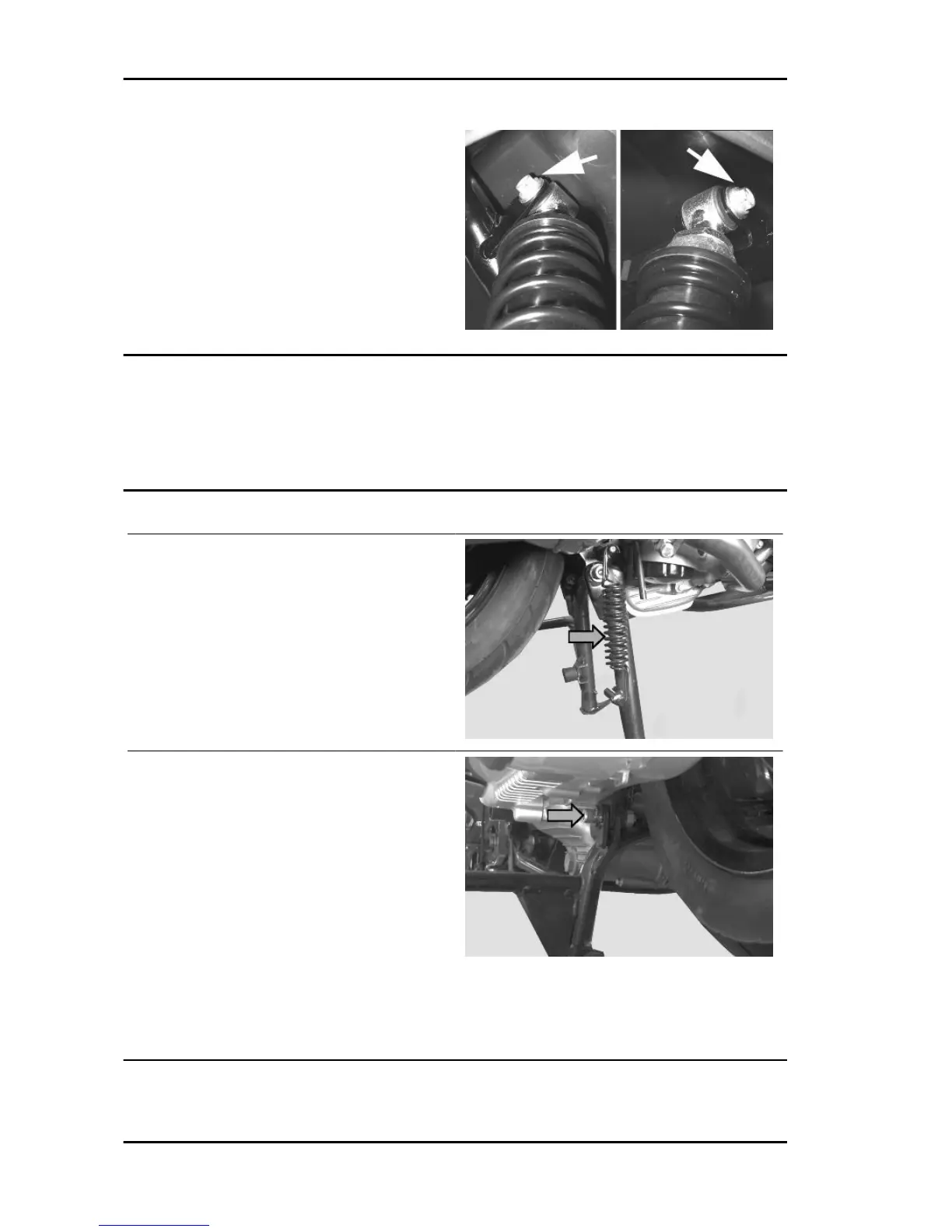

Gilera Fuoco 500 - Centre Stand Bolt

- undo the two upper nuts (one on each side) fixing
the shock absorber spring assembly to the frame
and remove the shock absorbers themselves.
Refitting
Carry out the previous operations in reverse order.
Locking torques (N*m)
Shock absorber lower clamp 33 ÷ 41 Upper shock absorber clamp 33 ÷ 41
Centre-stand
- Use a jack to support the vehicle properly.
- Remove the two stand return springs.
- Working from both sides, undo the two bolts con-
necting it to the supporting plate.
- To refit, follow the removal steps but in reverse order; be careful to tighten to the prescribed torque.
Locking torques (N*m)
Centre stand bolt 31 ÷ 39
