Gilera Fuoco 500 - Shock Absorbers; Swinging Arm Fitting

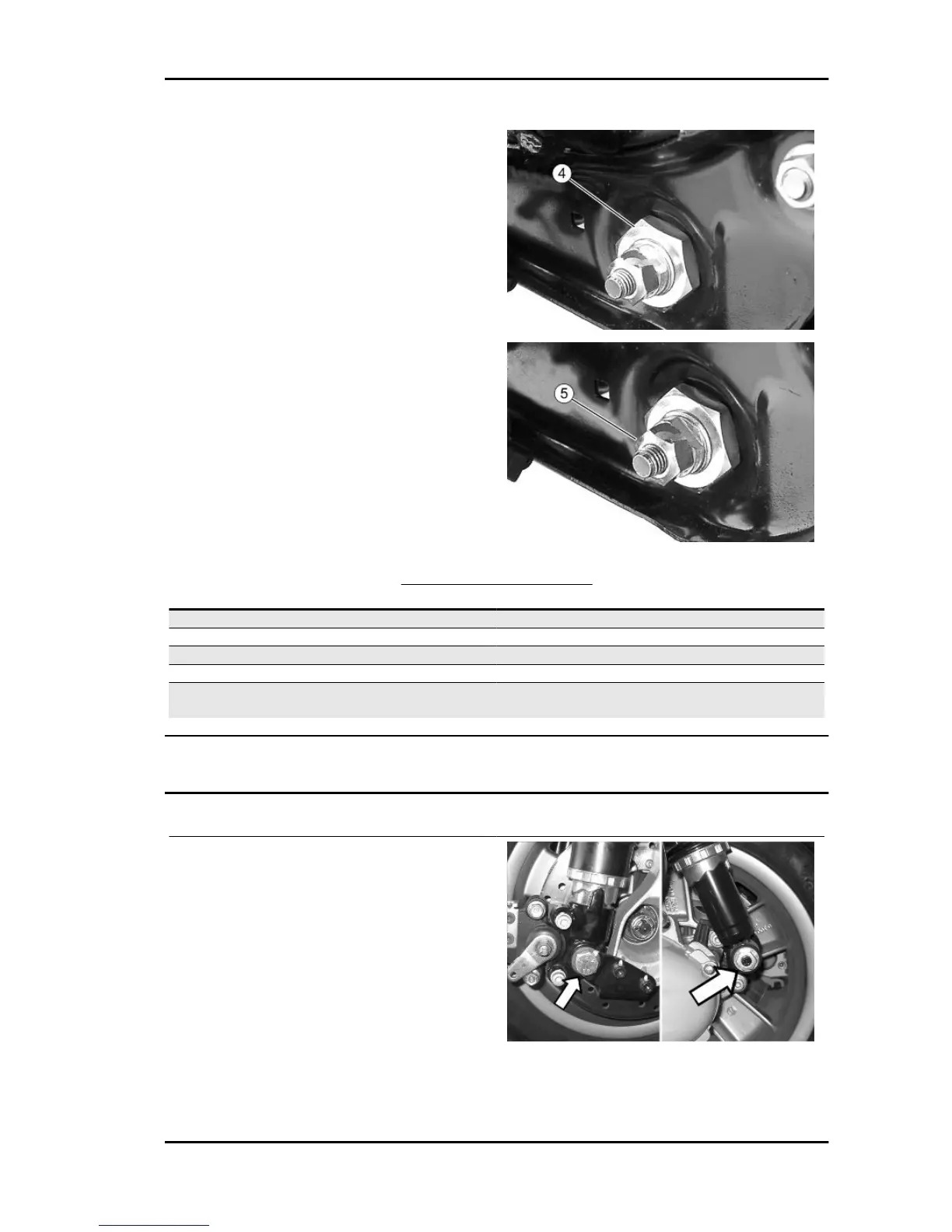

SWINGING ARM FITTING
Name Torque in Nm
Part 1 98 ÷ 118
Part 3 5 ÷ 7
Part 4 88.5 ÷ 108
Part 5 54 ÷ 60
Swinging arm, engine side / Swinging arm, frame
side, bolt
32.5 ÷ 40
Shock absorbers
Removal
Proceed as follows:
- place the scooter on its centre stand;
- lift the engine a little with a jack so as to free the
two shock absorbers;
- remove the exhaust silencer;
- undo the shock absorber spring assembly clamp-
ing screw from the support fixed to the engine on
the one side and from that fixed to the muffler on
the other;
Fuoco 500 i.e. Suspensions
SUSP - 53
