Gilera Fuoco 500 - Tilt Locking Calliper Sensor

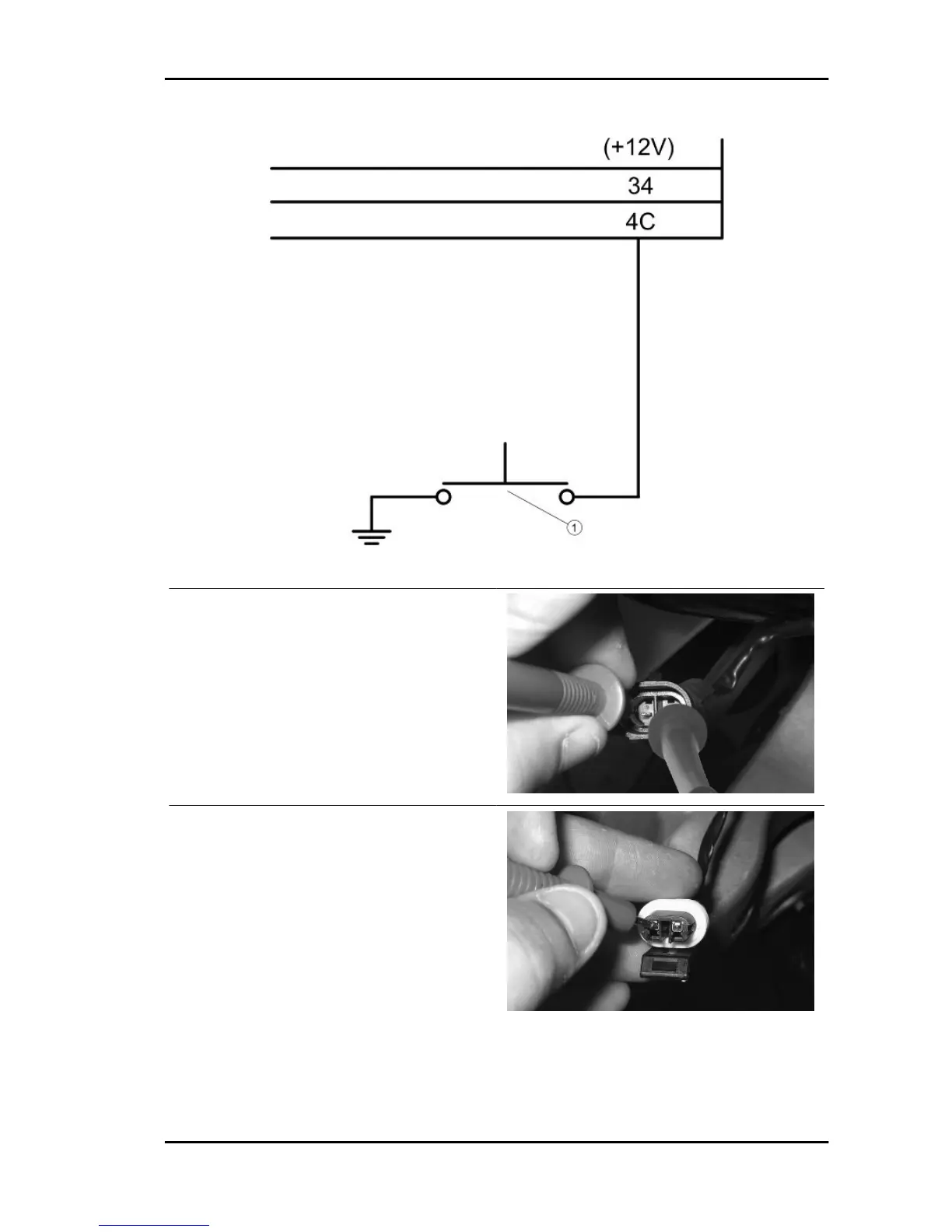

1: TILT LOCKING CALLIPER SENSOR
The tilt locking calliper sensor is a normally opened
switch. Check its correct operation with a multi-
meter.
With interface wiring disconnected from the control
unit, check the continuity between pin 34 and the
brown cable of the tilt locking gripper sensor con-
nector on the system side.
Check the continuity of the connector black cable
and an earth point on the chassis
Fuoco 500 i.e. Suspensions
SUSP - 35
