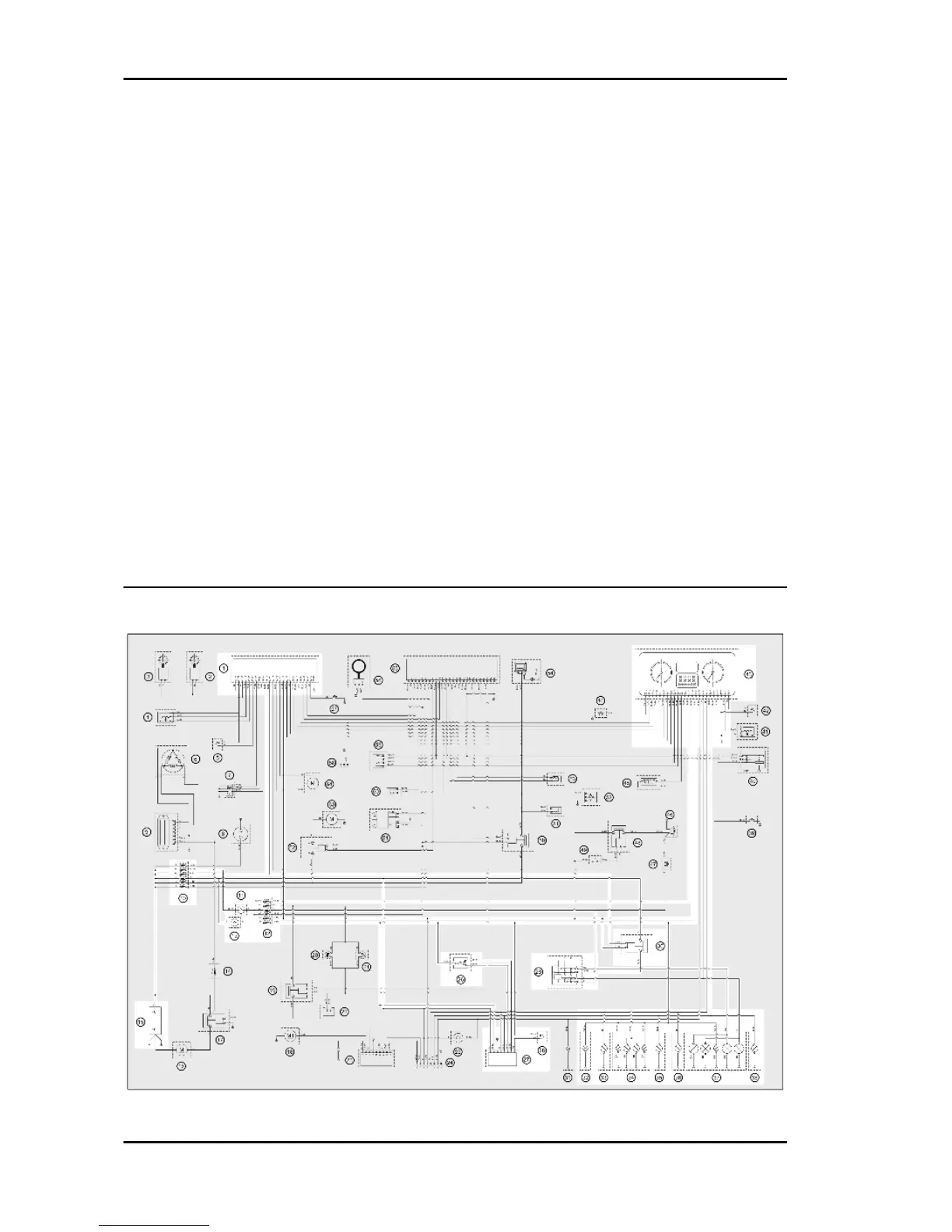

24. Wiring for antitheft device
25. Helmet compartment light switch
31. Helmet compartment light bulb
42. MODE button
43. Instrument panel
46. Horn
47. Horn button
48. Horn remote control
49. Pressure sensor
50. Injection load remote control
52. Fuel pump
55. Injection ECU
58. Diagnosis connector
61. MIU control unit power device
62. Electric fan remote control
63. Electric fan
64. Geared motor
Lights and turn indicators
KEY
Electrical system Fuoco 500 i.e.
ELE SYS - 14
