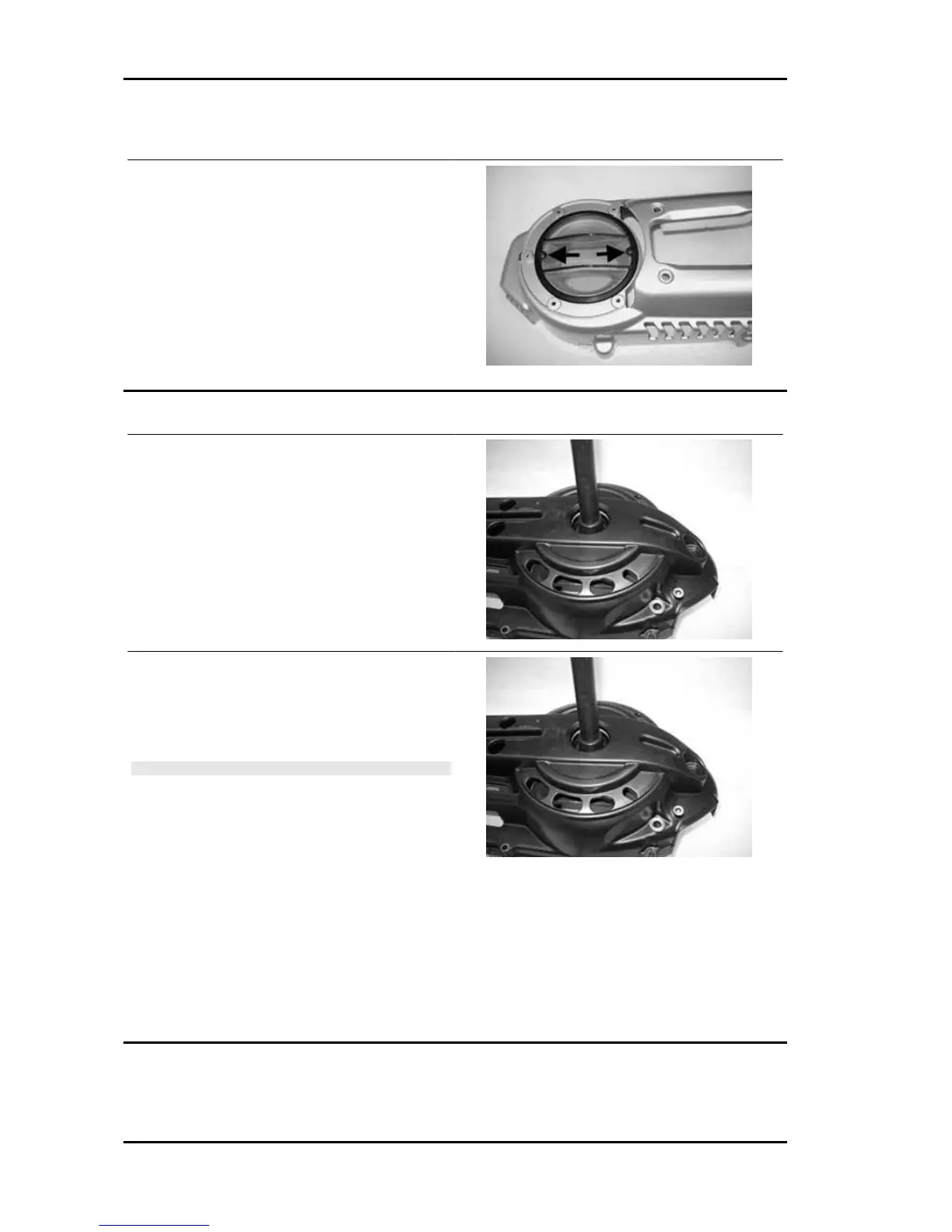

Air duct filter
- Remove the external air conveyor.
- Unscrew the 2 fastening screws shown in the fig-
ure to remove the conveyor filter.
Removing the driven pulley shaft bearing
- Remove the transmission cover.
- Remove the seeger ring.
- Place transmission cover on a wood surface and
use the special tool so that it is adequately sup-
ported.
- Pull out the bearing using the special tool.
N.B.
BELL MUST BE PLACED INTO THE TRANS-
MISSION COVER, CLOSE TO THE BEARING
SEAT AND THE WOODEN SURFACE, SINCE
WITHOUT BELL THE ENTIRE COVER STRUC-
TURE WOULD BEND. NOT ONLY IN THE AREA
OF MAXIMUM STURDINESS.
Specific tooling
001467Y002 Driver for OD 73 mm bearing
020376Y Adaptor handle
020375Y 28 x 30 mm adaptor
020439Y 17 mm guide
Engine Fuoco 500 i.e.
ENG - 4
