61. MIU control unit power device

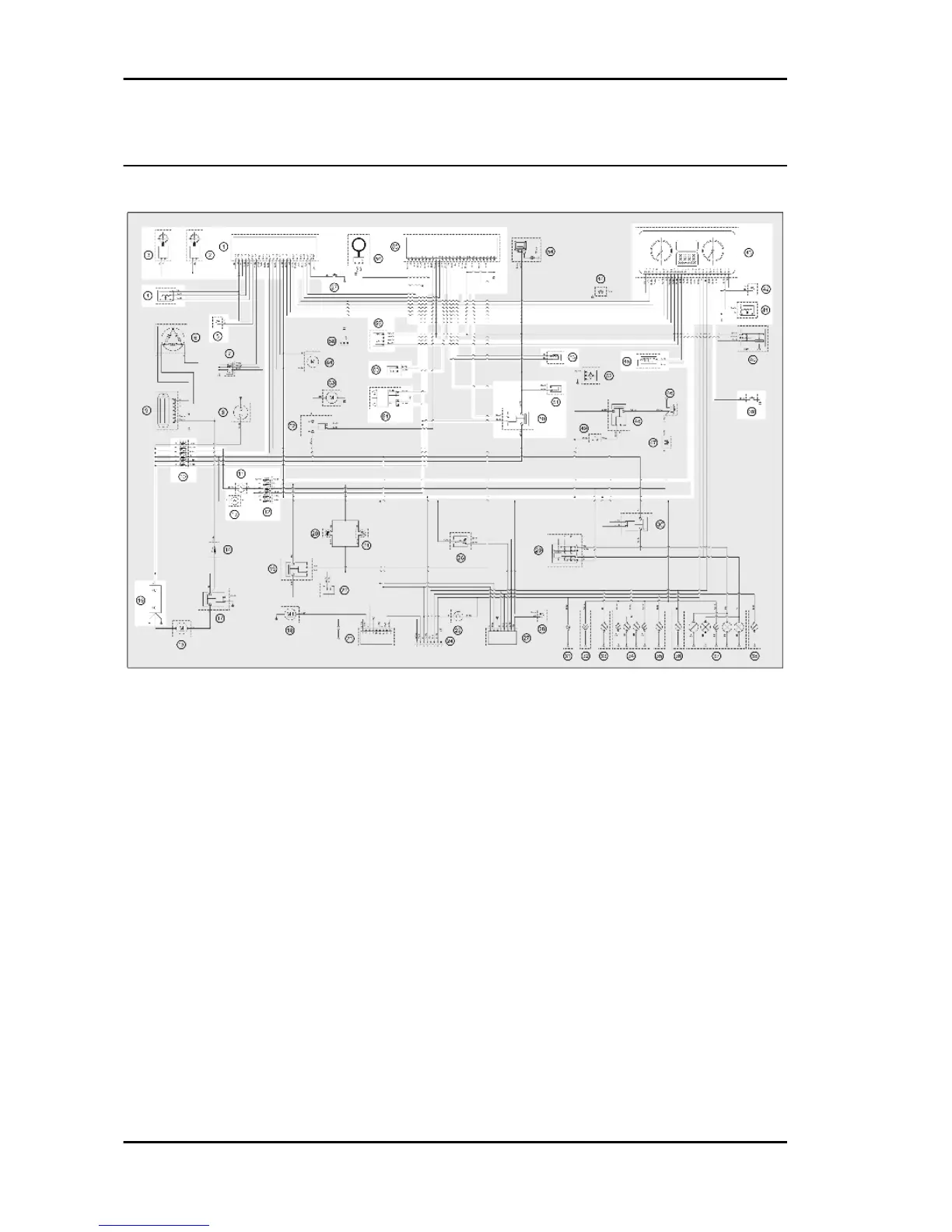

Level indicators and enable signals section
KEY
1. Parking electronic control unit
2.Right speed sensor
3.Left speed sensor
4. Potentiometer
5. Rider presence sensor
10. Main fuses
11. Key switch contacts
12. Auxiliary fuses
15. Battery
39. Oil pressure sensor
41. Fuel level transmitter
42. MODE button
43. Instrument panel
45. External temperature sensor
50. Injection load remote control
51. Injector
Electrical system Fuoco 500 i.e.
ELE SYS - 12
