Gilera Fuoco 500 - Fuse Table

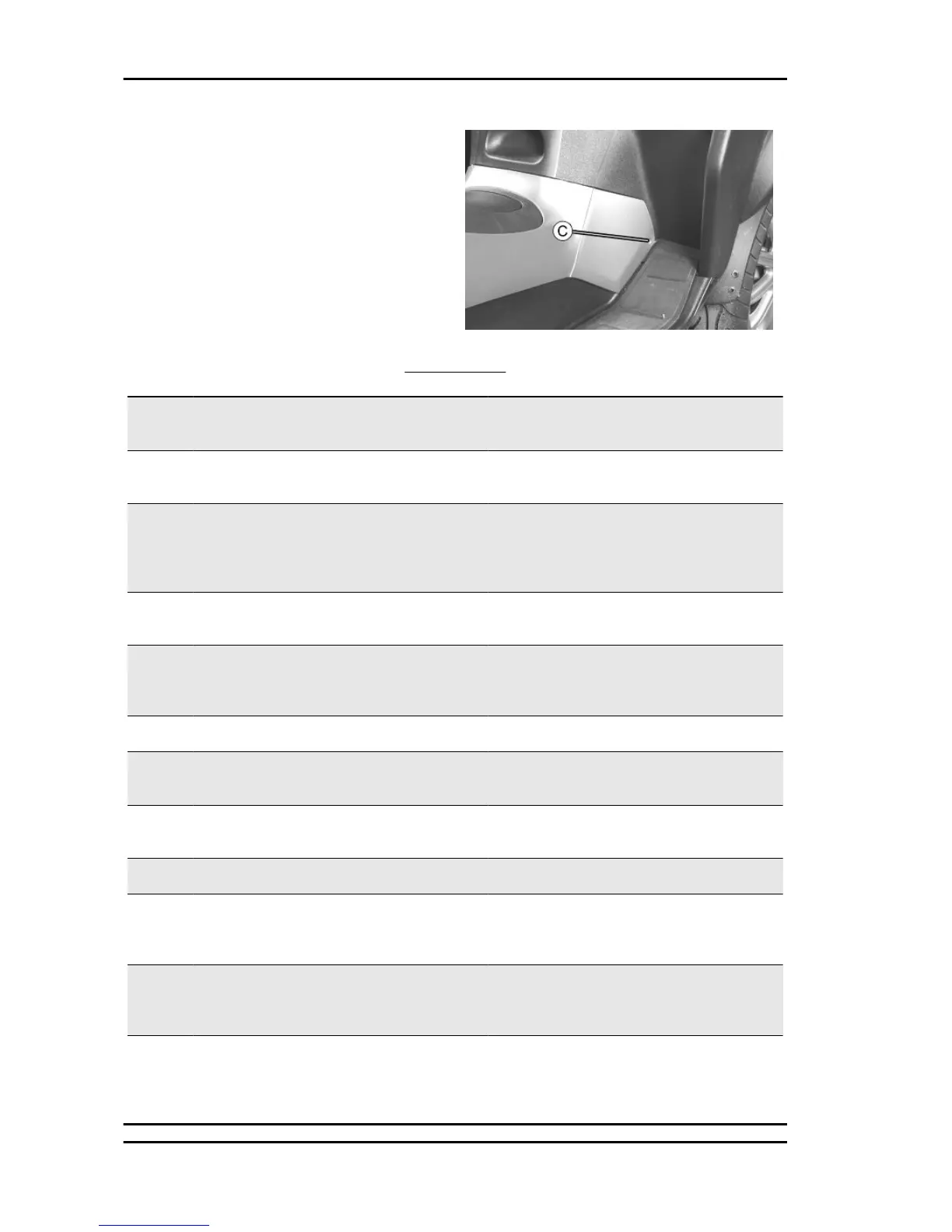

FUSE TABLE
Specification Desc./Quantity
1 Fuse No. 1 Capacity: 7.5 A
Protected circuits:Injection ECU battery
power
2 Fuse No. 2 Capacity: 15 A
Protected circuits:Battery-powered injec-
tion loads, electrical fan
3 Fuse No. 3 Capacity: 15 A
Protected circuits:Battery-powered saddle
opening switch, glove-box lighting, light
switch, turn indicator switch, antitheft instal-
lation, fuse No. 12
4 Fuse No. 4 Capacity: 20A
Protected circuits:battery-powered ECU for
parking control
5 Fuse No. 5 Capacity: 20A
Protected circuits:battery-powered fuse
No. 7, live fuses No. 8 - No. 9 - No.10 - No.
11
6 Fuse No. 6 Capacity: 15 A
Protected circuits:L.V. socket.
7 Fuse No. 7 Capacity: 7.5 A
Protected circuits:Battery-powered instru-
ment panel
8 Fuse No. 8 Capacity: 10A
Protected circuits:Live stop, start-up and
start-up enabling switch and start-up circuit.
9 Fuse No. 9 Capacity: 7.5 A
Protected circuits:live passing and horn
10 Fuse No. 10 Capacity: 7.5A
Protected circuits:Live injection ECU, im-
mobilizer aerial, electric fan remote control,
injection loads remote control
11 Fuse No. 11 Capacity: 7.5A
Protected circuits:Live ECU parking lever,
antitheft installation, instrument panel, head-
light remote control, horn
12 Fuse No. 12 Capacity: 7.5A
Protected circuits:Live turn indicator con-
trol, saddle opening switch, tail lights, panel
lighting
Electrical system Fuoco 500 i.e.
ELE SYS - 24
