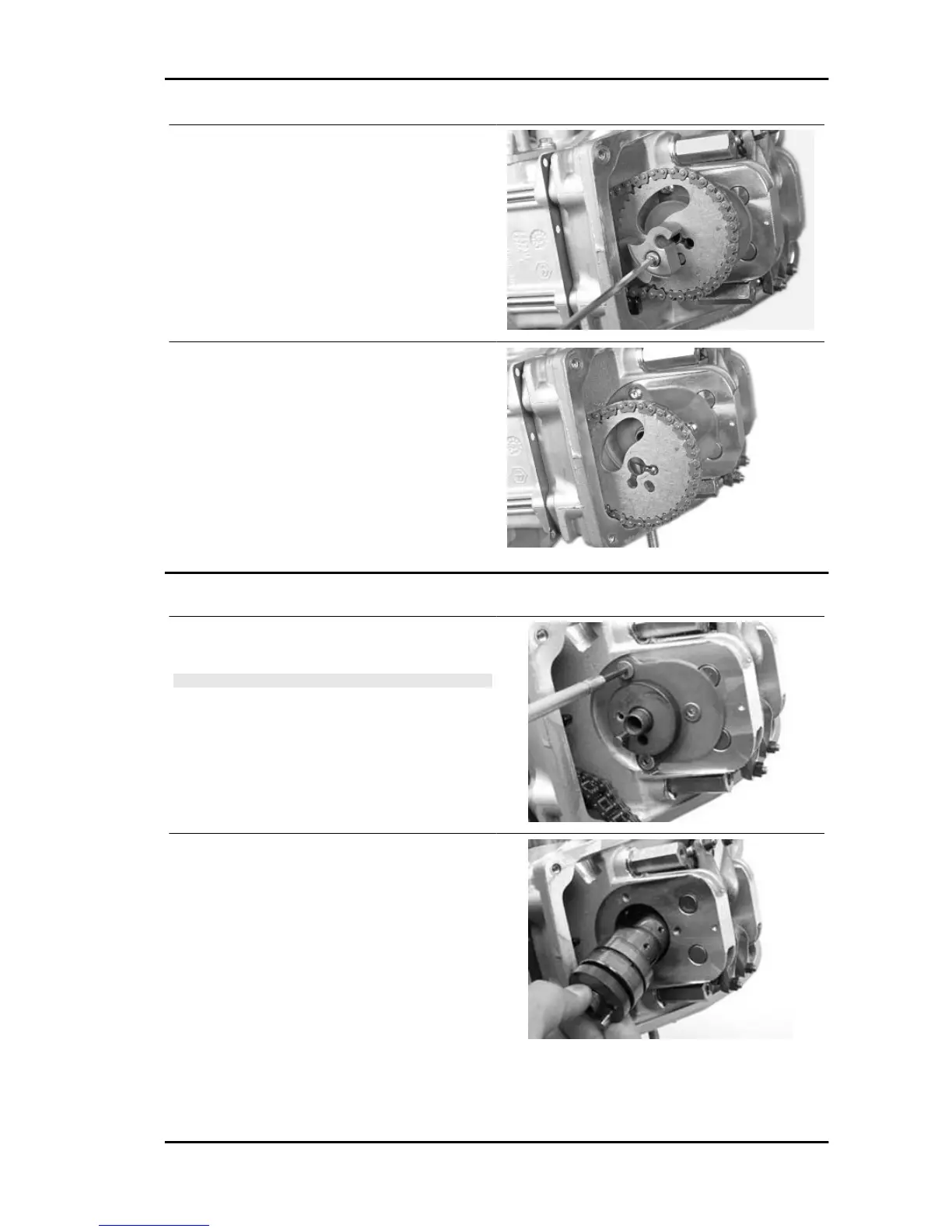

Remove the inside hexagon screw and the coun-
terweight as shown in the figure.
- Remove the timing belt rim from the camshaft.
- Remove the timing belt rim.
Removing the cam shaft
- Unscrew the 3 fastening screws and remove
camshaft retaining bracket.
N.B.
REMOVING THE FASTENING SCREWS MAY
BE DIFFICULT. BE CAREFUL NOT TO DAM-
AGE THE INSIDE HEXAGON. IF NECESSARY,
SEPARATE THE THREADS IN ADVANCE.
- Remove the cam shaft.
Fuoco 500 i.e. Engine
ENG - 51
