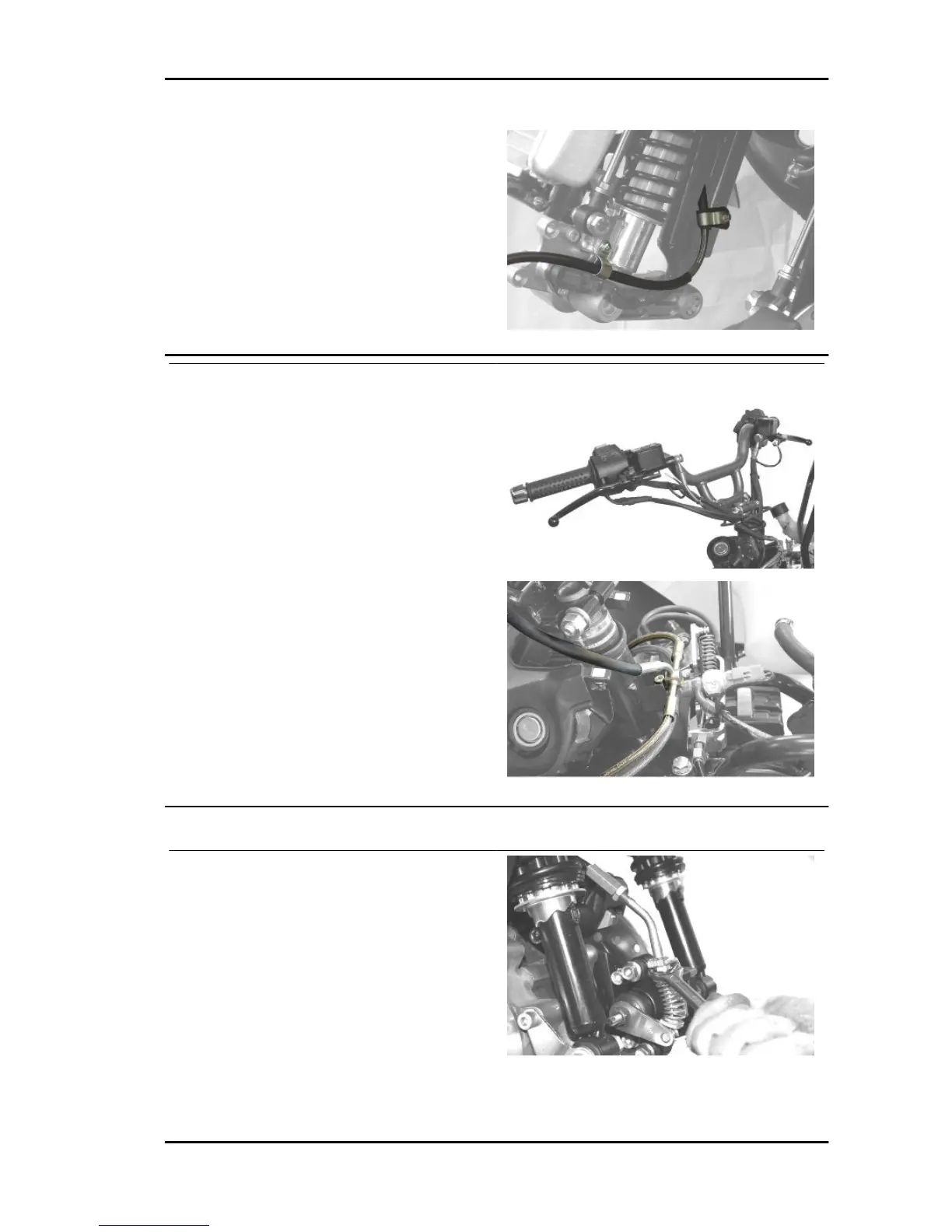

Remove front Shield.
Remove front wheel and mudguard.
Disconnect the brake pipes from the calliper and
drain the brake fluid.
Then, remove the plastic and metallic straps.
Unscrew the brake pump pipes as indicated in the
figure.
Parking brake
Remove the rear wheel.
Loosen the transmission set screw and release the
cable from the calliper.
Fuoco 500 i.e. Braking system
BRAK SYS - 13
