Inspecting the injector circuit

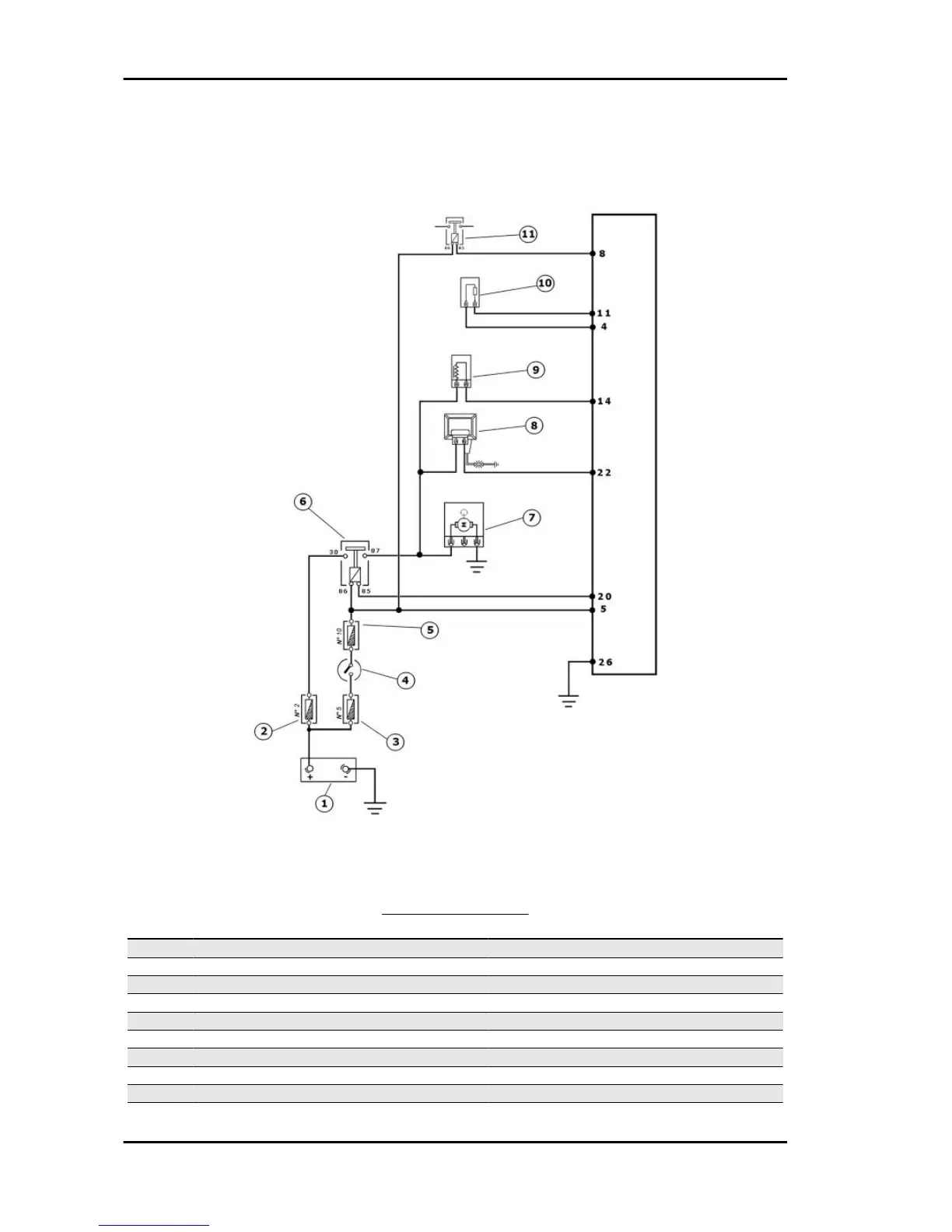

INJECTION LOADS

Specification Desc./Quantity

1 Battery 12V - 12 Ah

2 Fuse 15A

3 Fuse 20A

4 Key switch contacts

5 Fuse 7.5 A

6 Injection load remote control

7 Fuel pump

8 HV coil

9 Fuel injector

10 Lambda sensor

Injection Fuoco 500 i.e.

INJEC - 22
