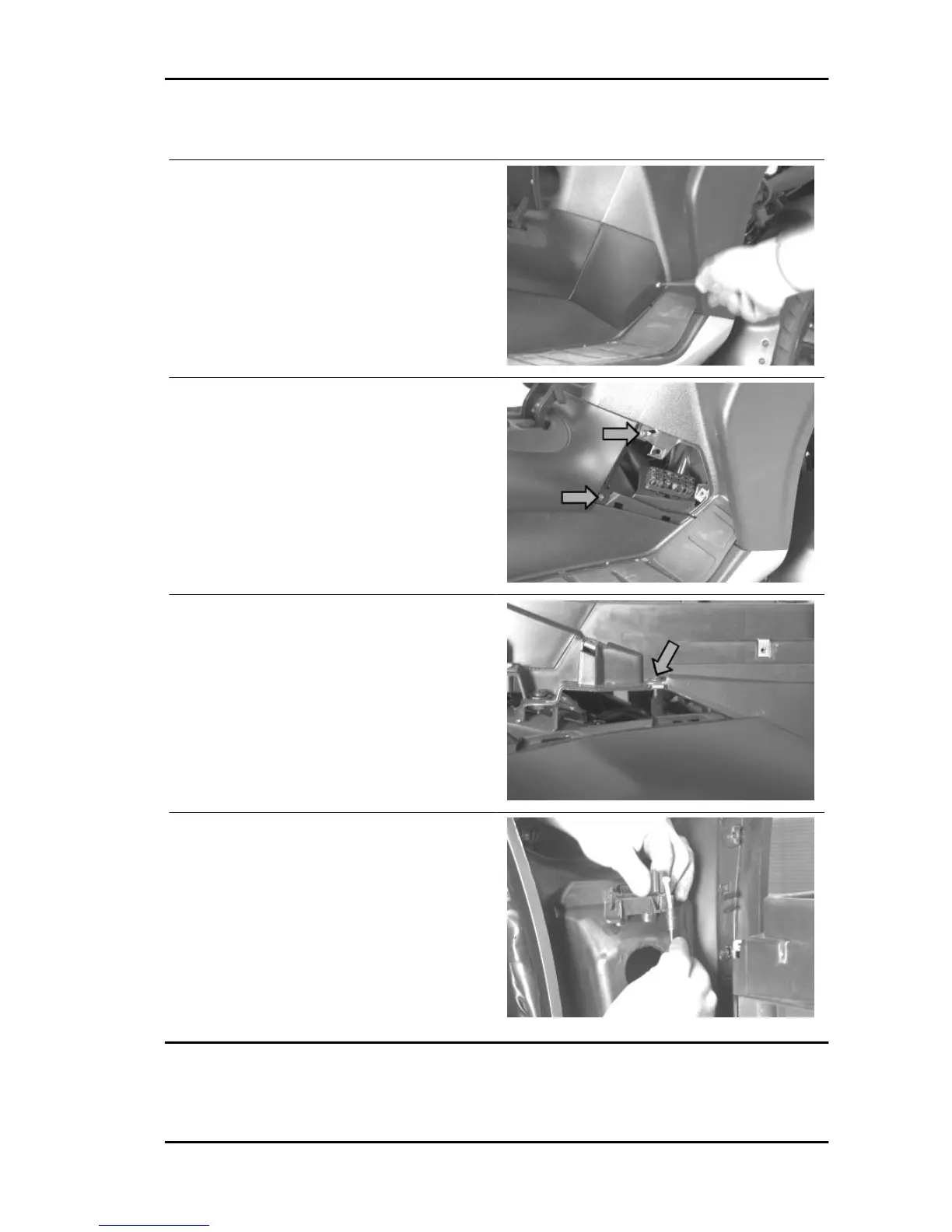

Frame central cover
- Unscrew the fuel tank cap.
- Remove the saddle.
- Remove the side fairings
Working from both sides:
- Undo the screw indicated and remove the cap lid.
- Undo the two screws.
- Undo the screw connecting it to the helmet com-
partment.
- Lift it so that the refuelling compartment opening
cable can be released.
- Remove the central frame cover.
Fuoco 500 i.e. Chassis
CHAS - 5
