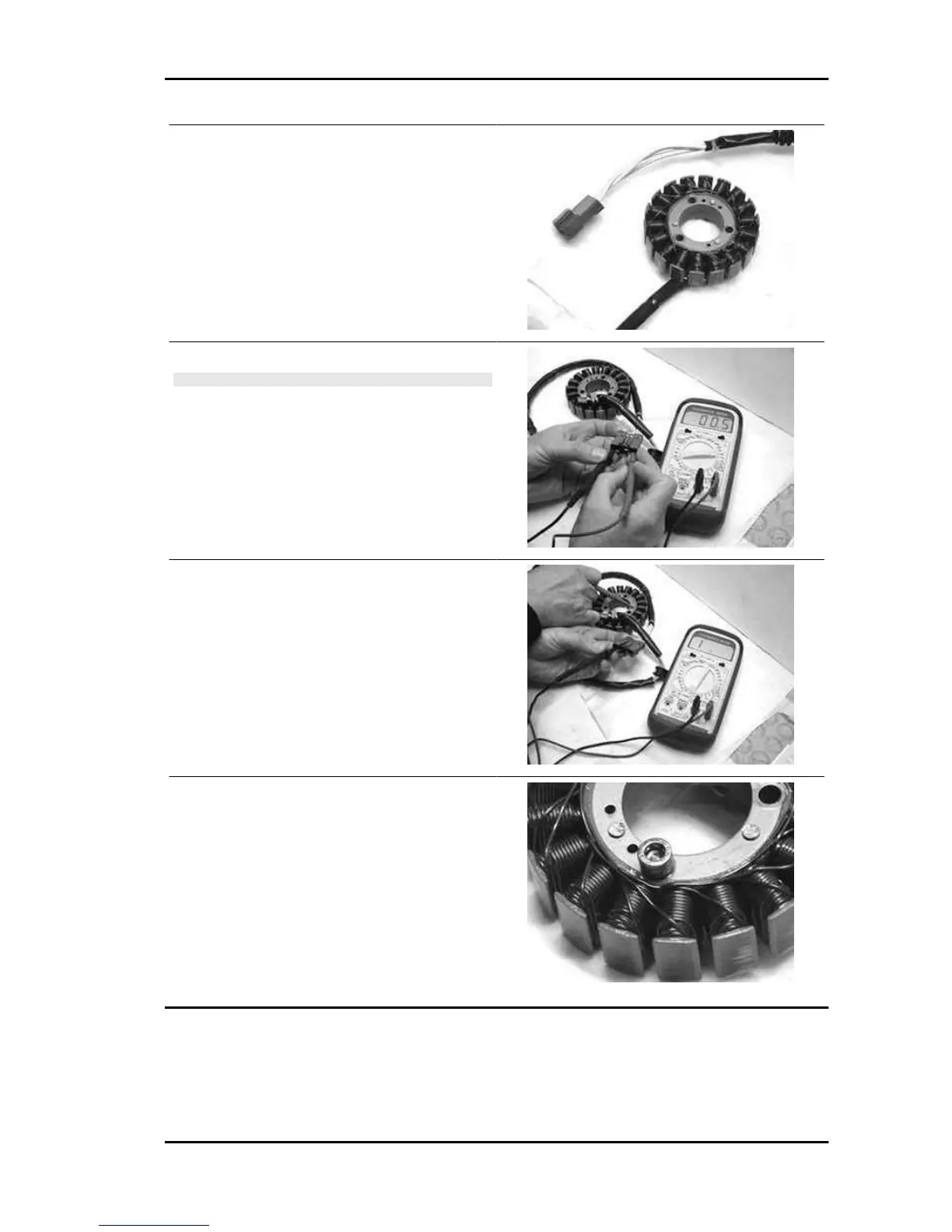

- Check the condition of the stator and of the re-
spective cable harness.
- Check the continuity between the 3 phases.
N.B.
VALUES ARE STATED AT AMBIENT TEMPER-
ATURE. A CHECK WITH THE STATOR AT OP-
ERATING TEMPERATURE MAY RESULT IN
VALUES HIGHER THAN THOSE STATED.
Electric characteristic
Resistance:
0.2 - 1 Ω
- Check the earth insulation of each phase.
- If a fault is discovered, carry out a close check of
the cable harness that contains two types of cable:
Rigid cables close to the stator and flexible cables
close to the connector.
- Check that the winding is positioned so as not to
interfere with the heads of the retaining screws.
Fuoco 500 i.e. Engine
ENG - 31
