Failure to observe the tightening torque may alter
the coupling clearance of the rotors with the pump
body.
Locking torques (N*m)
Screws fixing oil pump to the crankcase 5 - 6

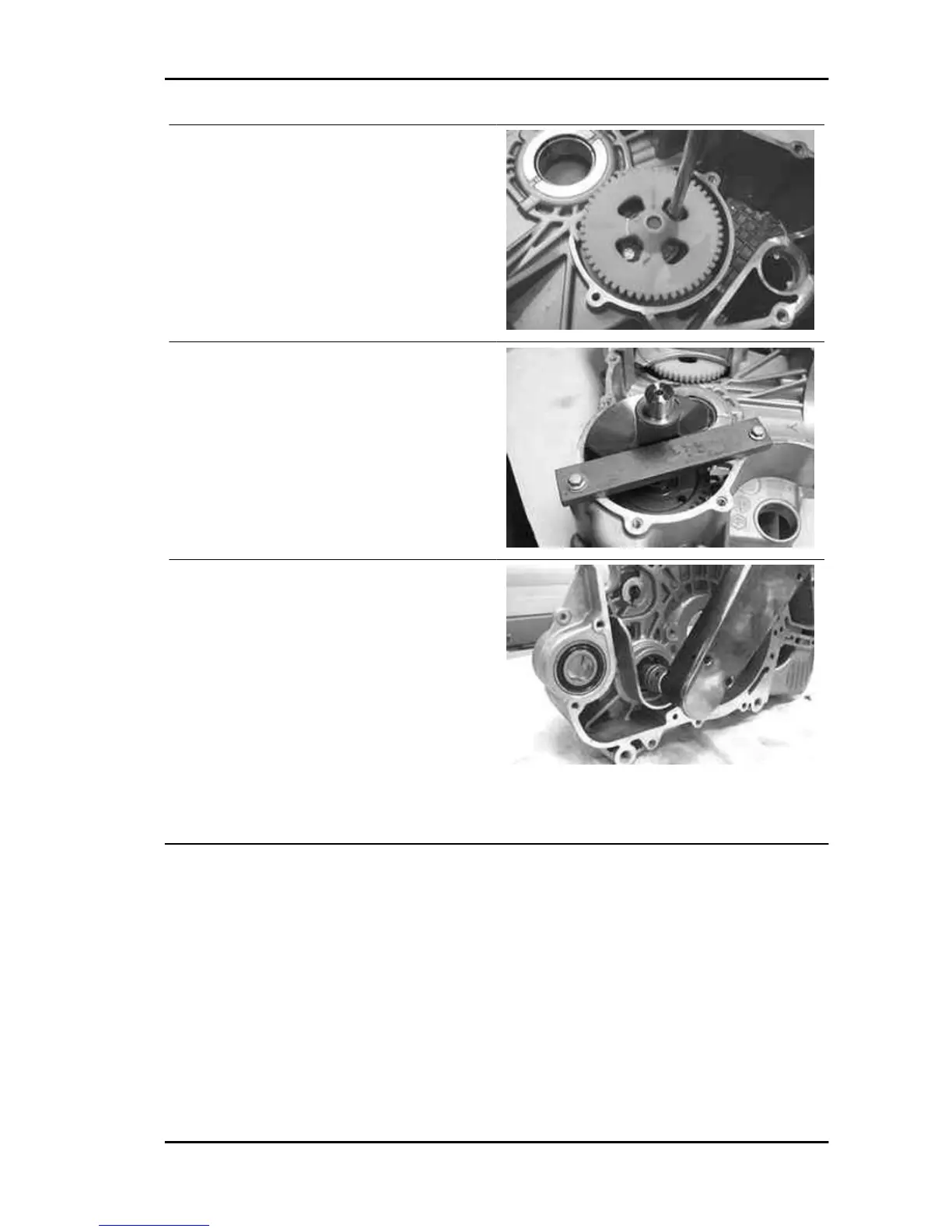

- Insert the countershaft with gearing into the fly-
wheel-side half-crankcase.
- Install the special tool in the position shown in the
figure.
Specific tooling
020479Y Countershaft lock wrench
- Keep the countershaft in position and insert the
washer with the nut.
- Tighten the nut to the prescribed torque, using
the recommended product.
- Remove the special tool.
Recommended products
Loctite 243 Medium strength threadlock
Medium Loctite 243 threadlock
Locking torques (N*m)
Countershaft fixing nut 25 - 29
Fuoco 500 i.e. Engine
ENG - 103
