- Check there is no sticking in the rotation.
- Check the axial clearance of the swinging arm on
the frame side
Characteristic
Standard clearance
0.40 ÷ 0.60 mm
Allowable limit after use:
1.5 mm
- Separate the swinging arm on the engine side
from the vehicle side arm.

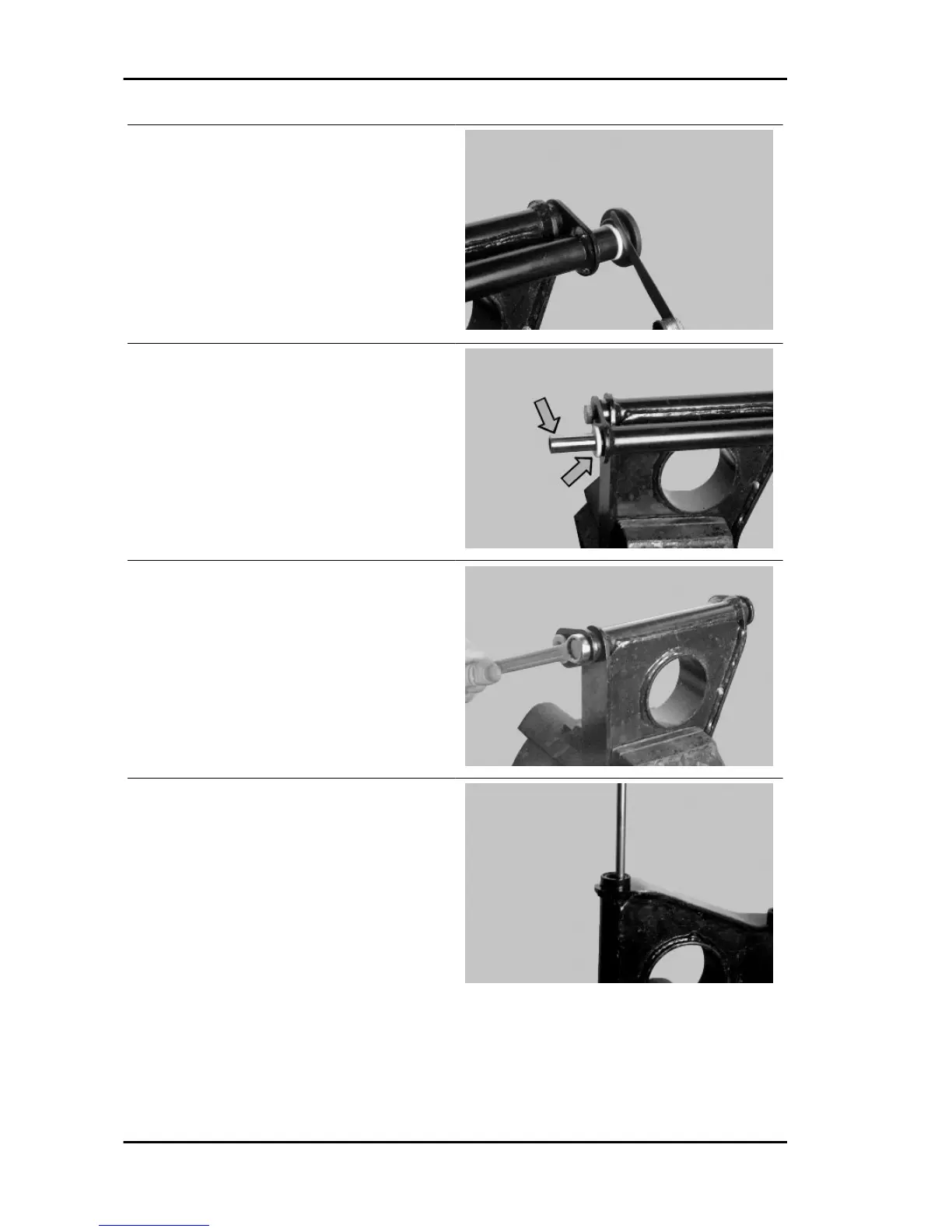

- Remove the plastic bushings and the internal
spacer shown in the photo.
- Remove the pin connecting the engine swinging
arm - frame swinging arm.
The operations below are described once but ap-
ply to both sides of the swinging arm.
- Remove the internal spacer.
- Using a suitable pin remove the roller casings as
shown in the photographs
Suspensions Fuoco 500 i.e.
SUSP - 50
