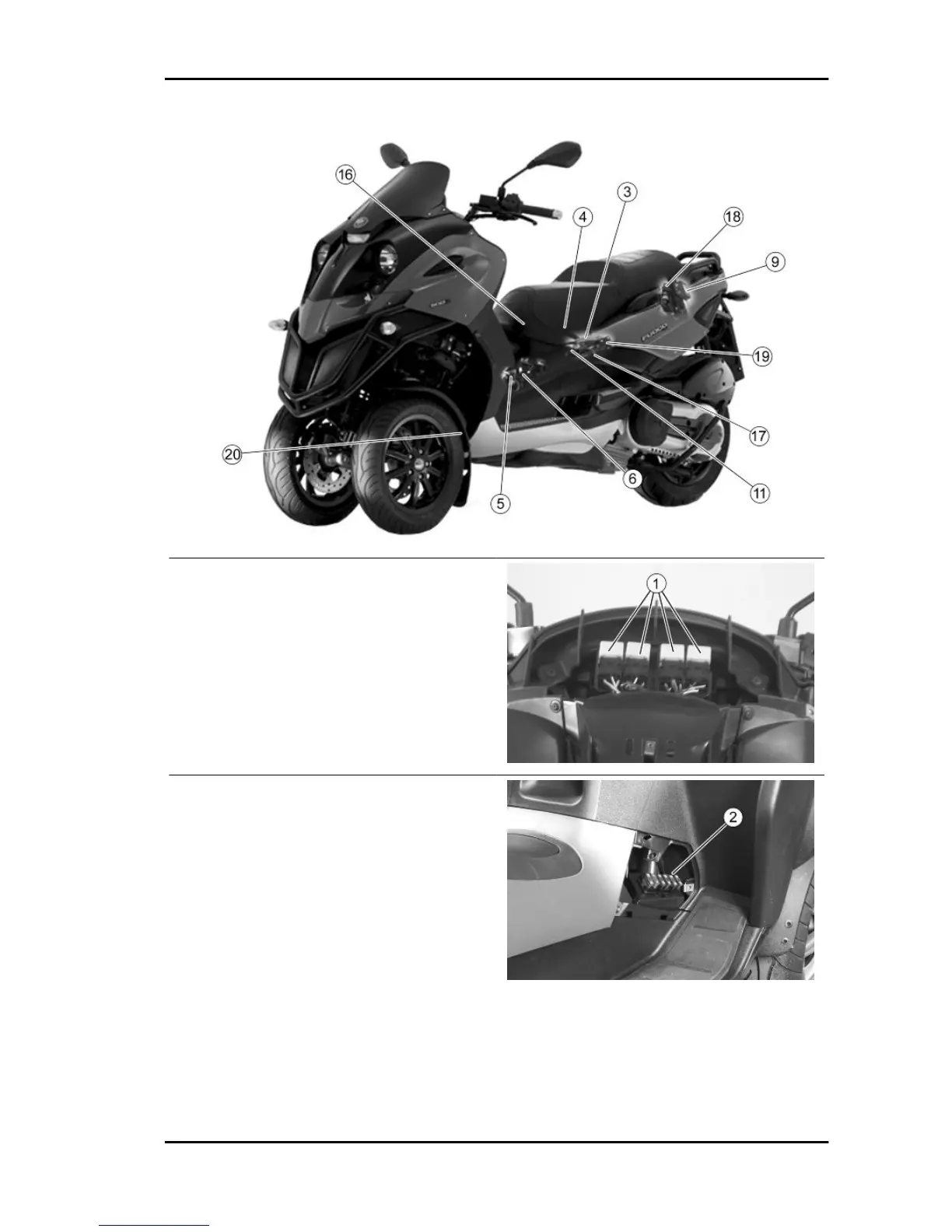

1. Relays for lights/ horn/ injection load/ electric

fan: remove the front shield to reach these relays.

2 - Auxiliary fuses: remove the footrest flap to

reach these fuses.

Fuoco 500 i.e. Electrical system

ELE SYS - 5
