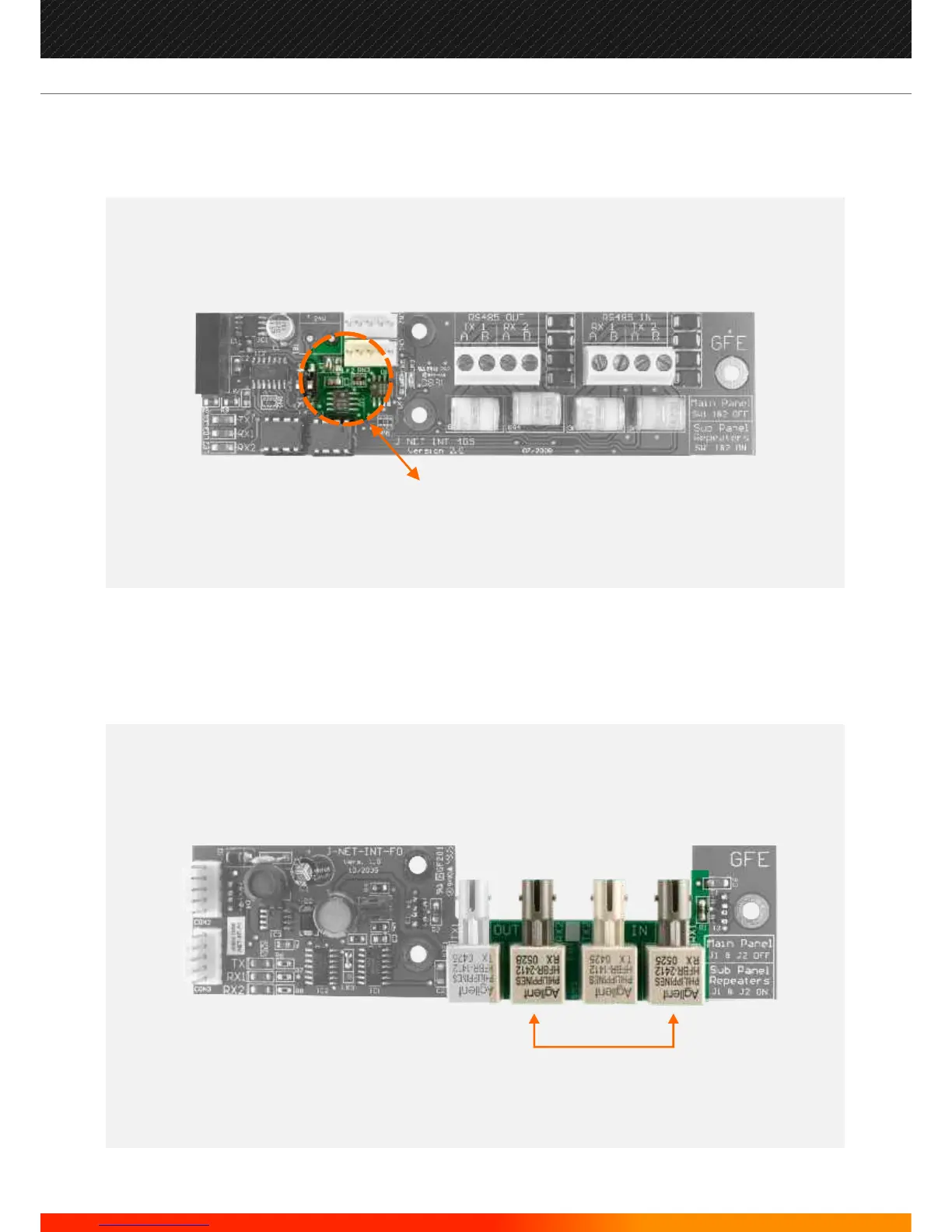

Data Loop Interface Configuration
If these interfaces are to be used at the Main Panel, all links on both the RS485 INTERFACE BOARD (J1 & J2) and FIBRE-
OPTIC INTERFACE BOARD (LK1 & LK2) should be removed. When used on Repeaters or Sub-panels they should be
kept linked.
J-NET-INT-FO
J-NET-RS485-INT-NEW
LINKS -
MAIN PANEL = REPEATER / SUB-PANEL=
J1 & J2
OFF ON
LINKS
MAIN PANEL = REPEATER / SUB-PANEL= OFF ON
29
Manufacturers of Fire Detection Equipment
INSTALLATION & COMMISSIONING MANUAL REVISION 4.0 05/2013
JUNO NET - NETWORKABLE ADRESSABLE PANEL
