GETTING THE SYSTEM RUNNING
Ensure all Sub-panels and Repeaters have unique addresses. Ensure all connectors are firmly in place. Ensure that all
connections are tight, with no stray strands of wire. Ensure that the SIM CARD is securely fitted in all Main Panels,
Repeaters and Standard Sub-panels
Power up all External Sub-panels and Repeaters then power up the Main Panel.
Ensure that the Main Panel is in Installation Mode (SYSTEM ON LED flashing). If not enter programming mode and select
function 8-4-1 Active/Installation Mode and put the panel into Installation Mode.
Press SYSTEM RESET.
Confirm that all standard Sub-panels have a solid green COMMS OK LED.
If the COMMS OK LED is flashing then there is no communication (via the Data Loop) to the Main Panel.
If the COMMS OK LED is solid green and the sub-panel has no other faults then the amber LOCAL FAULT LED should be
extinguished. If the LOCAL FAULT LED is lit then information on the fault should be available at the Main Panel.
Confirm that all Repeaters are showing identical information (LEDs and LCD) to that displayed by the Main Panel.

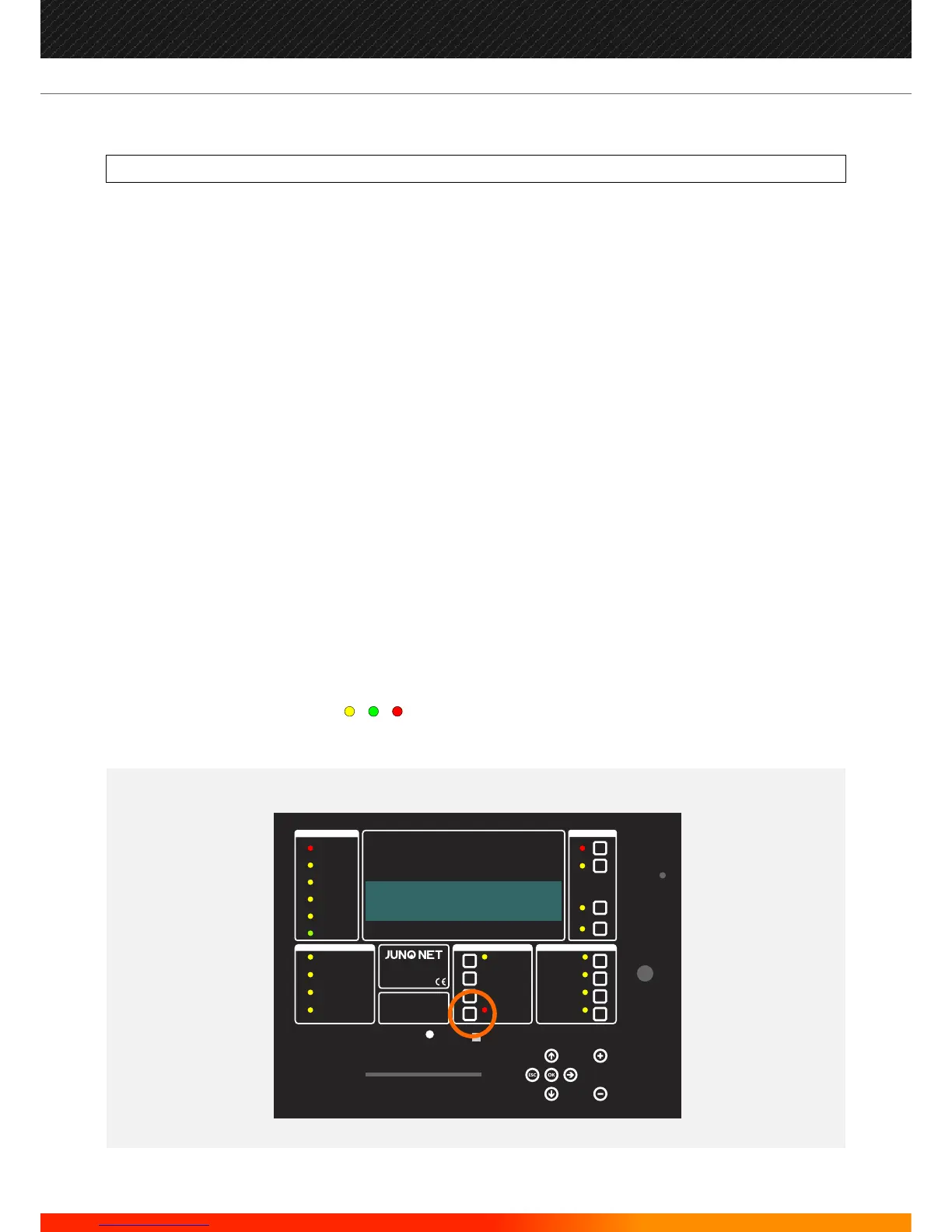

Press and hold LAMP TEST on the Main Panel.
All the LEDs should light, the LCD backlight should turn on and all pixels on the LCD should be black. (See below.)
All the LEDs shown in this drawing ( ) should be illuminated. Release the LAMP TEST switch to end the test,
all LEDs should extinguish except SYSTEM ON and any active indications
Communications Check
Main Panel Check
