The Main Panel
Before entering the UPLOAD/DOWNLOAD Function, The RS-485 and Fibre Optics data Loop connections to Sub-panels
and Repeaters on the J-NET-CON board should be removed (CON 5). This task should always be carried out with no
power applied to the system. Also, RS-485 and Fibre Optics Interface boards mounted on this board should be removed.
Connect the RS232 cable from the PC to the 9 pin plug mounted on the J-NET-CON board of the main panel. Upon
completion of this, re-apply power to the system.
Put panel in INSTALLATION mode using Function 8-4-1 to prevent the appearance of FAULT conditions due to the
absence of Data Loop communications.
Entering the UPLOAD/DOWNLOAD LINK TO PC Function 8-4-2 will immediately stop all normal communication to Sub-
panels and repeaters connected to the Data Loop.
The panel's LCD display should show the following:
When ready, press ENTER on the panel to Start upload/download on panel and then start upload/download on PC.
Once all uploading and downloading is complete power the Main Panel down and refit the original PCBs or Cables to the
CON 5 on the J-NET-CON.
Uploading/Downloading Customer Site Data
Depending on the amount of data transferred an Upload or Download can take up to 6 minutes.
It is not necessary to enter Installation Mode after uploading or downloading Customer data. But a Main Panel Master
Reset is essential (and will happen automatically when the Main Panel is powered up after the original PCBs are re-fitted).
Printer Disable/Enable
Use this function to disable the printer operation (if the printer is fitted).
8-4-3
8-4-2 UPLOAD / DOWNLOAD LINK TO PC
PRESS ENTER TO START, ESC TO EXIT

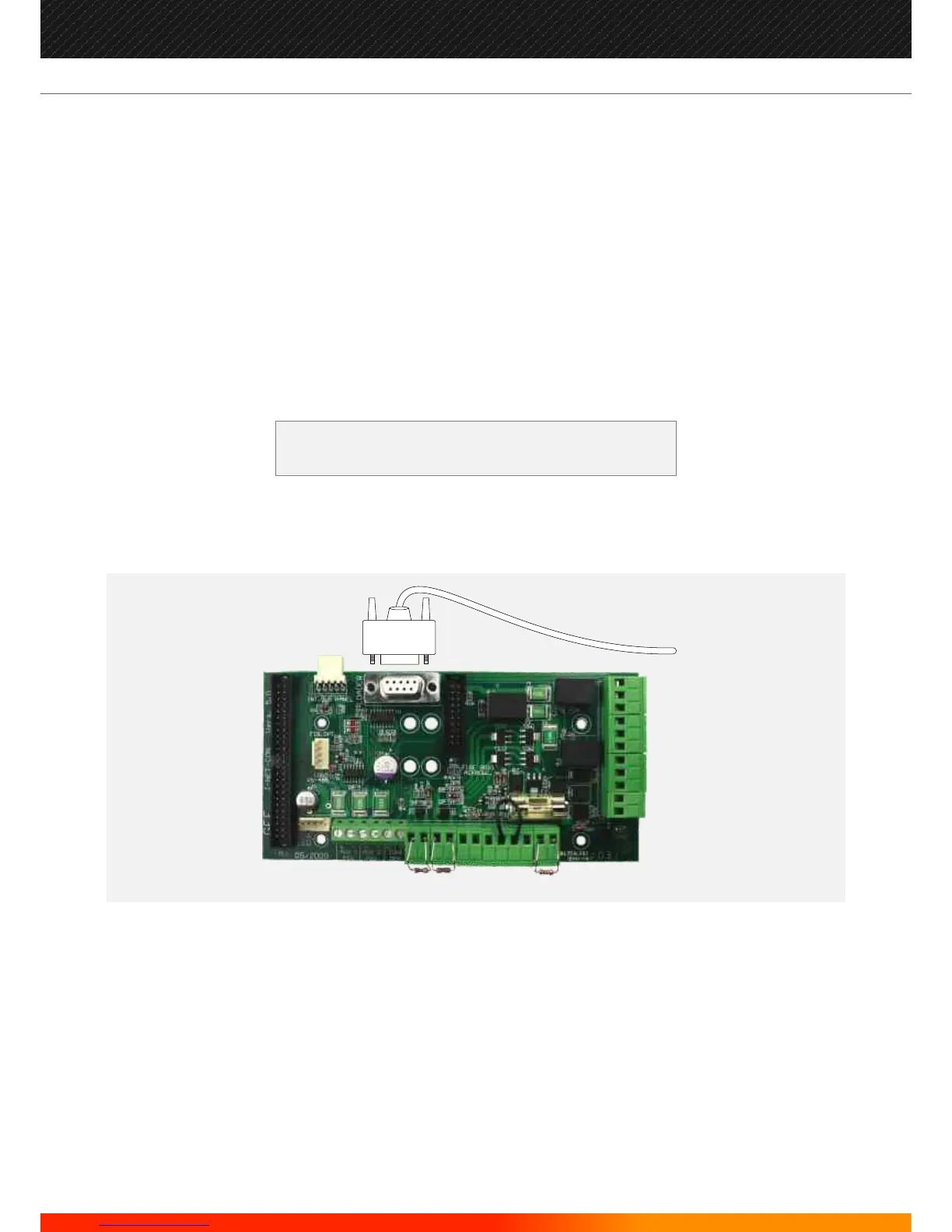

TO PC RS232 PORT
EXTENSION Rs232
(MALE-FEMALE)
