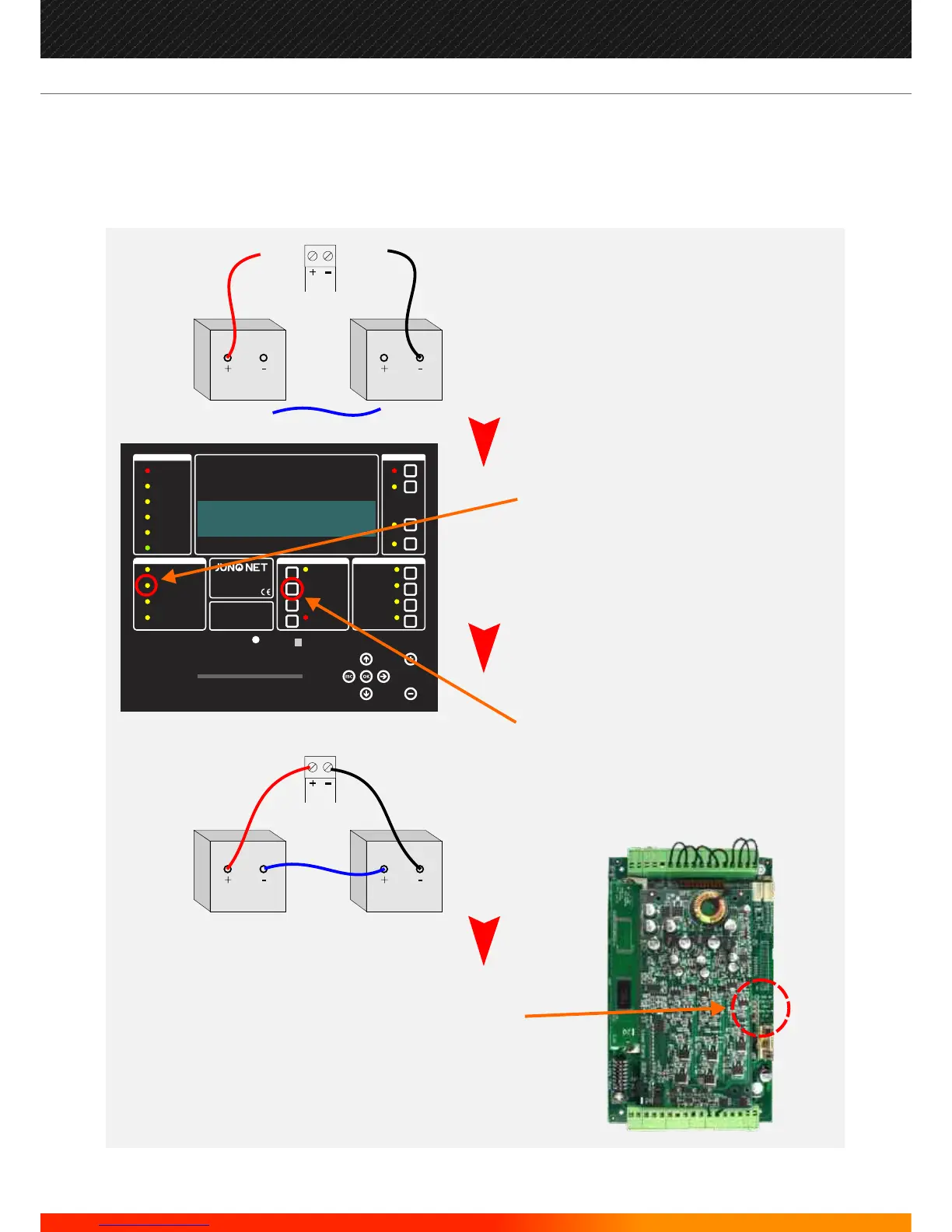

Battery Fault Message Test
This test should be performed for each set of batteries. Test only the actual battery connections.
Remove the blue link from between the 2 batteries
After a short delay, the SUPPLY FAULT
LED illuminates, the panel buzzer
sounds and the "Battery Fault"
message appears on the LCD Display.
Replace the link between the batteries
and reset the panel (SYSTEM RESET) to
clear the fault indication.
For distributed systems, to save time from going to
the main panel display, check instead that the FAULT
LED on the sub-board is illuminated amber. This will
remain illuminated after reconnecting the batteries,
so when all sub-panels have been checked, press
SYSTEM RESET.
