INTRODUCTION
Commissioning involves checking that all connections have been made properly and that all hardware is functioning
correctly. This means the system must first be installed in accordance with the previous section of this manual.
The panel is supplied set to ‘Installation mode’. In Installation Mode the green SYSTEM ON LED will flash on and off. The
panel will automatically detect and memorize all the devices connected to the loops in the system.
The default settings of the system mean that the unit will be ready to operate and detect a Fire incident from the moment
power is switched on. Therefore, the system will be fully functional without any additional setting up. All further actions
will tailor it to the requirements of the specific installation at hand.
Once the connections and hardware have been checked it is possible to get the basic fire alarm system up and running
very quickly - it is only necessary to have the system in Installation Mode for 90 seconds then set the system to ‘Active
Mode’. Programming of the system to provide more advanced functionality is covered in the next section.
Unless otherwise indicated, in order to enable the operation of a particular switch, either a valid User or Programming
Access Code is required to be entered.
The only exceptions are the following:
1- Lamp Test Switch
2- Queue Review Switches( Fire, fault, Test and Disabled)
3- Delays Active Switch. During an alarm condition and while delays are active.
By entering a valid User Access Code (Factory default ), the authorized user gains access to the operation of all
switches at the front of the panel's display. Authorized User Access also grants the possibility of enabling or disabling
zones.

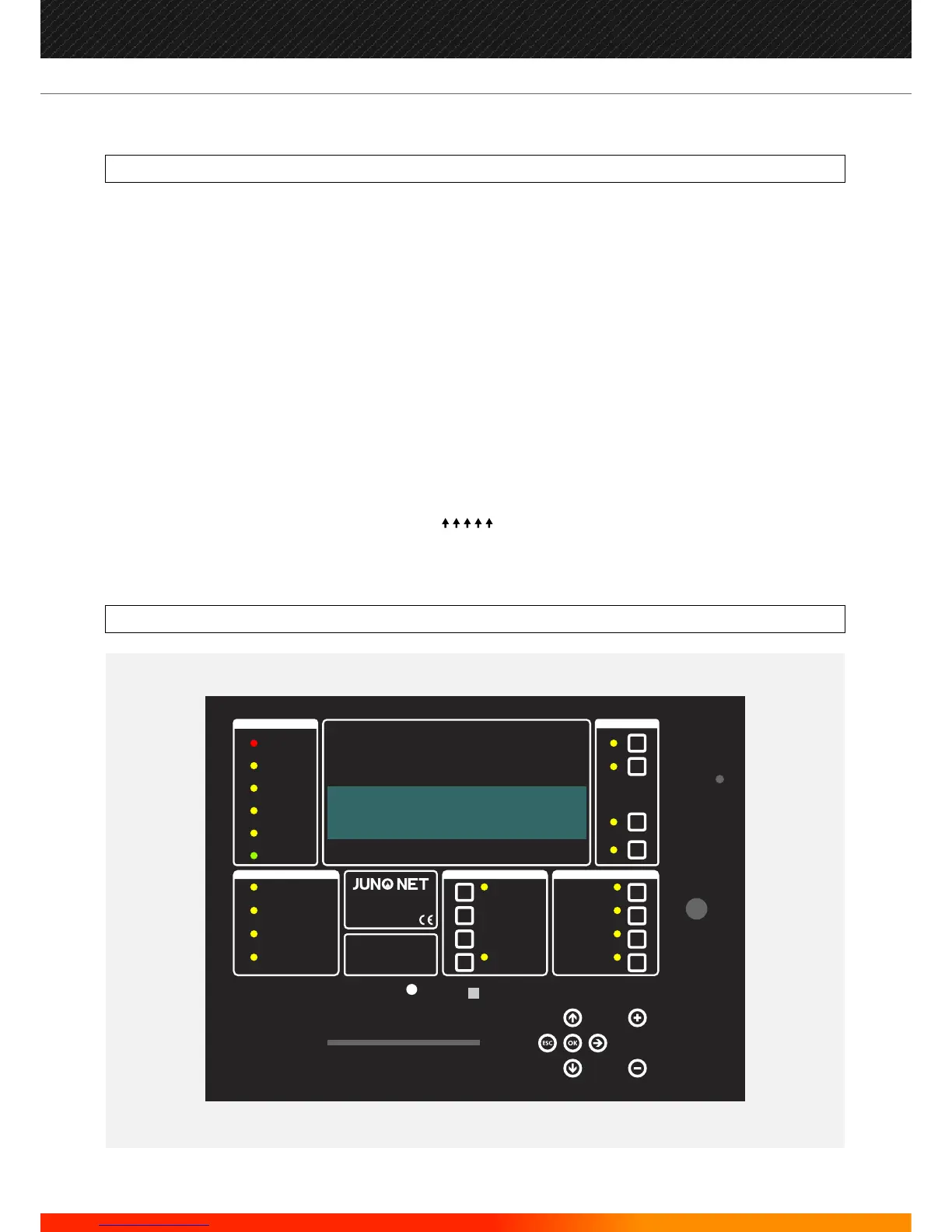

THE MAIN PANEL BUTTONS
COMMISSIONING
FIRE
FAULT
PRE-ALARM
TEST
DISABLED
SYSTEM ON
ALARM FAULT
SUPPLY FAULT
SYSTEM FAULT
TRANS. FAULT
PAPER FEED
LAMP TEST
SYSTEM RESET
INTERNAL BUZZER
SILENCE
DISABLED
TEST
FAULT
AUXILIARY
RELAYS
SOUNDERS
ENABLE/DISABLE
SELECTED
DETECTORS
DELAYS
ACTIVE
STATUS
FAULTS CONTROLS DISABLEMENTS
QUEUE REVIEW
SILENCE/RESOUND
ALARMS
MANUFACTURED IN THE E.U.
FIRE
-2 AND EN54-4
CERTIFIED
1328-CPD-0160
EN54
FIRE ALARM SYSTEM
