Global Fire JUNO NET - Page 36

MAINPANEL
REPEATER
FIBRE-OPTIC
J-NET-CON
J-NET-LPCON
J-NET-INT-FO J-NET-INT-FO
J-NET-CON
J-NET-LPCON
36

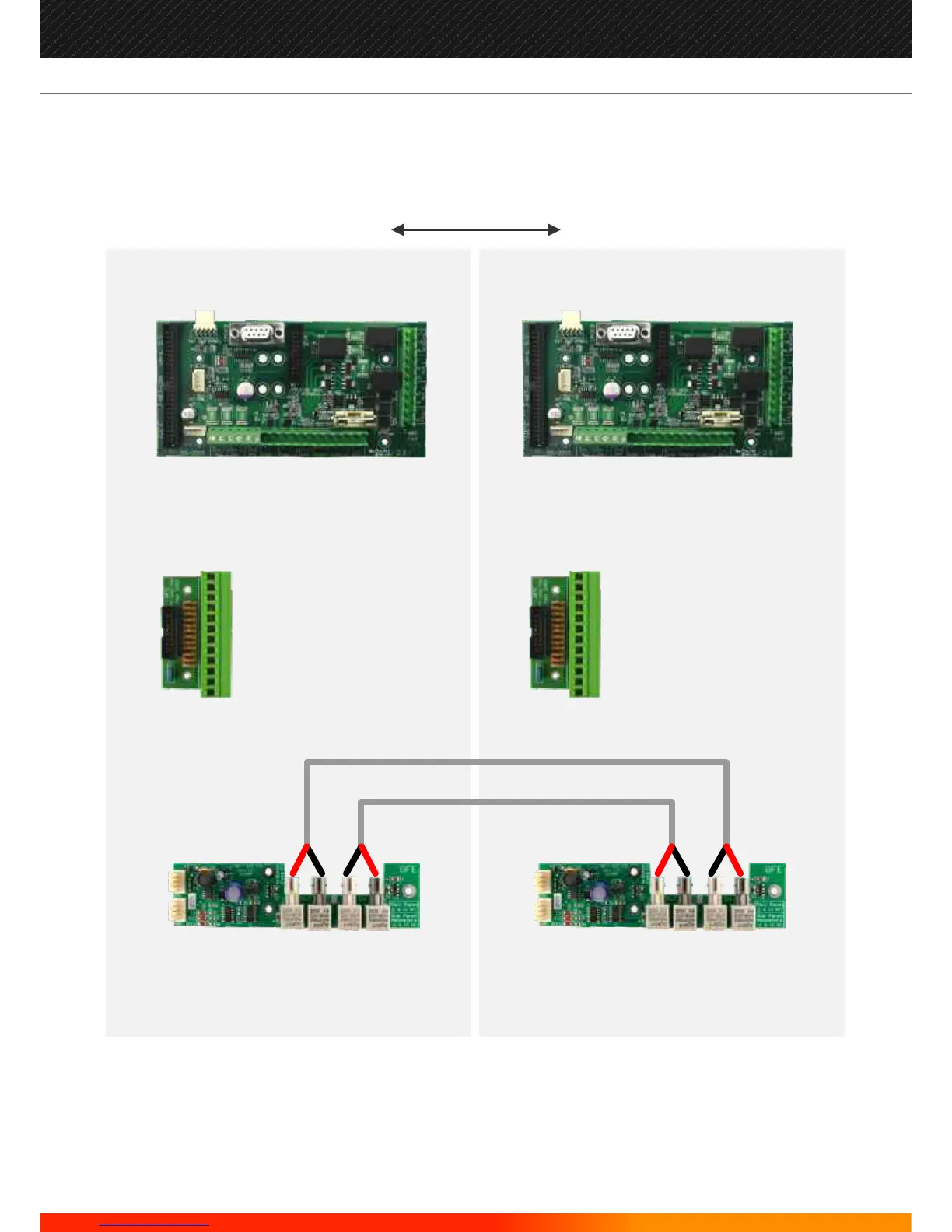

Connection Schematic: Main Panel Repeater and Sub-Panel using Fibre Optics
