Make the connections to the devices as specified
on the device data sheet. If no data sheet is
available make the connections as below:
L2L1
Device 1
NOTE: a maximum of 32 manual call-points can be fitted to any one loop. If this value is exceeded
the response time for certain types of call-point will be excessive.
DEVICES

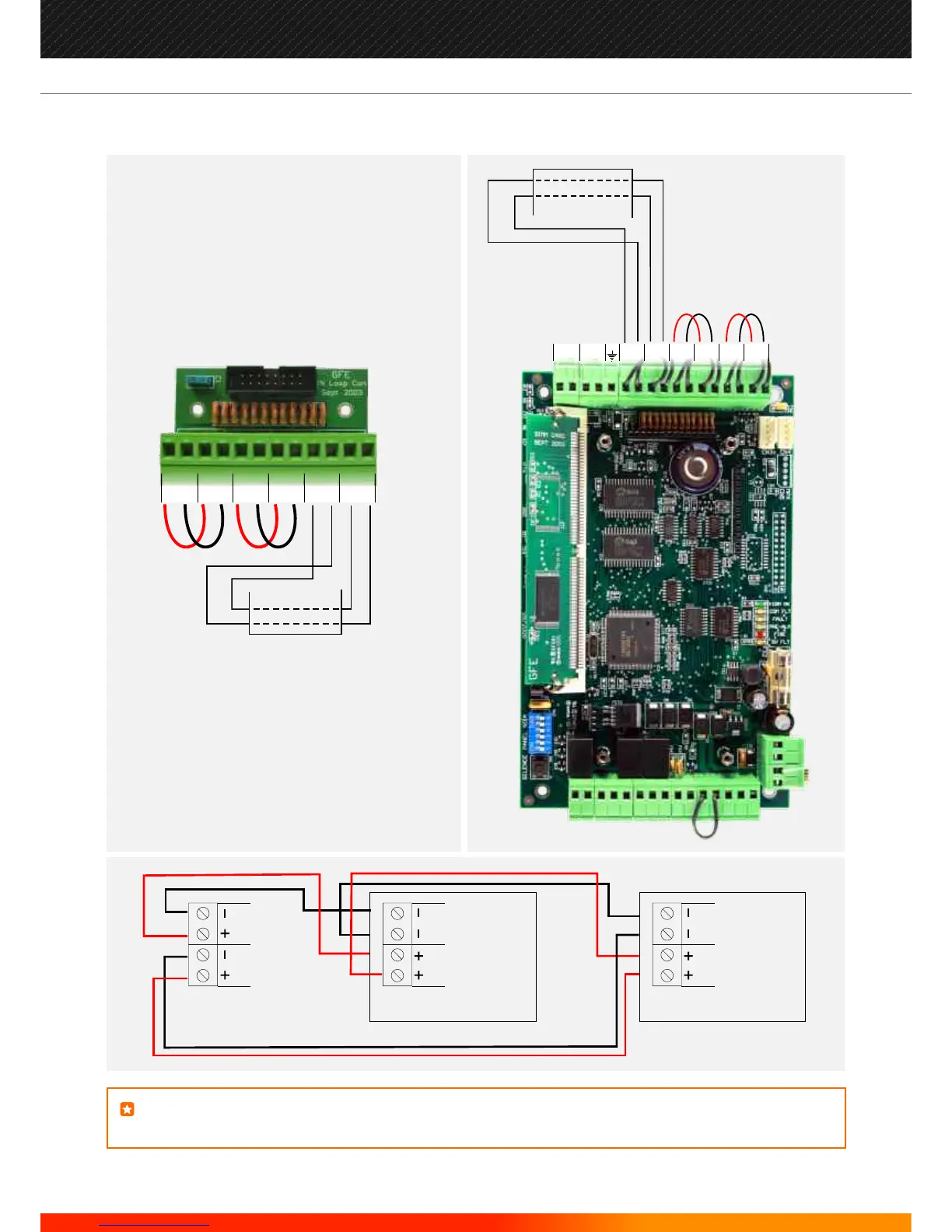

Wire each loop as shown. Unused loops
must have links left in position, otherwise
the panel will indicate a fault.
J-NET-LPCON
J-NET-SP
with LOOP-CARD
L2L1
Device 2
LOOP 1
OUT
LOOP 1
RETURN
DEVICES
LOOP 1
OUT
LOOP 2
OUT
LOOP 3
OUT
LOOP 1
RETURN
LOOP 2
RETURN
LOOP 3
RETURN
+ -+ -+ -+ -+ -+ -
SNDR 1 SNDR 2
LOOP 1
OUT
LOOP 2
OUT
LOOP 3
OUT
LOOP 1
RETURN
LOOP 2
RETURN
LOOP 3
RETURN
ETH
+ - + -
+ -+ -+ -+ -+ -+ -
41
Manufacturers of Fire Detection Equipment
INSTALLATION & COMMISSIONING MANUAL REVISION 4.0 05/2013
JUNO NET - NETWORKABLE ADRESSABLE PANEL
