P a g e | 121

WP820 User Guide

Version 1.0.7.7

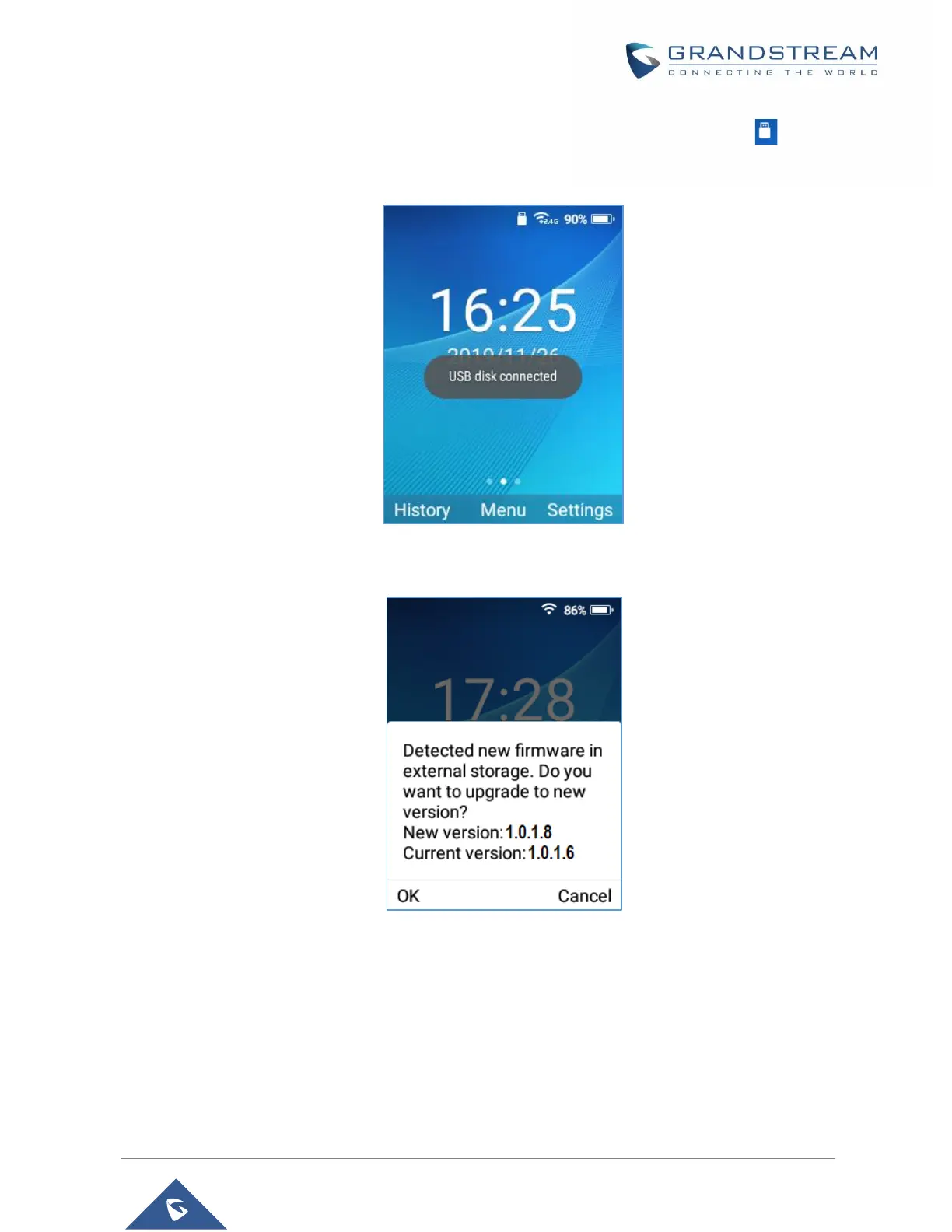

3. The following message will appear indicating that the USB drive is connected and the icon will

appear in the status bar.

Figure 115: USB disk connected

4. Power cycle the WP820 and wait for the device to detect the firmware.

Figure 116: New Firmware Detected

5. Press OK to start the upgrade.

Note: The USB flash drive should be on FAT32 format and the firmware file should be necessarily

named wp820fw.bin

Config Provision via USB

This feature allows the user to place a XML configuration file on a USB drive and upload to WP820.
