GRAPHTEC FC4200-50 - Manual Registration Mark Alignment: Point Input; Setting First, Second, and Third Points

6 – 17
FORCE
SPEED
OFFSET
QUALITY
F1 F3
F4
F2
SET THIRD POINT !
FORCE
SPEED
OFFSET
QUALITY
F1 F3
F4
F2
O-X M 260.0 mm
S 0260.0 mm
FORCE
SPEED
OFFSET
QUALITY
F1 F3
F4
F2
O-Y M 200.0 mm
S 0200.0 mm

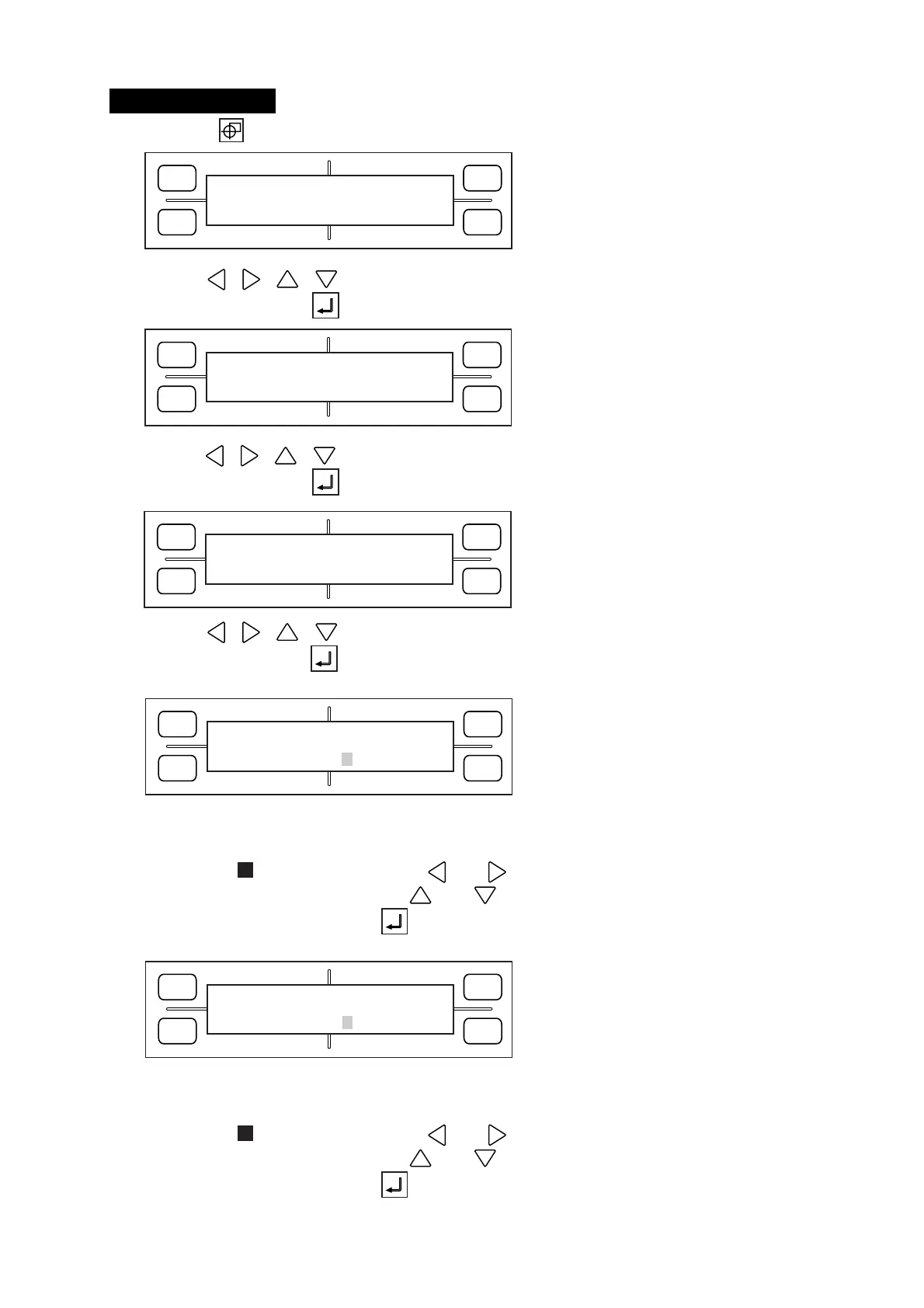

Setting Procedure
(1) Press the ORIGIN key to display the prompt below.
(2) Use the , , , POSITION keys to move the pen carriage to the desired FIRST POINT
position, then press the ENTER key. The prompt below appears.
(3) Use the , , , POSITION keys to move the pen carriage to the desired SECOND POINT
position, then press the ENTER key. The prompt below appears.
(4) Use the , , , POSITION keys to move the pen carriage to the desired THIRD POINT
position, then press the ENTER key. The menu below appears (only when the MARK DIST. ADJ.
setting is MANUAL).
The display’s first line shows the distance between the 1st and 2nd points as read by the plotter, so
input the actual distance in the second line.
To move the blinking cursor, use the and POSITION keys.
To change the numeric value, use the and POSITION keys.
To register your setting, press the ENTER key. The menu below appears (only when the MARK
DIST. ADJ. setting is MANUAL).
The display’s first line shows the distance between the 1st and 2nd points as read by the plotter, so
input the actual distance in the second line.
To move the blinking cursor, use the and POSITION keys.
To change the numeric value, use the and POSITION keys.
To register your setting, press the ENTER key.
FORCE
SPEED
OFFSET
QUALITY
F1 F3
F4
F2
SET FIRST POINT !
FORCE
SPEED
OFFSET
QUALITY
F1 F3
F4
F2
SET SECOND POINT !
