NEXT/END
This setting will configure the action
after a step has completed. NEXT
will go to the next step/memory.
END will end the program at the
end of the step.
HI/AUTO V
range
Sets the voltage range for the
program, HI or AUTO.
When set to AUTO, the unit will
automatically set the range to
155VAC, 310VAC or 600VAC (the
APS-003 option only).
When set to HI, the unit range is set
to 310VAC or 600VAC if the APS-003
option is installed.
VSET
Sets the output voltage for the
current step.
FSET
Sets the frequency for the current
step.
SD_SITE
Surge/Dip site position. (T1 time)
SD_TIME
Surge/Dip time. (T2 time)
SD_VOLT
Surge/Dip voltage. (ACV)
SD_CONT
Surge/Dip trigger control. Manual
or Auto.

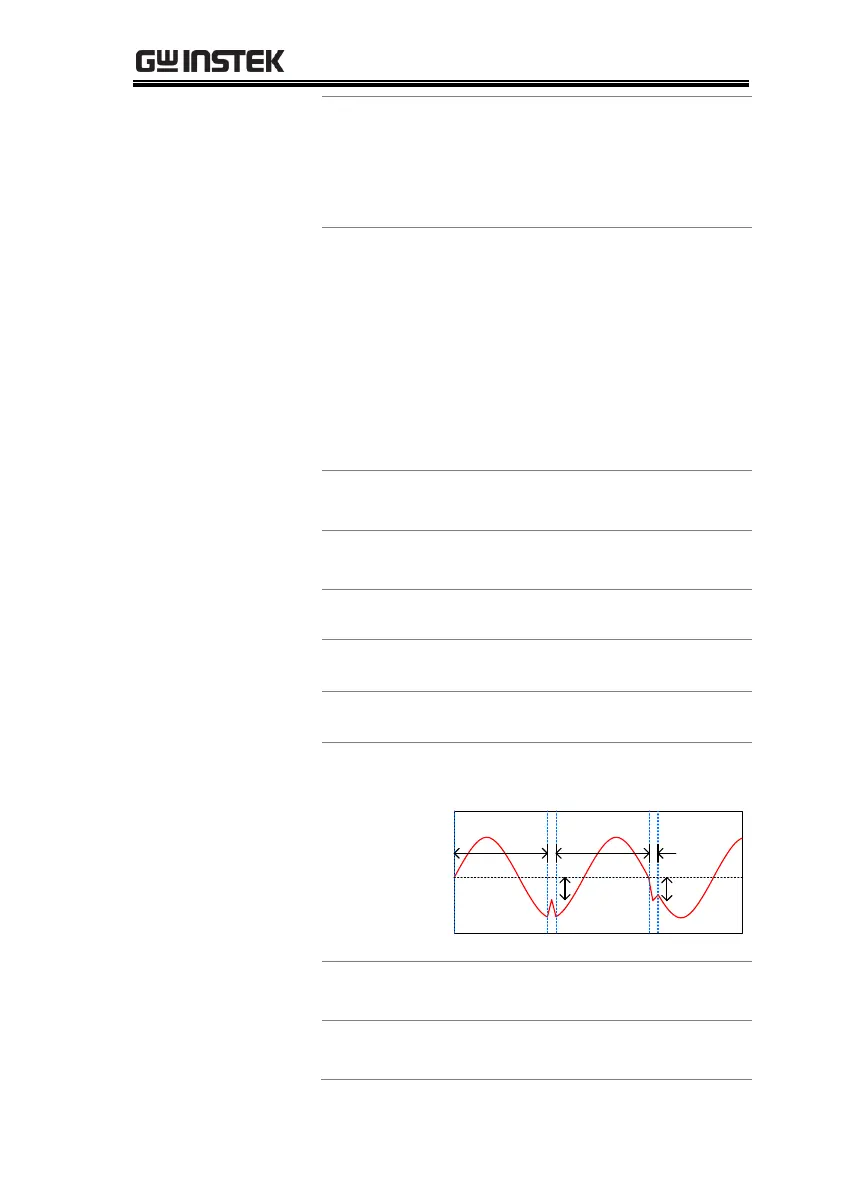

Example
Dip Surge
T2 T2T1 T1
ACV ACV
IRMS(A)
Sets the IRMS high/low limit for the
step.
IPK(A)
Sets the peak current high/low limit
for the step.
