GDS-2000 Series User Manual
152
Range
None, Odd, Even

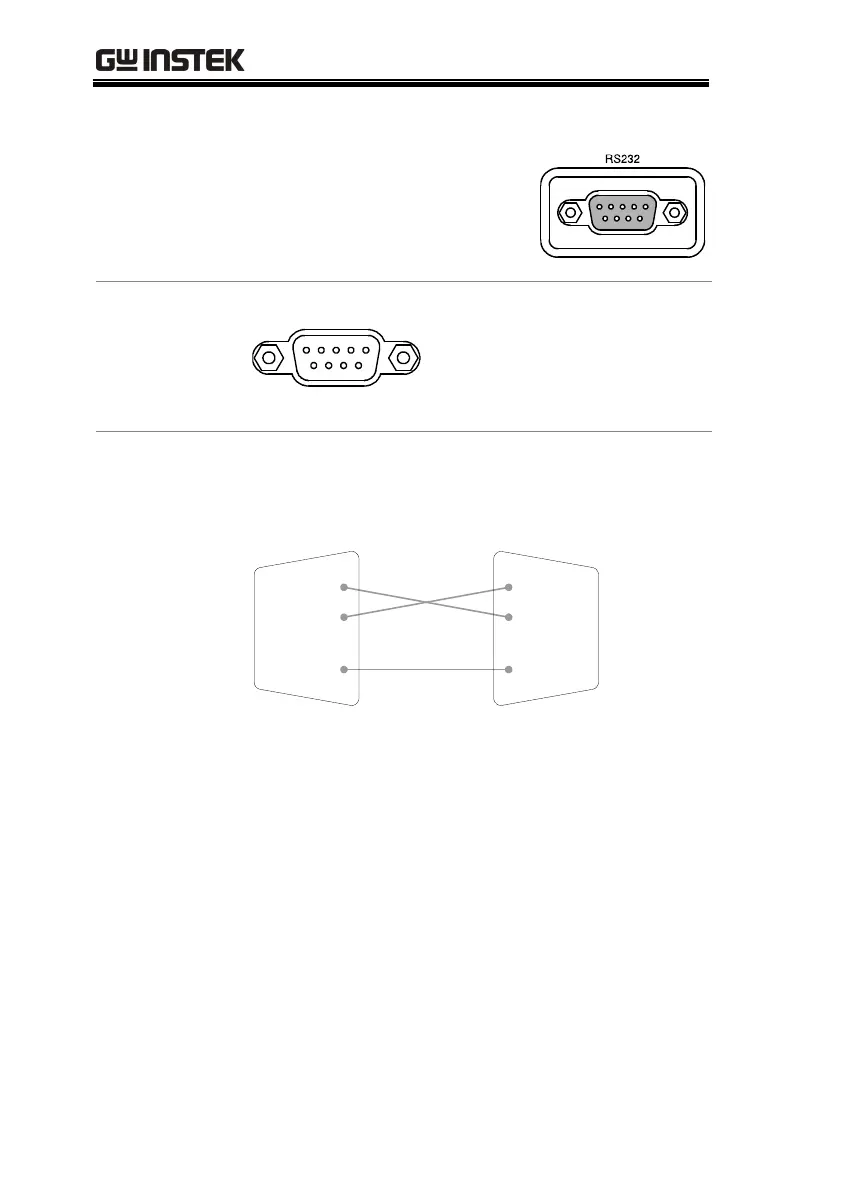

9. Connect the RS-232C cable
to the rear panel port: DB-9
male connector. For
functionality check see
page155.
Pin assignment
1 2 3 4 5
6 7 8 9
2: RxD (Receive data)
3: TxD (Transmit data)
5: GND
4, 6 ~ 9: No connection
PC connection
Use the Null Modem connection as in the below
diagram.
GDS-2000 PC
TxD
RxD
GND
Pin2
Pin3
Pin5
RxD
TxD
GND
Pin2
Pin3
Pin5
