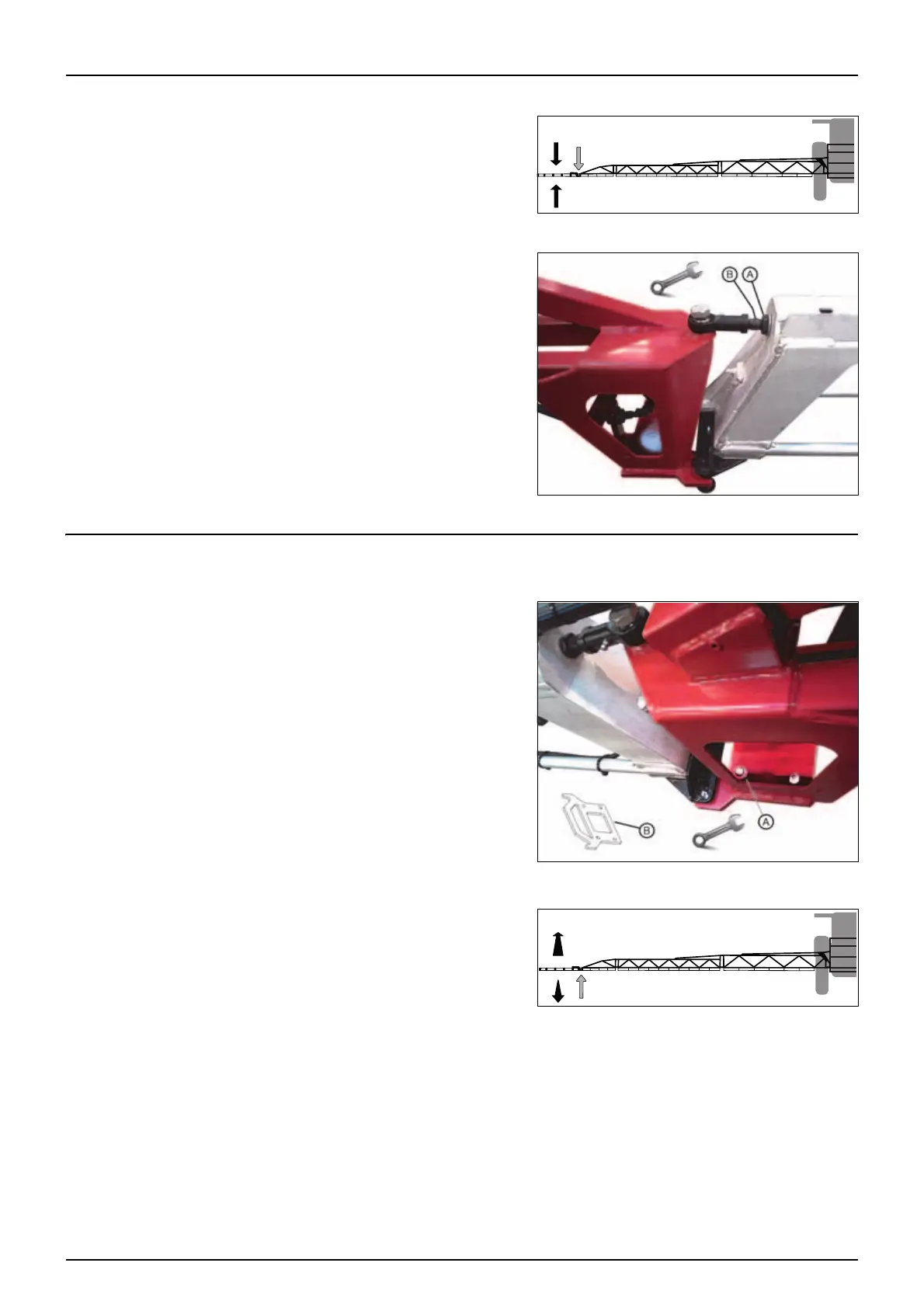

Vertical Alignment of Breakaway Section
Align the breakaway with the outer section of the boom.
Step for adjustment:
1. Loosen the nut (A). Wrench = 24 mm.
2. The hexagon (B) is turned. Wrench = 17 mm.
Turn clockwise: The breakaway is raised.
Turn counter-clockwise: The breakaway is lowered.
3. When the breakaway is aligned, tighten the nut (A)
Adjustment is completed.
Horizontal Alignment of Breakaway Section
Complete the following steps to adjust the breakaway to align it with the outer section of the boom.
1. Loosen the bolts and lock nuts (A) - but do not remove them.
1. There are four sets of bolts and nuts in all, mounted in both sides
of the steel bracket (B). Wrench = 17 mm.
On the picture, the bolt and nut are already removed from the one
hole. The slot holes in the steel bracket allows adjustment. The
steel bracket is attached to the breakaway
2. Align the breakaway with the outer section by moving the bracket.
3. Re-tighten the bolt and nuts. Torque = 180 Nm.
Adjustment is completed.
