ContentServer 3000

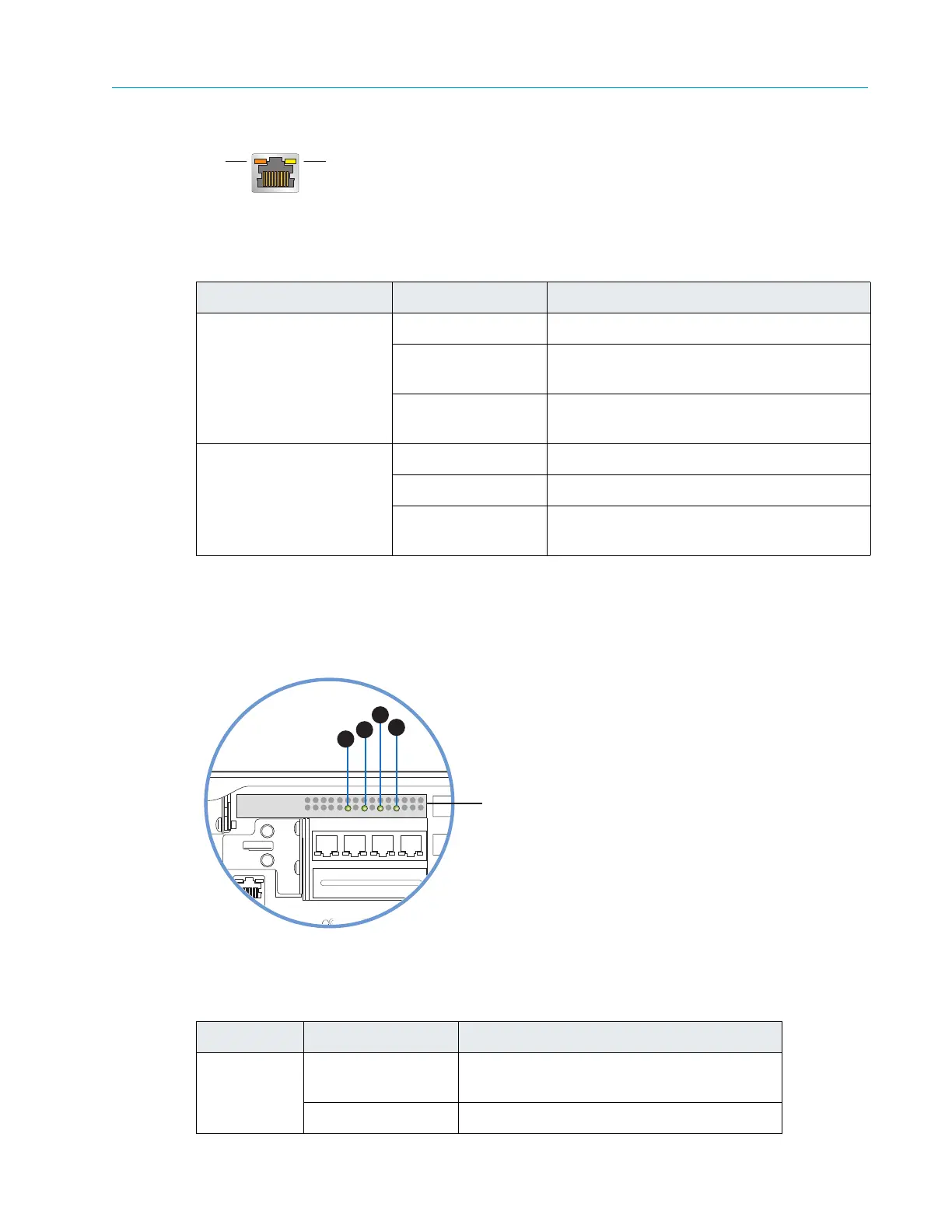

Figure 8–24: Gigabit Ethernet Port Status LEDs
Table 8–23: ContentServer 3000 Gigabit Ethernet Port Status LEDs
NVRAM Card LEDs
The NVRAM card LEDs provide information about the state of the NVRAM card. Refer to Figure 8–
25 and Table 8–24 for details.
Figure 8–25: NVRAM Card LEDs
LED LED State NIC State
Link (left) Off Power off, network cables unplugged
Green (solid) Power off, network cables plugged in.
Active connection at 100 Mb/s
Amber (solid) Power on, network cables plugged in.
Active connection at 1 Gb/s
Activity (right) Off Power off, network cables unplugged
Yellow (solid) Power on, active connection
Yellow (blink) Power on, network data being sent or
rec
eived
Table 8–24: NVRAM Card Status LEDs
LED LED State Description
1. Restore On Data from the NVRAM is being restored to
DRAM
.
Off No activity.
