GigE Area Scan Camera User Manual
31
level low, the device is in image acquisition status.

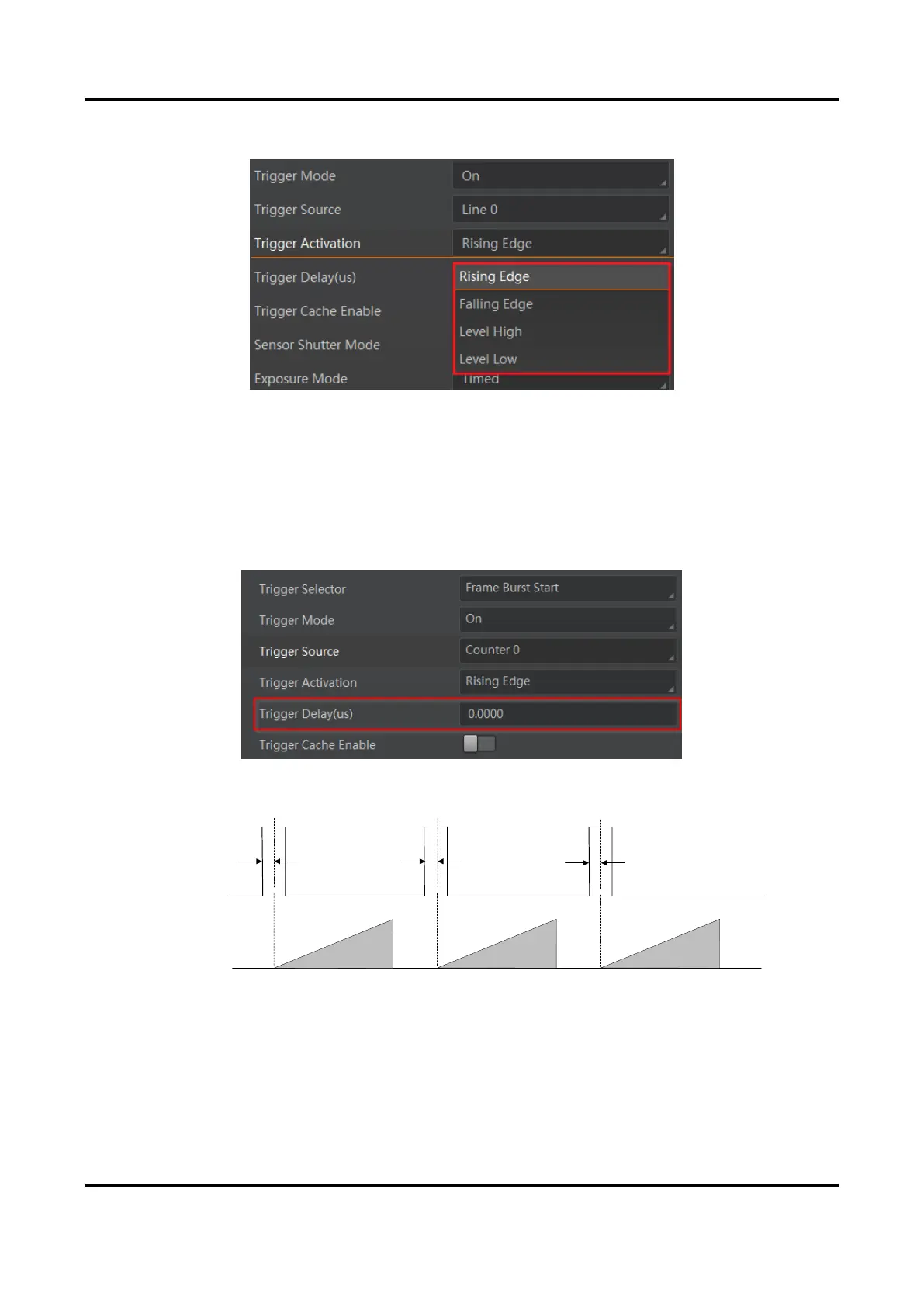

Figure 8-17 Set Trigger Activation
Set Trigger Delay
The trigger delay function allows the device to add a delay between the receipt of trigger
signal and the moment the trigger becomes active. Go to Acquisition Control → Trigger
Delay, and enter Trigger Delay, and the unit is μs.
Figure 8-18 Set Trigger Delay
Figure 8-19 Sequence Diagram of Trigger Delay
Set Trigger Cache
The trigger cache function allows the device to save and process new signal during trigger
stage, and the device can save and process three trigger signals at most. Go to
