GigE Area Scan Camera User Manual
33
exposure time. Thus making sure this exposure time is not earlier than the device’s last
frame creation time of the 1st trigger signal.

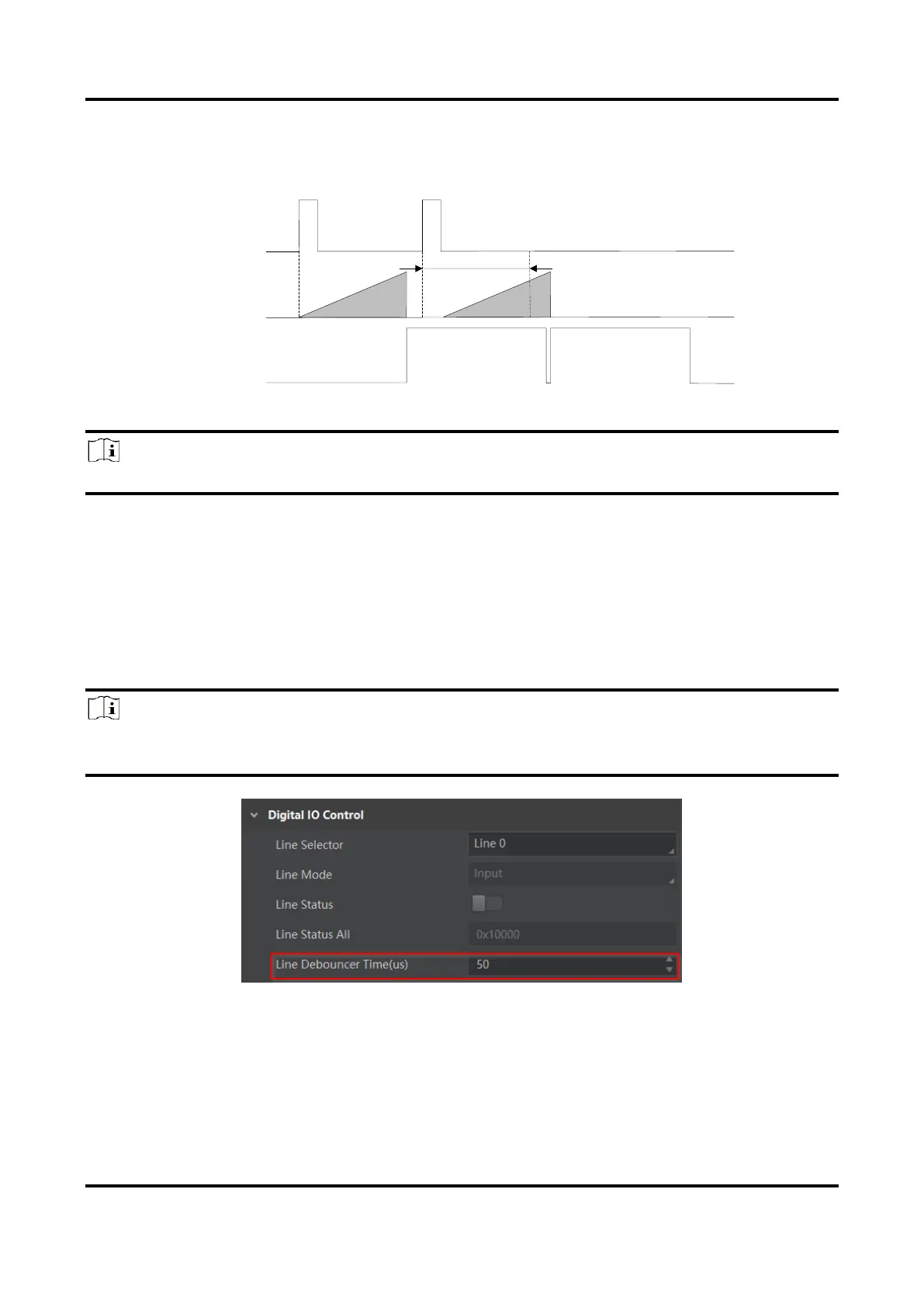

Figure 8-23 Sequence Diagram
Note
The three sequence diagrams above use rising edge as trigger activation.
Set Trigger Debouncer
The trigger debouncer function allows the device to filter out unwanted short external
trigger signal that is input to the device.
Go to Digital IO Control → Line Debouncer Time, and enter Line Debouncer Time
according to actual demands. The range of Line Debouncer Time is from 0 μs to 1000000
μs.
Note
If the Line Debouncer Time you set is greater than the time of trigger signal, this trigger
signal will be ignored.
Figure 8-24 Set Trigger Debouncer
