GigE Area Scan Camera User Manual
50
PNP Device
Camera Power
Bi-direction I/O
Camera Power
Ground
PWR VCC
PNP Power
Signal Line
PNP Device
GND of PWR and VCC
PNP Power
Ground
●

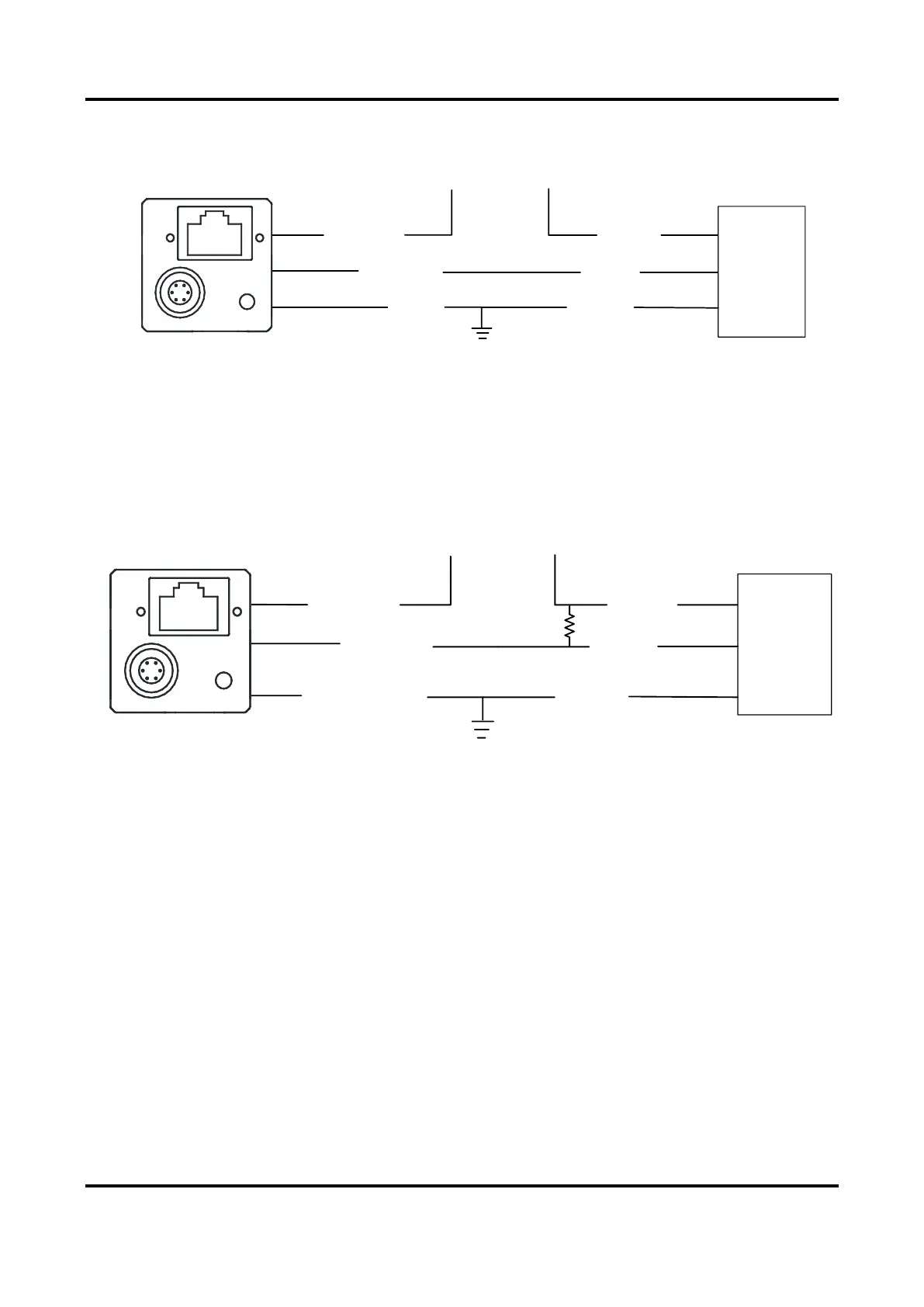

Figure 10-17 Output Signal Connects to PNP Device
NPN Device
● If the VCC of NPN device is 24 VDC, it is recommended to use 4.7 KΩ pull-up resistor.
● If the VCC of NPN device is 12 VDC, it is recommended to use 1 KΩ pull-up resistor.
Camera Power
Bi-direction I/O
Camera Power Ground
PWR VCC
NPN Power
Signal Line
NPN Device
GND of PWR and VCC
NPN Power
Ground
●
●
●
Figure 10-18 Output Signal Connects to NPN Device
