Network Video Recorder User Manual
140
Step 8 Click Apply.
12.6 Region Exiting Detection
Purpose
The Region Exiting Detection Function detects objects that exit from a pre-defined virtual region.
Step 1 Go to System > Event > Smart Event.
Step 2 Click Region Exiting.

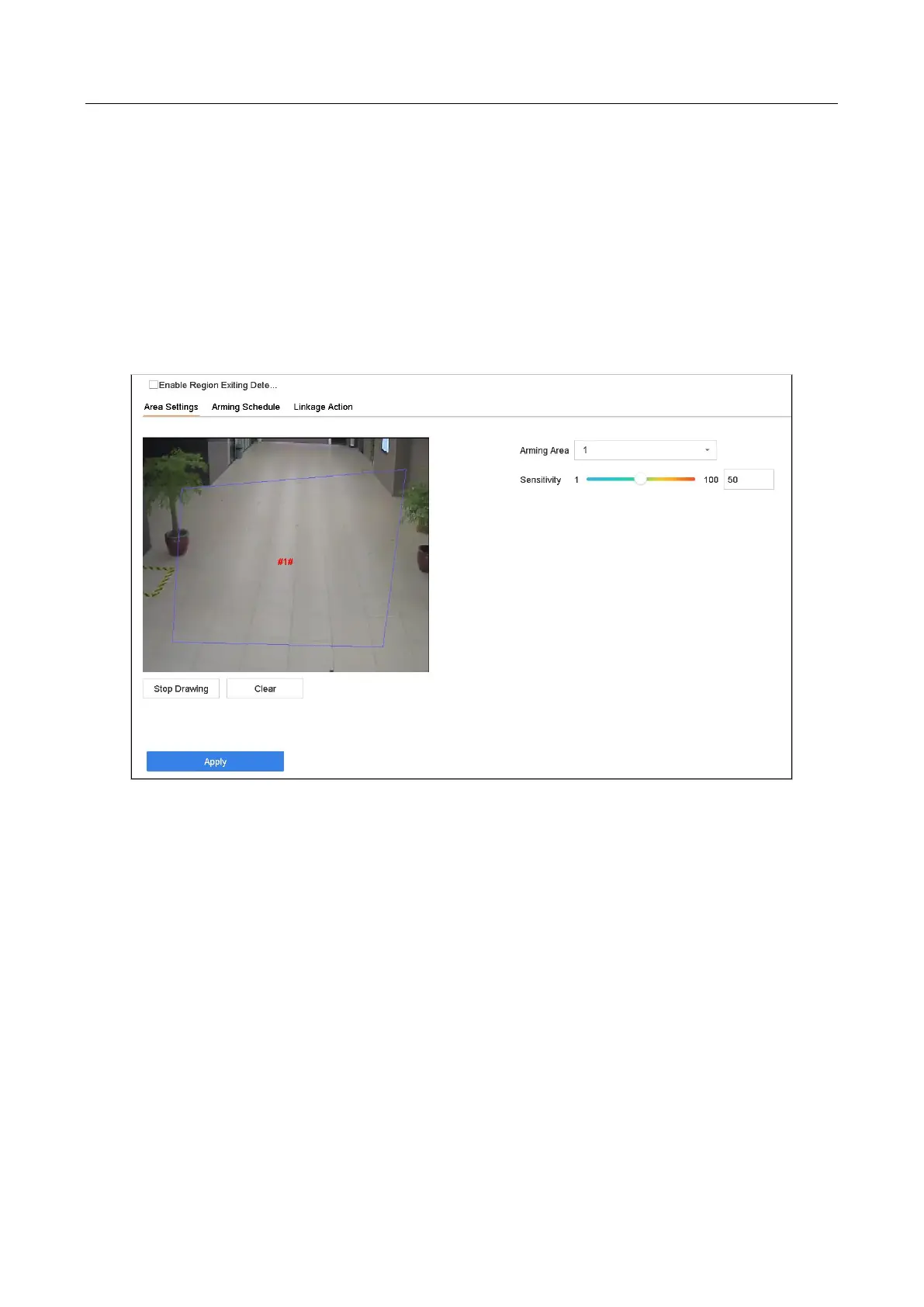

Figure 12-6 Region Exiting Detection
Step 3 Select a camera to configure.
Step 4 Check Enable Region Exiting Detection.
Step 5 Optionally, check Save VCA Picture to save the captured region exiting detection pictures.
Step 6 Follow these steps to set the detection rules and detection areas.
1) Select an Arming Region to configure. Up to 4 regions are selectable.
2) Drag the sliders to set Sensitivity.
Sensitivity: The higher the value is, the more easily the detection alarm will be triggered.
Its range is [0-100].
3) Click Draw Region and draw a quadrilateral in the preview window by specifying four vertices of
the detection region.
Step 7 Set the arming schedule. Refer to Chapter 11.1 Configure Arming Schedule.
