Network Video Recorder User Manual
81
A single IP SAN disk can be added.

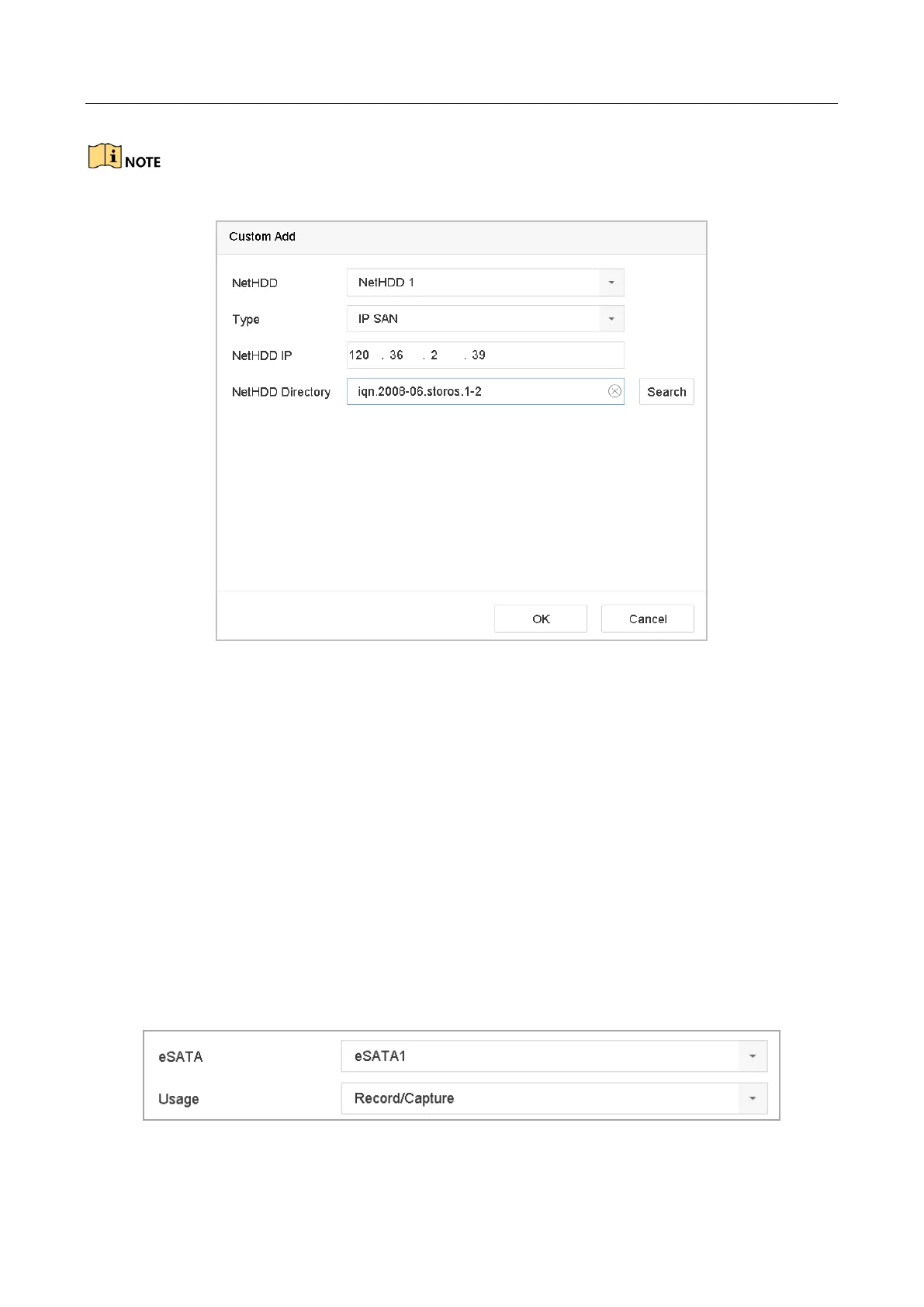

Figure 7-2 Add IP SAN Disk
Step 9 After having successfully added the IP SAN disk, return to the HDD Information menu. The added
NetHDD will be displayed in the list.
If the installed HDD or NetHDD is uninitialized, select it and click Init for initialization.
7.1.3 Configure eSATA for Data Storage
When there is an external eSATA device connected to the device, you can configure eSATA for the
data storage, and you can manage the eSATA in the device.
Step 1 Click Storage>Advanced.
Step 2 Select the eSATA type to Export or Record/Capture from eSATA.
Export: Use the eSATA for backup.
Record/Capture: Use the eSATA for record/capture. Refer to the following steps for operating
instructions.
Figure 7-3 Set eSATA Mode
