Network Video Recorder User Manual
195
Chapter 19 General System Settings
19.1 Configure General Settings
Purpose:
You can configure the BNC output standard, VGA output resolution, and mouse pointer speed in
the System > General interface.
Step 1 Go to System > General.

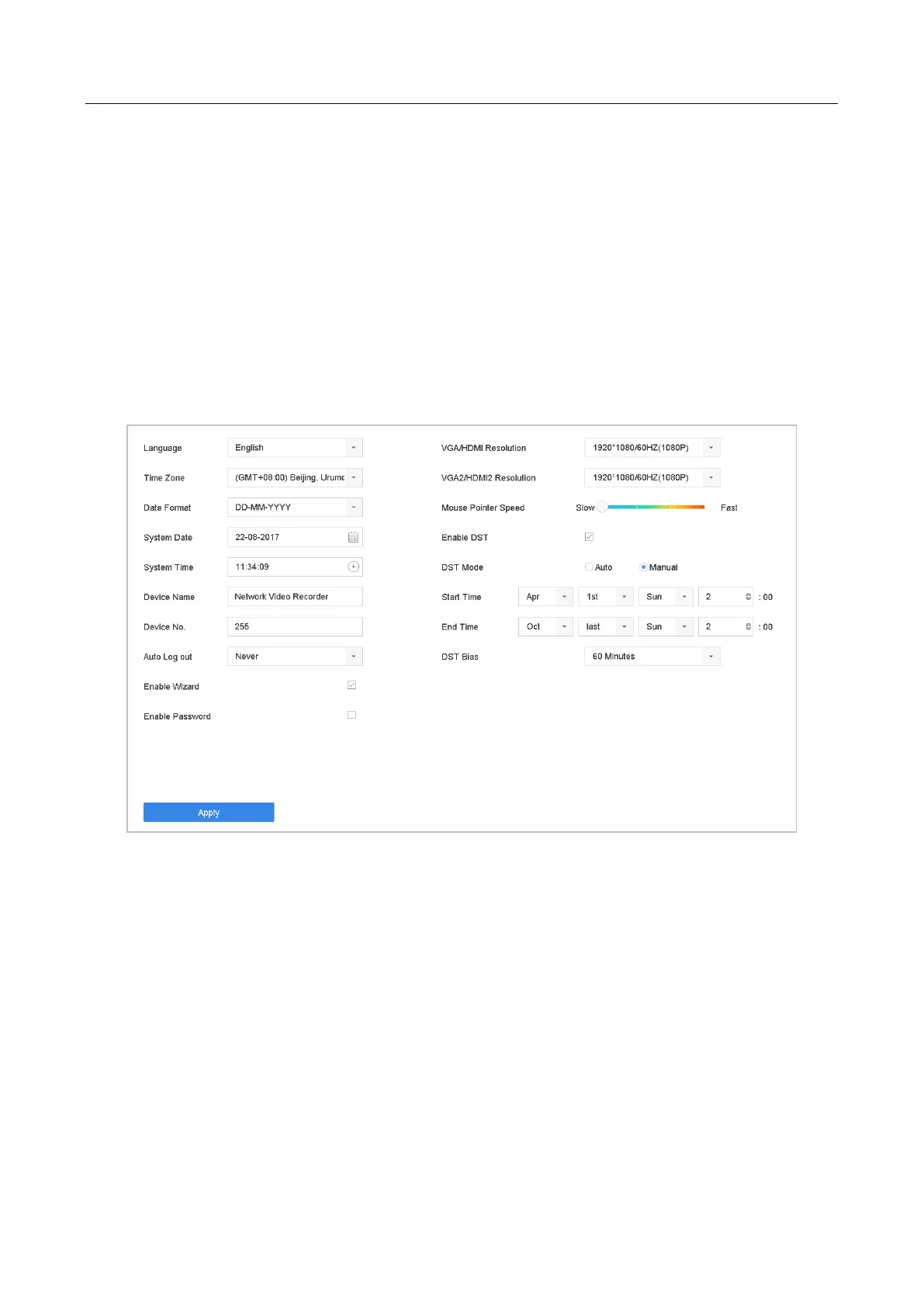

Figure 19-1 General Settings Interface
Step 2 Configure the following settings.
Language: The default language used is English.
Output Standard: Set the output standard to NTSC or PAL, which must be the same as the
video input standard.
Resolution: Configure video output resolution.
Device Name: Edit device name.
Device No.: Edit the device serial number. The Device No. can be set in the range of 1 to 255,
and the default No. is 255. The number is used for the remote and keyboard control.
