Network Video Recorder User Manual
149
Chapter 13 Smart Analysis
With the configured VCA detection, the device supports smart analysis for people counting and
heat map.
13.1 People Counting
Purpose
Counting calculates the number of people entering or leaving a certain configured area and creates
daily/weekly/monthly/annual reports for analysis.
Step 1 Go to Smart Analysis > Counting.
Step 2 Select the camera.
Step 3 Select the report type to Daily Report, Weekly Report, Monthly Report, or Annual Report.
Step 4 Set the Date to analyze. The people counting graphic will show.

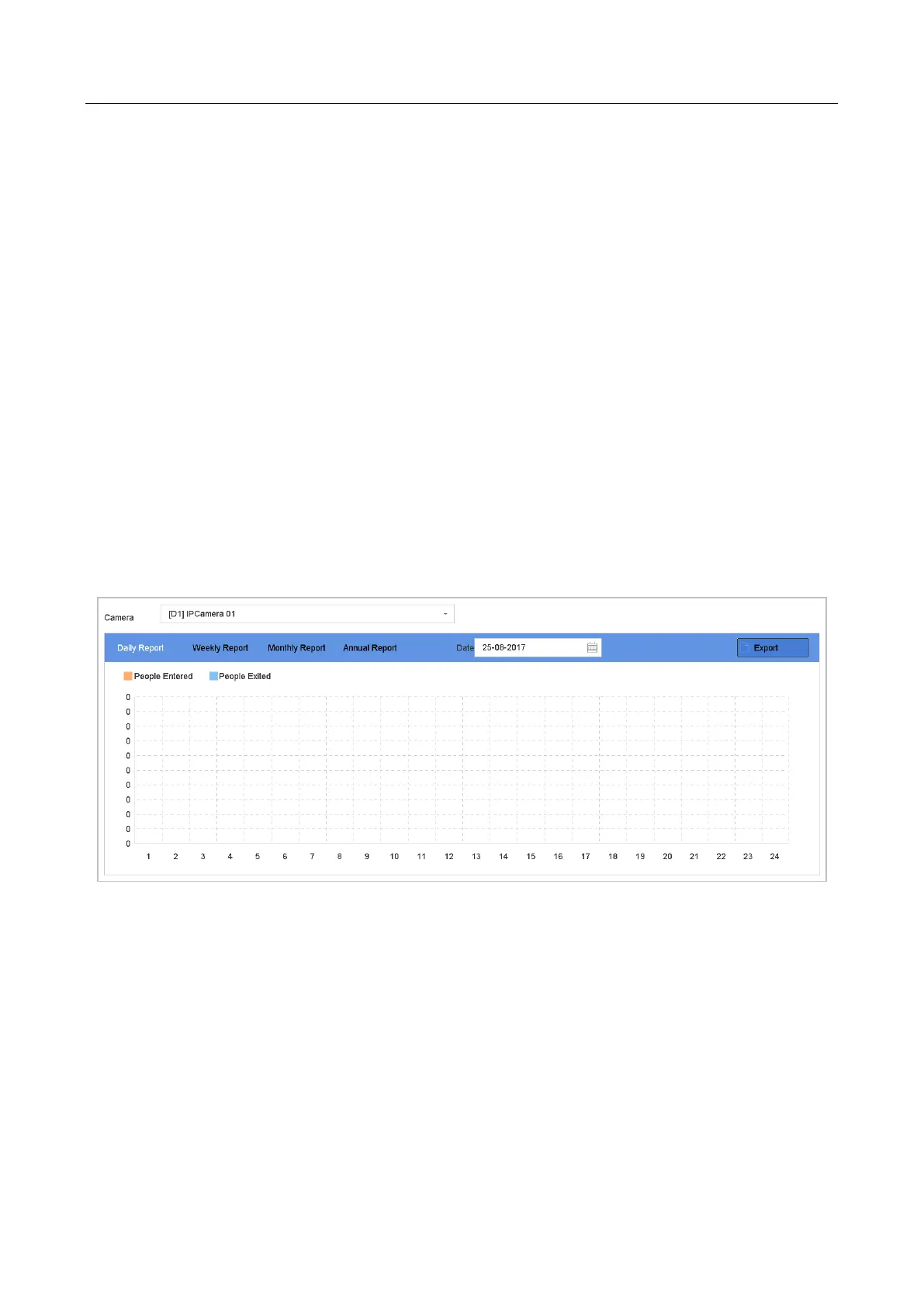

Figure 13-1 People Counting Interface
Step 5 (Optional) Click Export to export the report in Microsoft Excel format.
13.2 Heat Map
Purpose
Heat Map is a graphical representation of data. The heat map function is used to analyze how
many people visited and stayed in a specific area.
