HIMA H41q - Page 143

To Next Page

To Previous Page

B 9302 (0507)

137

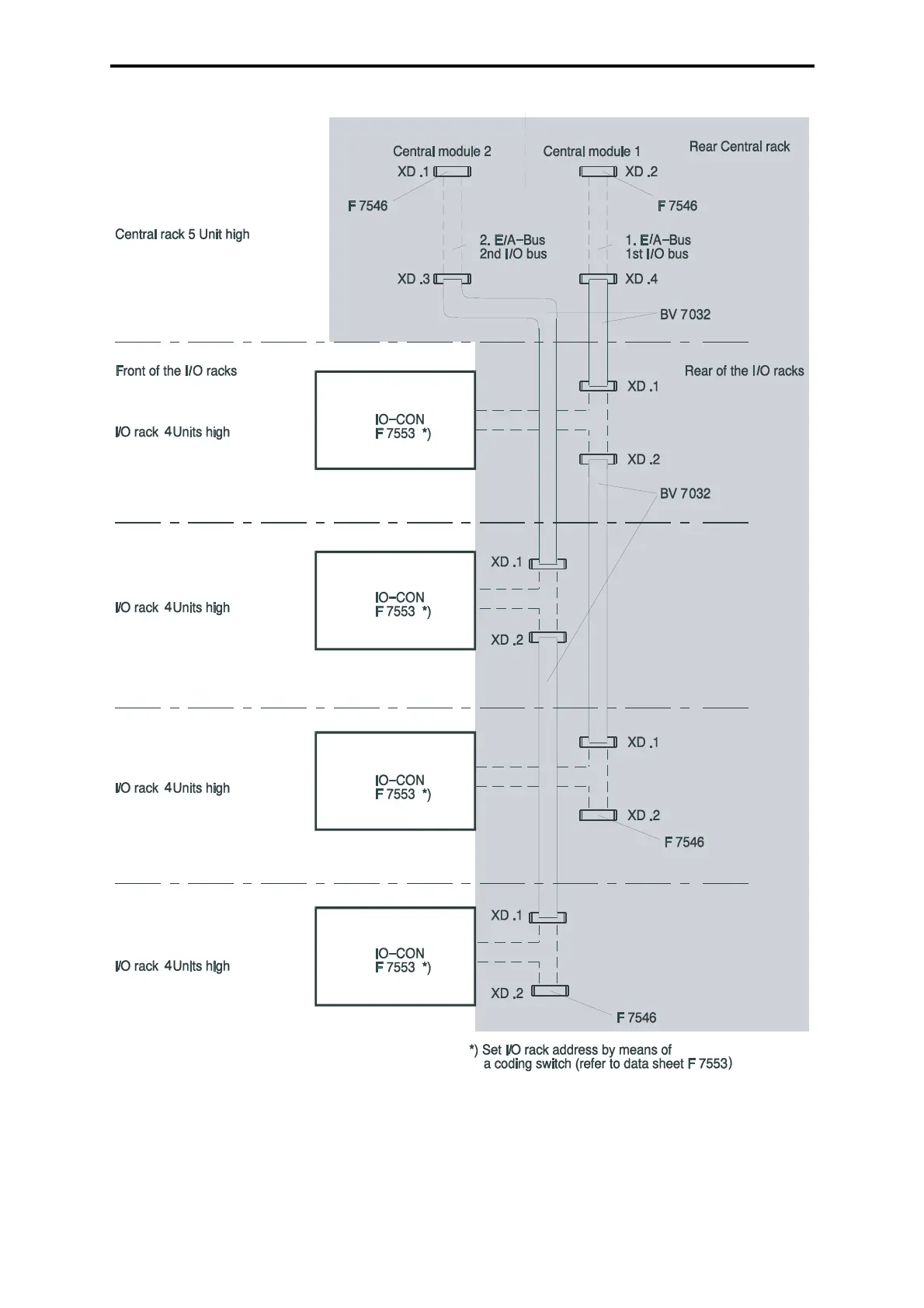

Figure 3: Wiring of the redundant I/O bus

max. length of I/O bus: 12 m

max. length cable BV 7032: 5 m

To 1st I/O bus

To 2nd I/O bus

To 1st I/O bus

To 2nd I/O bus
