HIMA H41q User Manual

F 8627X (0650)
374
6.3 Ethernet possible connections

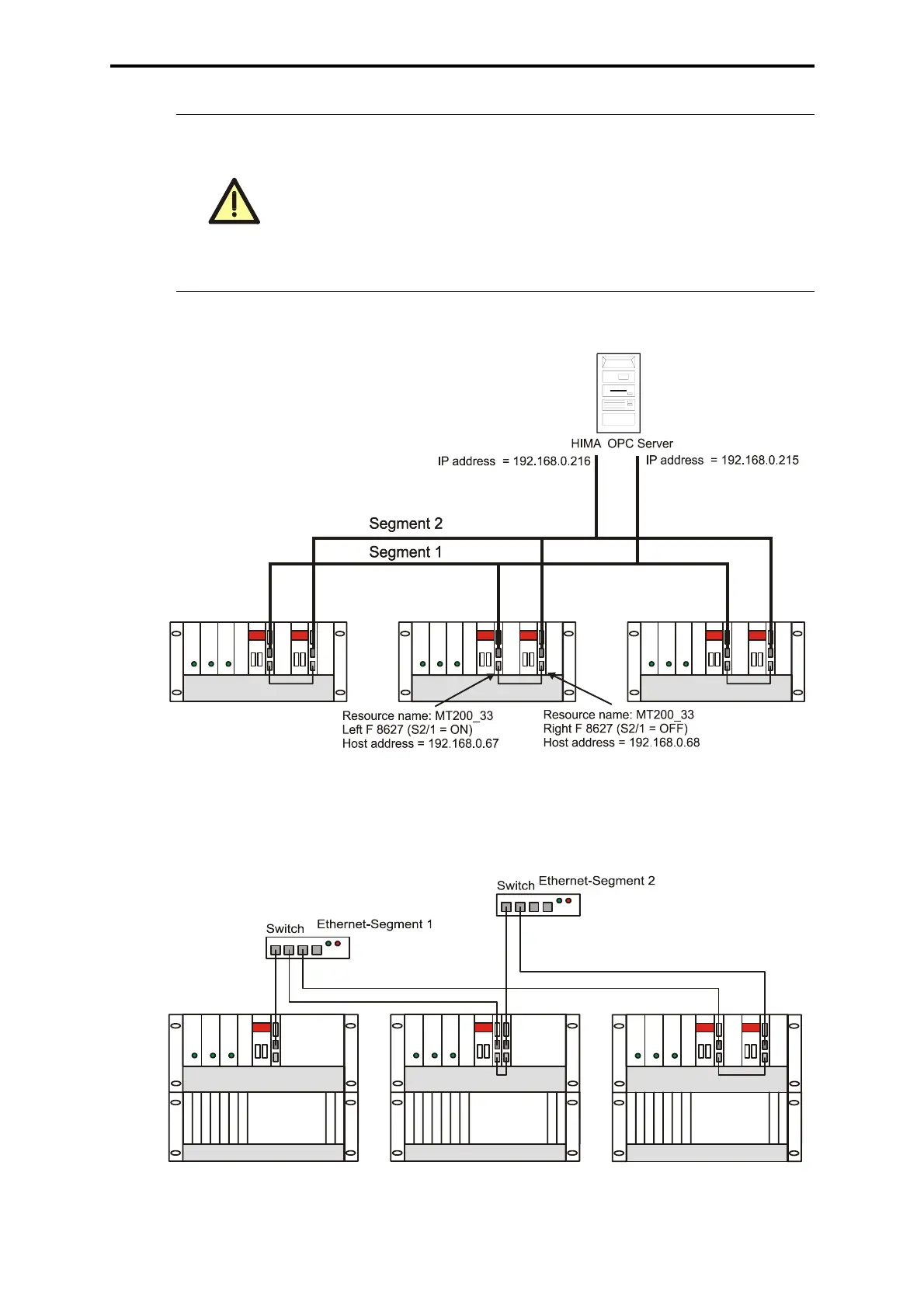

Figure 5: Redundant connection via 2 segments
For a "truly" redundant connection, an own network segment is required for each channel. All
F 8625/27 (and PC network cards) with odd IP addresses (e.g. 192.168.0.67) must be at-
tached to segment 1 and all F 8625/27 with even IP addresses to segment 2 (see Chapter 5.1).
Figure 6: Possible PES connections
All connected Ethernet components must meet the requirements spec-
ified in the application guidelines!
The Ethernet segments may always have a redundant structure. If a
HIPRO-S is used, the HSR cable BV 7053 must be plugged in
between the redundant communication modules F 8627X (via HSR
interface).
The HSR cable BV 7053 is also required for the redundant MODBUS
TCP and ELOP II TCP connection (see chapter 5.2).
