F 8627X (0650)
396
On
Off
On
Off
On
Off
On
Off
On
Off
On
Off
On
Off
On
ff
6.9.1.3 Benefits of passive mode
• If safety-related communication will not be performed via the F 8627X, then safety-
related dummy variables need not be defined between the PES during configura-
tion.
• It is now possible to have simultaneously a safety-related communication (via AG
master F 8621A or a second F 8625/27) and non safety-related communication to a
HIMA OPC server in one PES since no more dummy variables are needed for com-
municating with the HIMA OPC server.
• An overload of the PC running the HIMA OPC server can be prevented in cases in
which the number of available communication partners is too small (e.g. due to fre-
quent token holding caused by the short token cycle).
6.9.1.4 Numbers of HIMA OPC server and determination of the node Id
• HIPRO-S mode (S1/7 "OFF"): Fixed to four HIMA OPC servers.
Node Ids of the HIMA OPC servers are 107 to 110.
• HIPRO-S-DIRECT mode (S1/7 "ON"):
Switches 2/6-8 set the number of HIMA OPC servers with which the F 8627X can
exchange BUSCOM variables.
A range of node Id's is available for the number of HIMA OPC servers selected via
switch 2 (see Table 14).
• The Node Id is required for configuring the HIMA OPC server (see manual "HIMA
OPC server 3.0 Rev. 2").

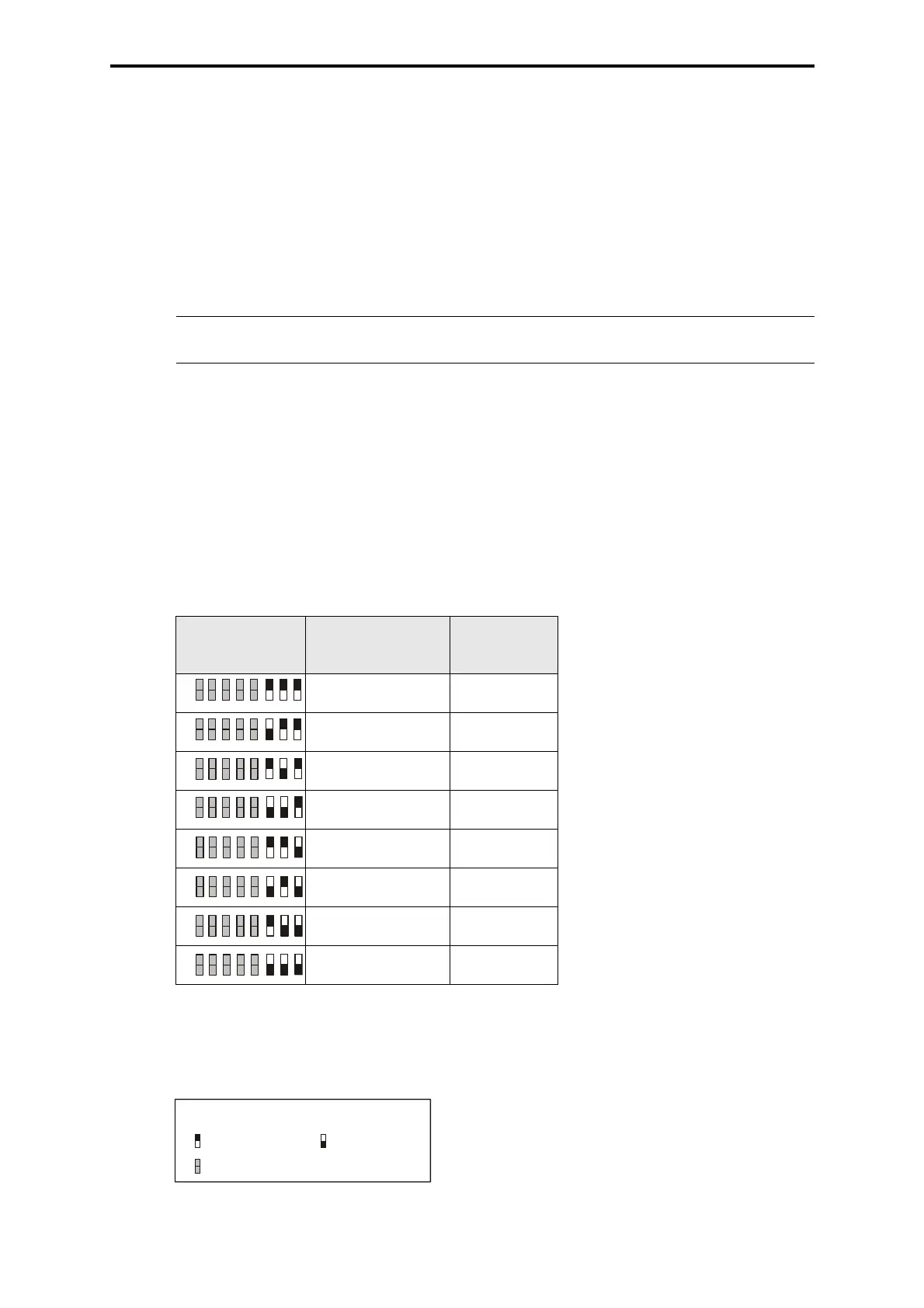

Table 14: Settings of switch 2 (S2)
Note Hubs may not be used in Passive mode. Switches are recommended.
Switch 2 Number of HIMA
OPC server
Node Id
0-
2 107 and 108
4 107 up to 110
6 107 up to 112
8 107 up to 114
10 107 up to 116
12 107 up to 118
14 107 up to 120
On
Off
On
Off
Positions white switch:
Legend
:
White switch in
position OFF
White switch in
position ON
Not used
switch
