H 7017 (0641)
486
Technical data
Shunt 250 Ω
Time constant of the filter
Ï„ = 300 ms
Operational limit 1.5 %
Ambient temperature 0...+60 °C
Degree of protection IP 00
Connections and cross sections
X1 Inputs Terminal row 8-pole, 2.5 mm
2
X2 Outputs Terminal row 8-pole, 2.5 mm
2

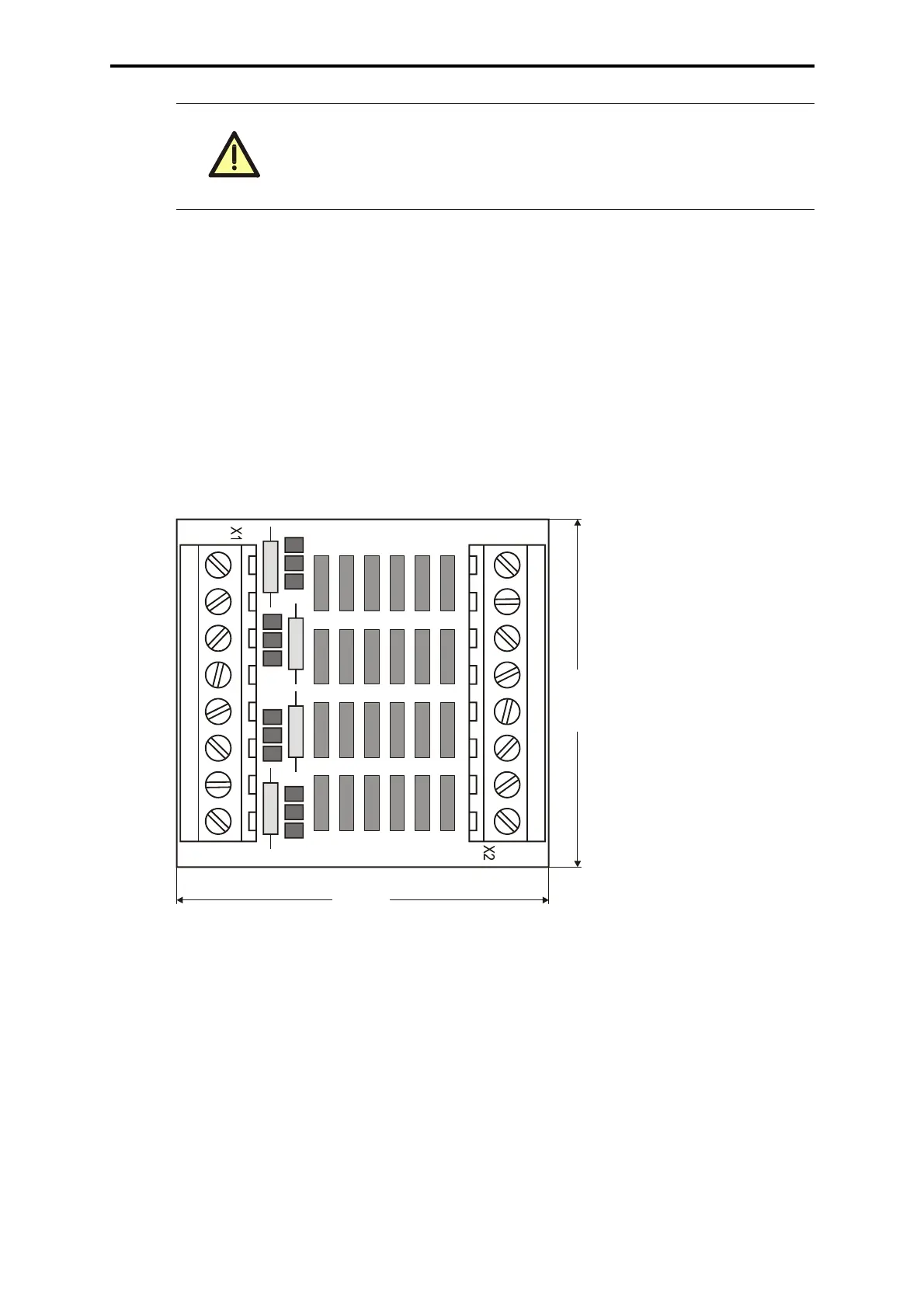

Mechanical design and dimensions of Terminal Module H 7017
Figure 2: Mechanical design and dimensions of Terminal Module H 7017
Depth 40 mm (including terminals)
Mounting on C rail or DIN rail 35 mm
Mounting position horizontal or vertical
Assembling distance not required
With use of the module the process signal can be delayed up to 3 sec-
onds.
In case of an error a reduction of the process signal must be consid-
ered.
1
2345678
1
2345678
mm
1 mm
