Application
Sensors with high dynamic signals can cause a channel fault in some cases.
The module H 7017 (with integrated shunt) is designed for filtering these interferences.
When using the module the cable plug Z 7127 / 6217 / C.. / I with unsoldered shunts (see Fig-
ure 3) or the cable plug Z 7128 / 6217 / C.. / ITI with unsoldered shunts (see Figure 4) has to
be used for the F 6217.

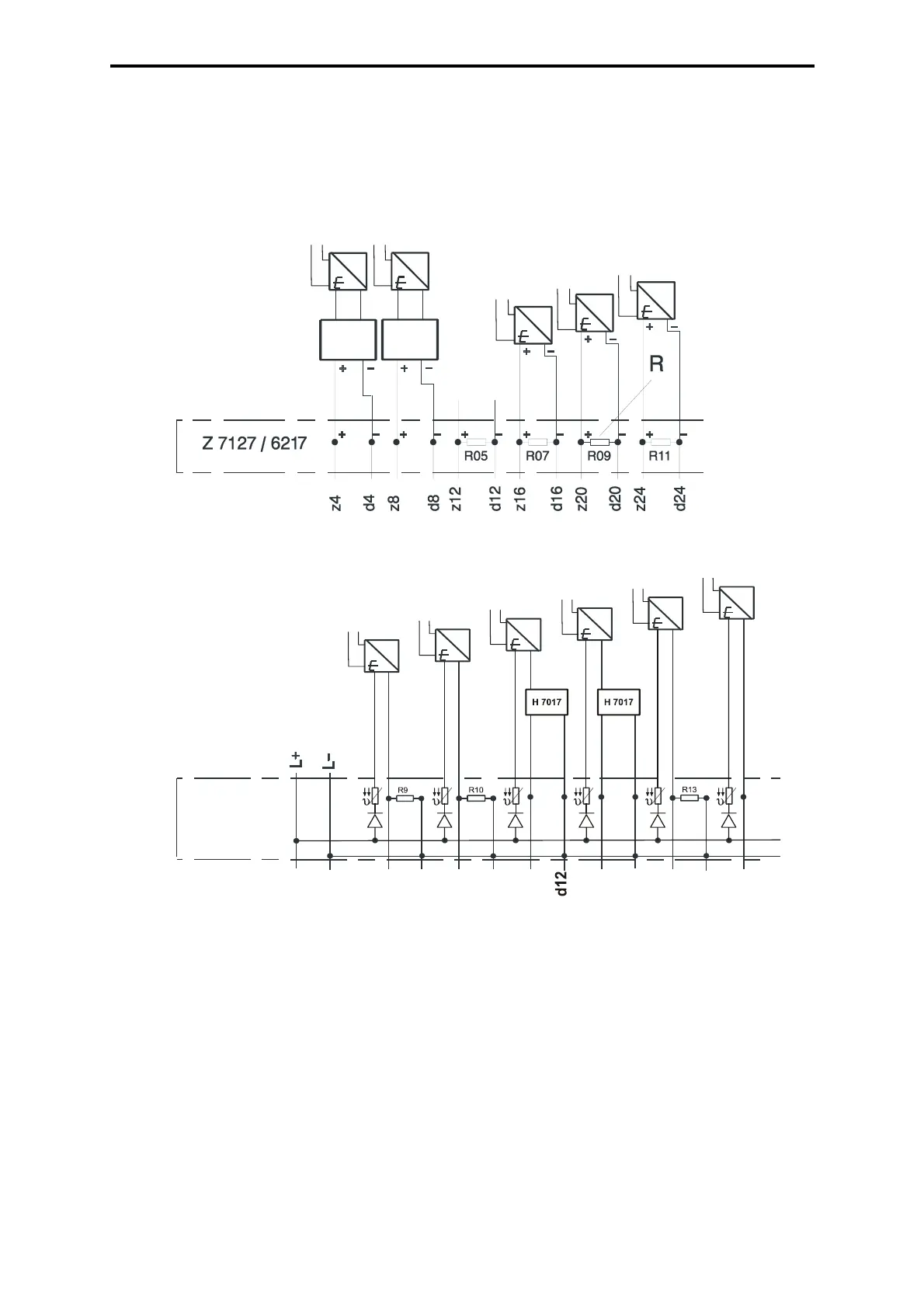

Figure 3: Application with cable plug Z 7127 / F 6217 with modules H 7017 instead of shunts
Figure 4: Application with cable plug Z 7128 / F 6217 with modules H 7017 instead of shunts
H 7017
H 7017
Z 7128/6217
d30 d26 z4
d4
z8
d8
x4
V1 V2
z4
z12
z16
d16
z20
d20
z24
x20 x24
R6
V3 V4 V5 V6
z16 z20 x16
R4 R5
z24 x8 z8 z12 x12
R1 R2 R3
+
–
+
–
+
–
+
–
+
+
–
+
–
+
–
+
–
+
–
+
–
+
–
