RS 485 PCI (0602)
All rights reserved. Equipment subject to change without notice: 511
HIMA Paul Hildebrandt GmbH + Co KG, P.O. Box 1261, 68777 Brühl
RS 485 PCI
RS 485 PCI: Interface card
RS 485 Interface extension card for personal computers

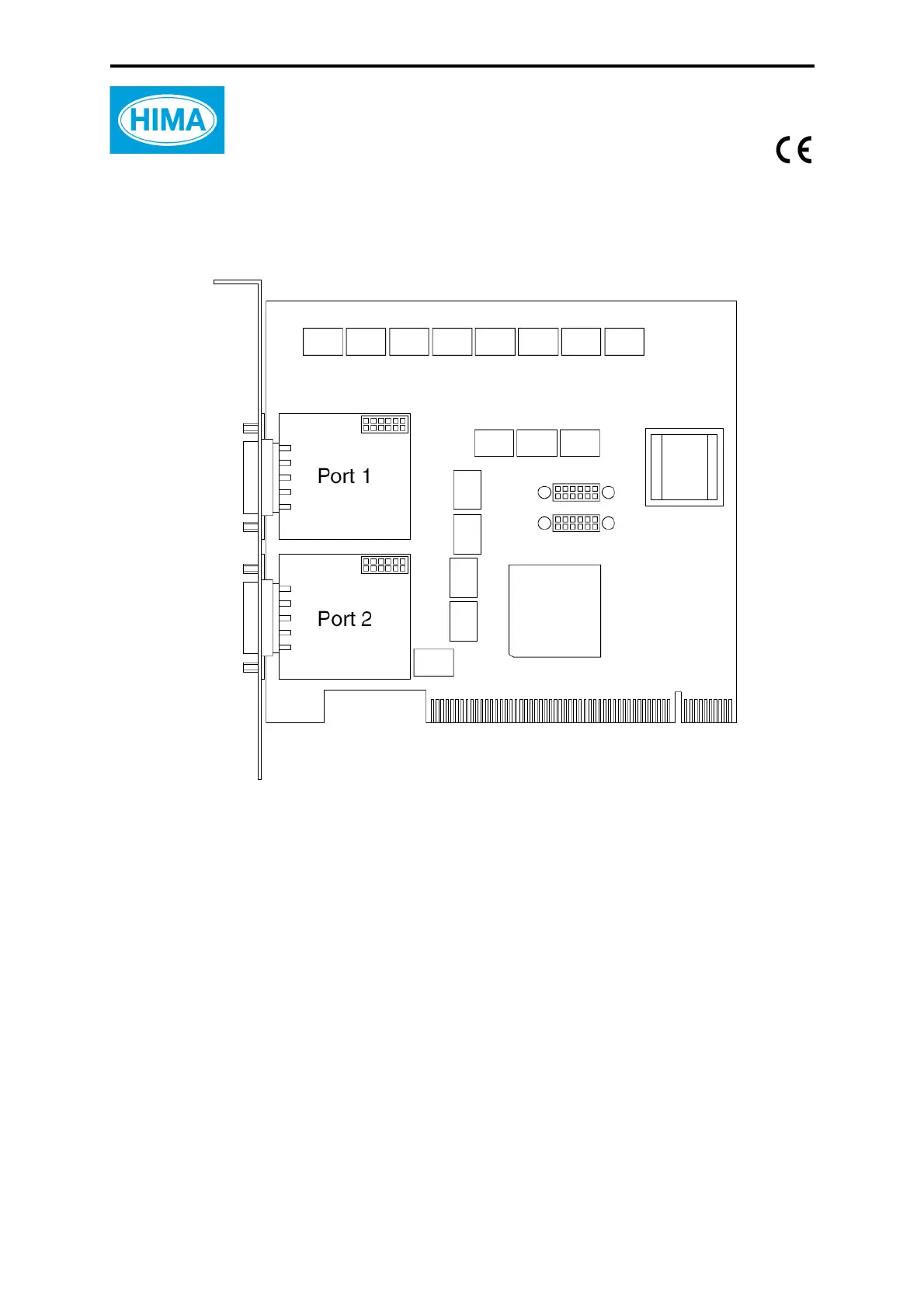

Figure 1: Side view
The card contains two independent RS 485 interfaces as an extension for a PC (PADT). The
interfaces are electrically isolated (also among themselves) and suitable to connect HIBUS-2
directly to programmer units and visualization stations.
Baud rate 9.6 to 57.6 kBaud
Data format any
Basis addresses automatic configuration
Interrupts automatic configuration
Isolation (electric isolation) > 1 kV
Connections 2 Sub-D plugs 9-pole
Operating data 5 V / 0.2 A
Dimensions 120 x 106 mm
Weight approx. 110 g
