Honeywell 5704

4-45
CHAPTER 4 - INSTALLATION INSTRUCTIONS
MAN0448_Issue 13_01-2010 5704 Control System
005704-M-5001 A03249

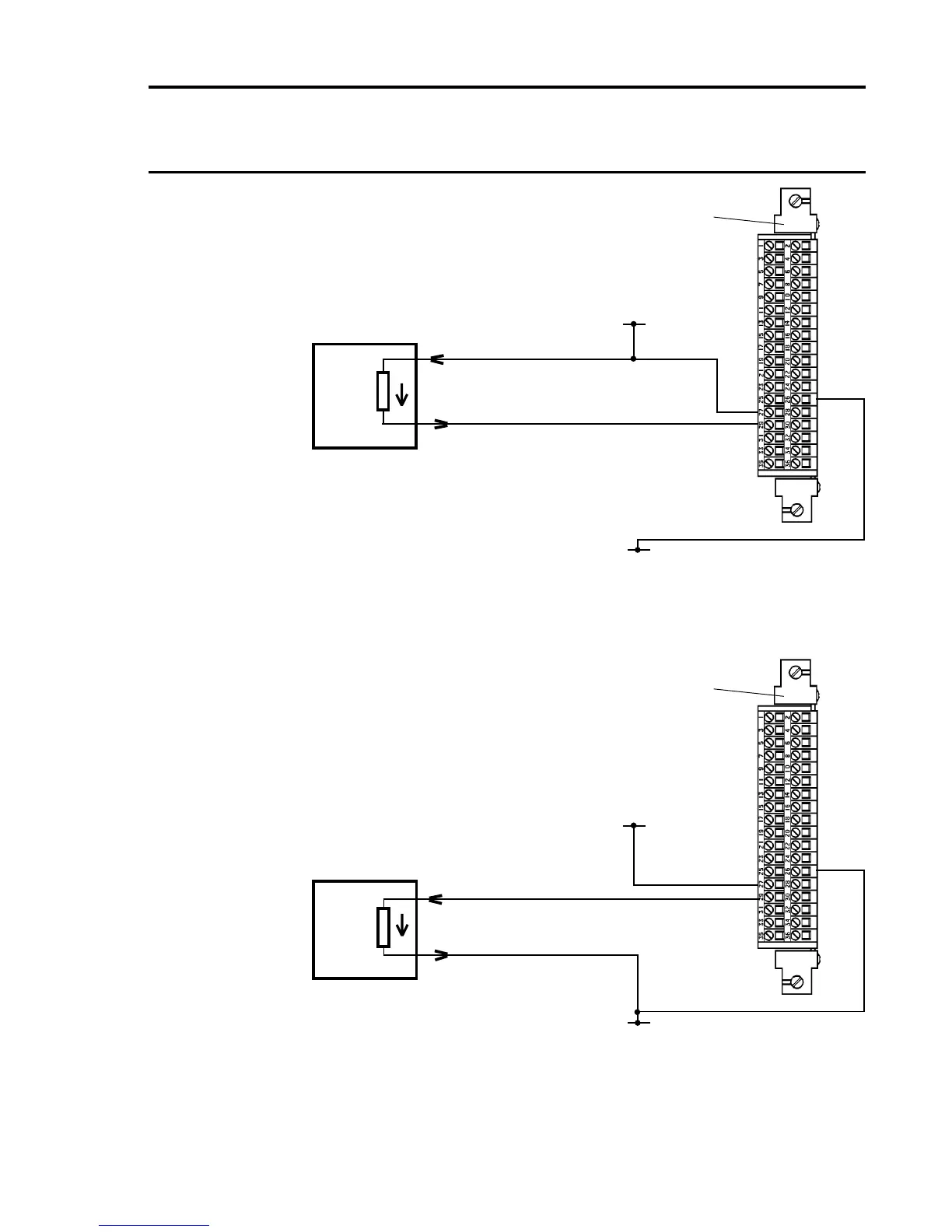

Non-isolated Analogue Output Connection with Power from
System 57 Using Source Module
Quad Relay Interface Card 05704-A-0121
Four Channel Control Card Fitted with:
Analogue Output Module (Sink) 04200-A-0145
Non-isolated Analogue Output Connection with Power from
System 57 Using Sink Module
Current
Sense
Analogue 24V
Quad Relay Interface Card 05704-A-0121
Four Channel Control Card Fitted with:
Analogue Output Module (Source) 04200-A-0146
27
29
28
Analogue Channel 1
Analogue 0V
+24V
(18V to 40V)
0V
Current
Sense
29
28
Analogue Channel 1
Analogue 0V
+24V
(18V to 40V)
0V
27
Anlogue 24V
