CHAPTER 4 - INSTALLATION INSTRUCTIONS

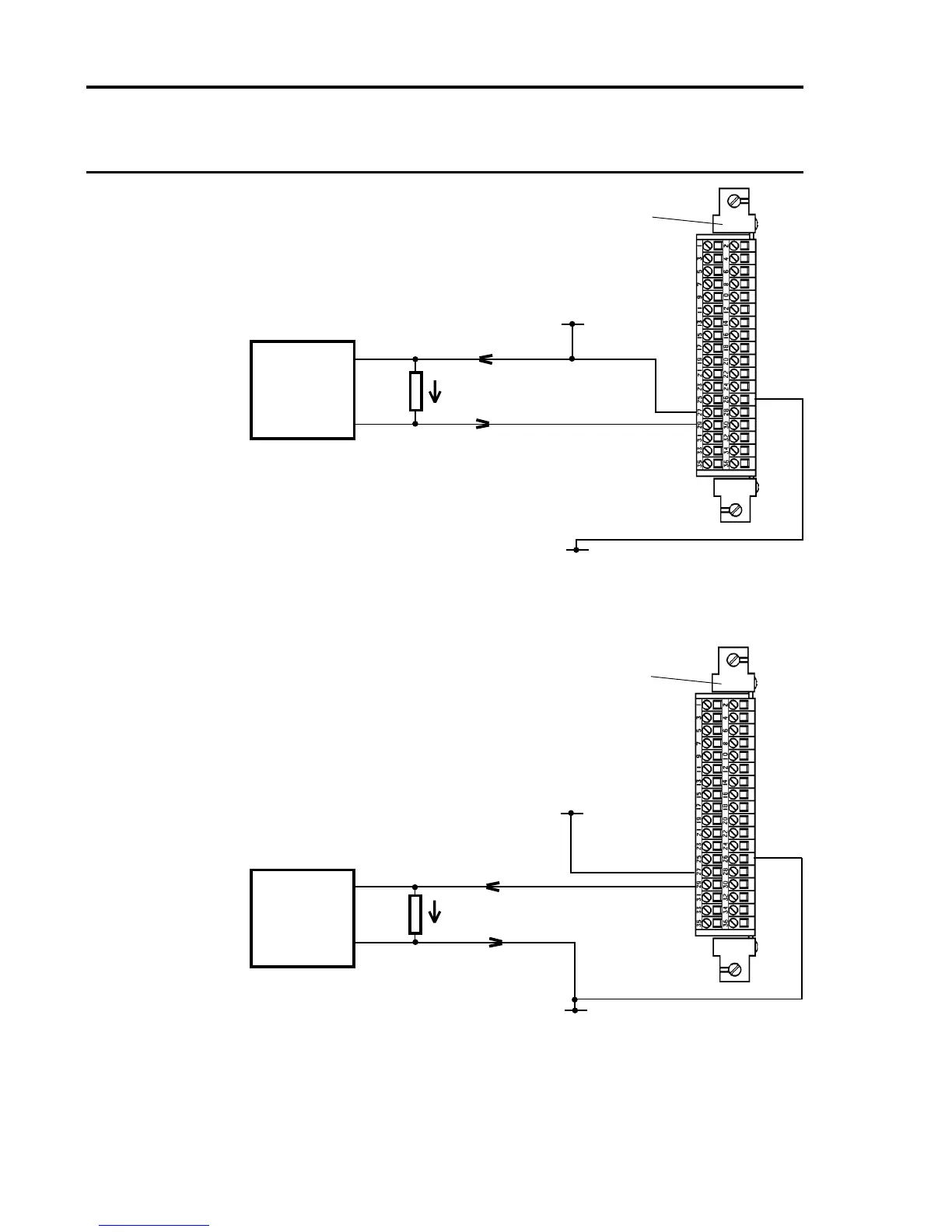

Analogue Output Connection with 100 Ohm Sense Resistor and
Parallel Chart Recorder Using Source Module
Quad Relay Interface Card 05704-A-0121
Four Channel Control Card Fitted with:
Analogue Output Module (Sink) 04200-A-0145
Analogue 24V
Quad Relay Interface Card 05704-A-0121
Four Channel Control Card Fitted with:
Analogue Output Module (Source) 04200-A-0146
27
29
28
Analogue Channel 1
Analogue 0V
+24V
(18V to 40V)
0V
Chart
Recorder
Input
R = 100
+
-
Analogue Output Connection with 100 Ohm Sense Resistor and
Parallel Chart Recorder Using Sink Module
Chart
Recorder
Input
R = 100
+
-
29
28
Analogue Channel 1
Analogue 0V
+24V
(18V to 40V)
0V
27
Anlogue 24V
