PROCESS INFORMATION DISPLAYS
6510020335
113

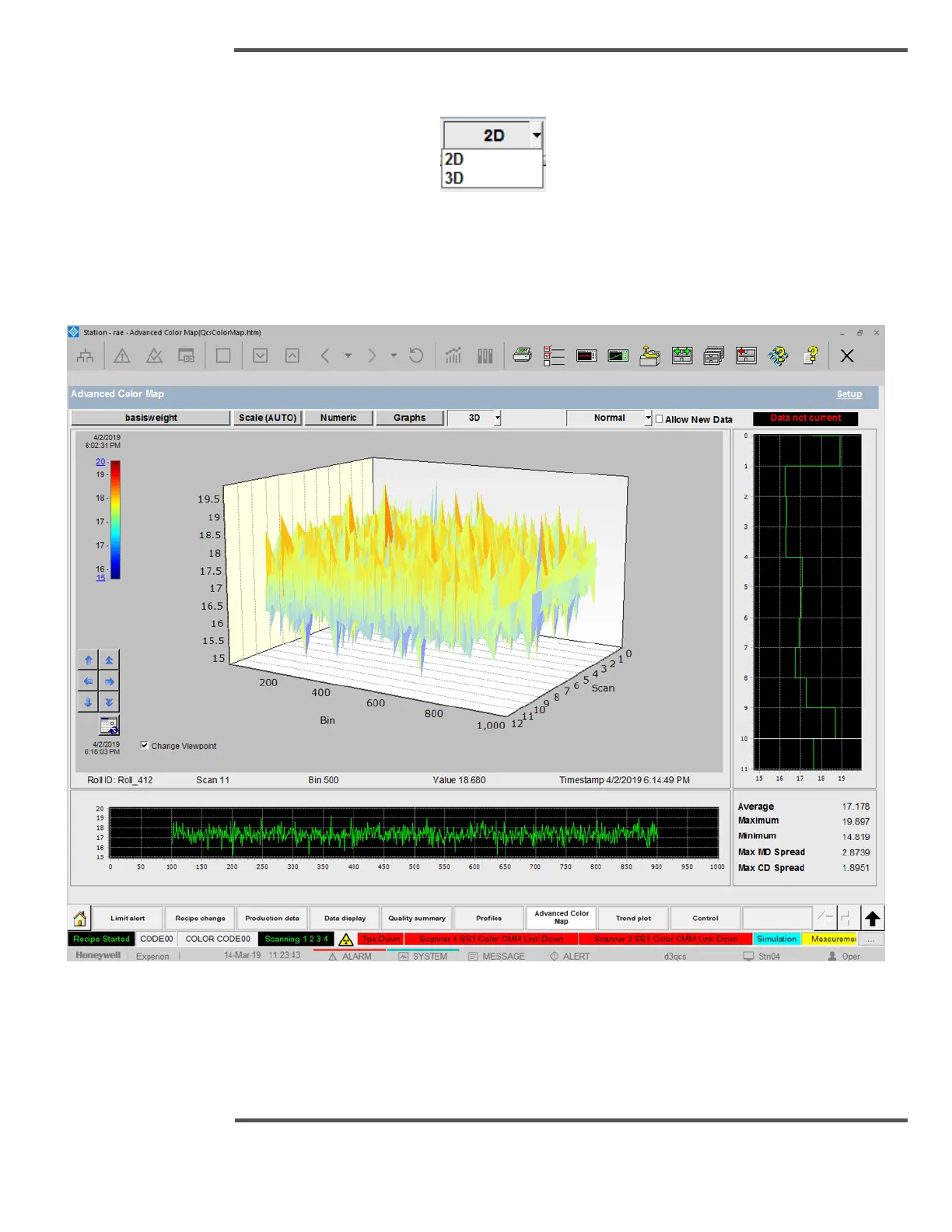

6.2.1 2D/3D Selection Dropdown
2D / 3D selection dropdown defines how values are rendered to the color
grid.
When 2D is selected, then color grid shows the values in 2-dimensional plot area. Refer to
Figure 95.
When 3D is selected, then values are shown as a waterfall. Refer to Figure 90.
Fig. 90. 3D - Advanced Color Map
The checkbox “Change viewpoint” at the bottom of the 3D view allows the 3D view to be
rotated by clicking and dragging the mouse in the preferred direction.
