Honeywell Experion MX User Manual

PROCESS INFORMATION DISPLAYS
6510020335
127
A pop-up dialog box appears.
6. Highlight the array type required.
7. Select the type of data by clicking on the Select Type area.
A pop-up dialog box appears.
8. Highlight the type of data you require. There are several types.
9. When the selection has been made, click OK to activate.
6.6.2 Profile Status
The profile status is indicated in one of three ways, refer to the Table 7 to understand the
profile status indicators.
Table 7: Profile Status Indicators
Indicator
Description
Indicates the data is both within limits and is not stale.
Indicates the scanner has not yet scanned sufficient scans,
usually two scans.
Indicates the data is either out of limits or is stale. Stale means
that the data has not been updated within the timeout period
defined by the setup display
6.6.3 Scale Button

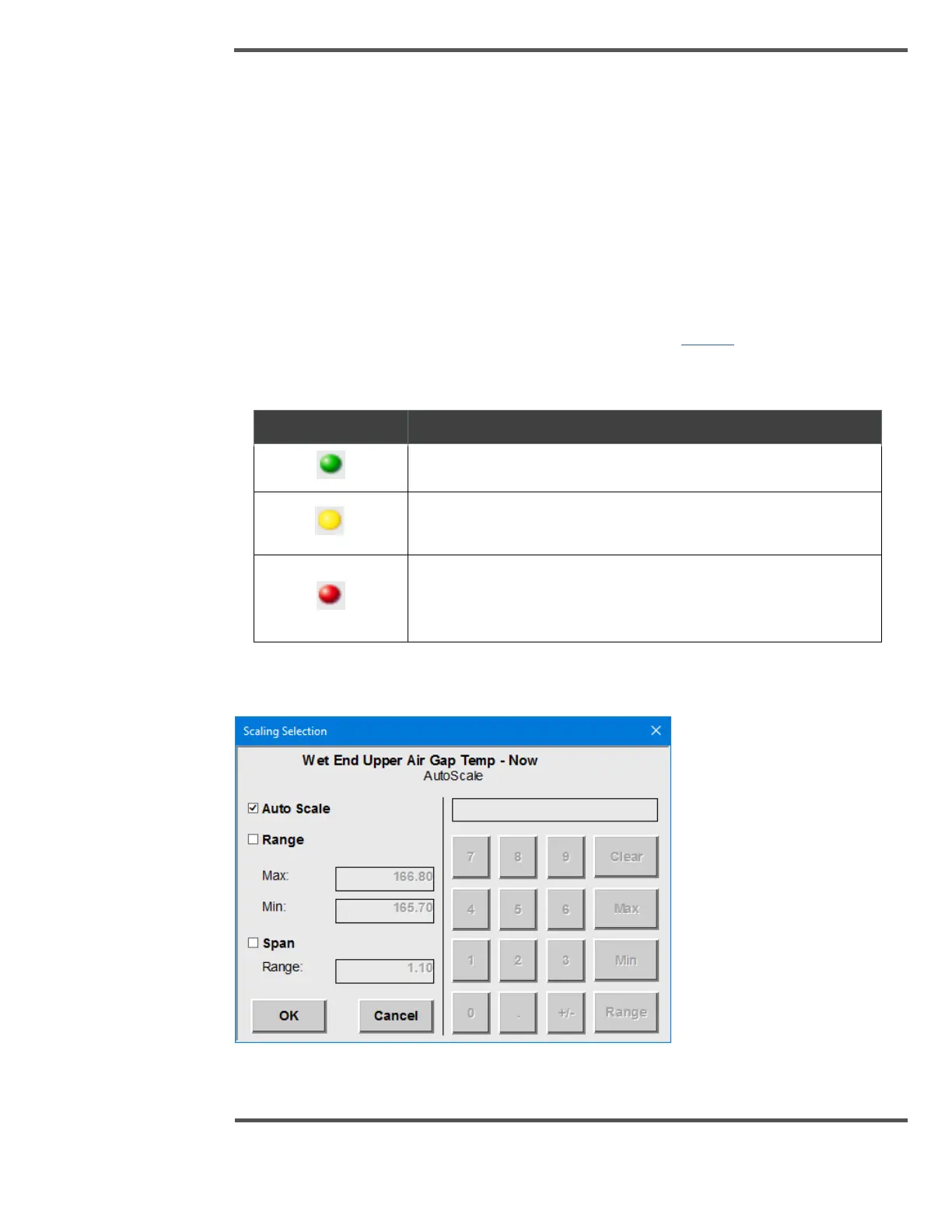

Fig. 108. Scale Button
