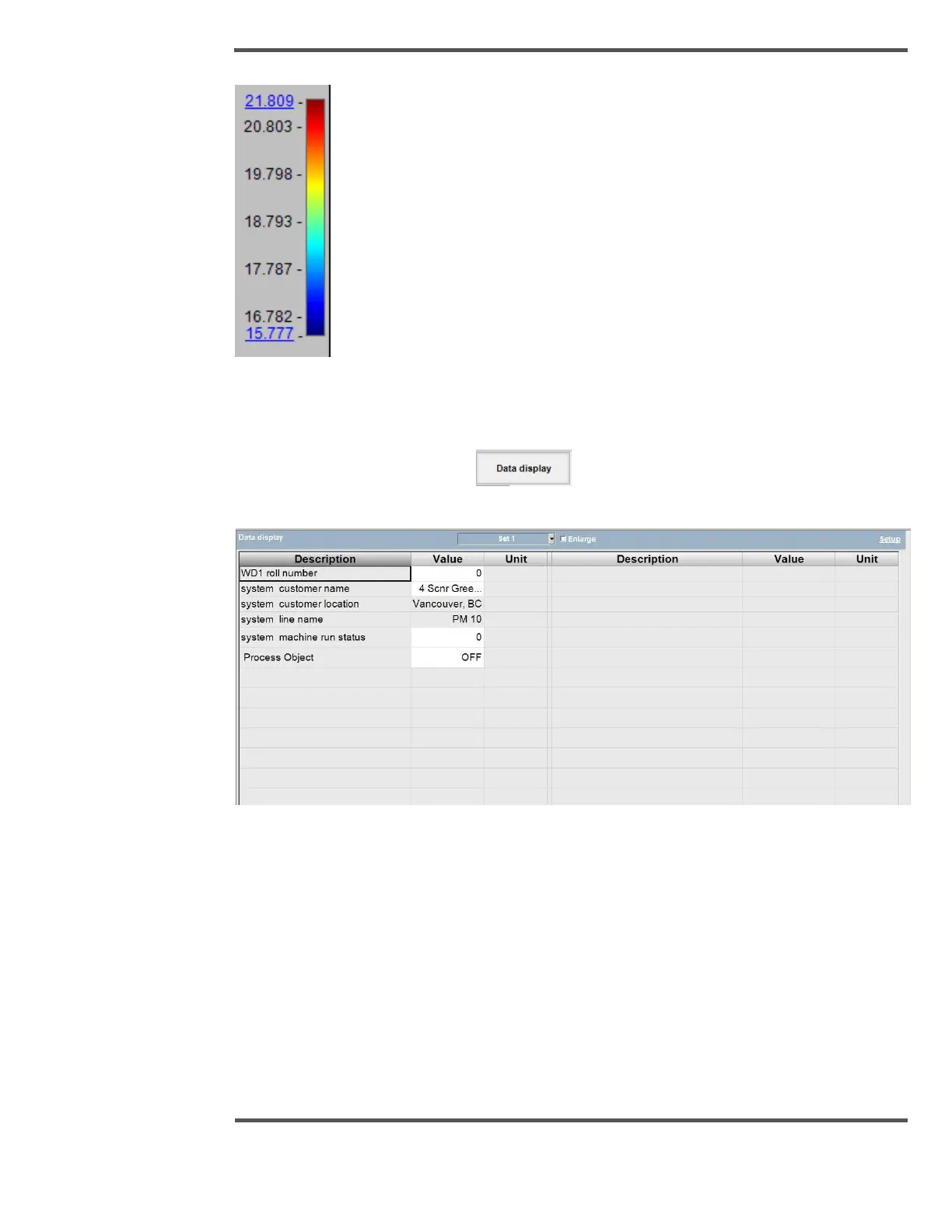

Fig. 95. Color Indicator
6.3 Data Display
When you press the Data display button on the Navigation Bar, the
following screen is displayed.
Fig. 96. Data Display
The Data Display is a simple display for viewing or changing system data. What data is
displayed on this screen is determined by what kind of system you have and how the
screen has been setup. If you are working as an Operator, you can only view the data that is
provided to you. This display has up to 40 items per set. Each set is subdivided into two
columns, and each column has three cells.
1. The first cell contains the variable name which is configured through the setup
popup.
2. The second cell contains the value for that variable, and the data type of the value
field may be Alphanumeric, Numeric or Boolean depending upon the variable name
